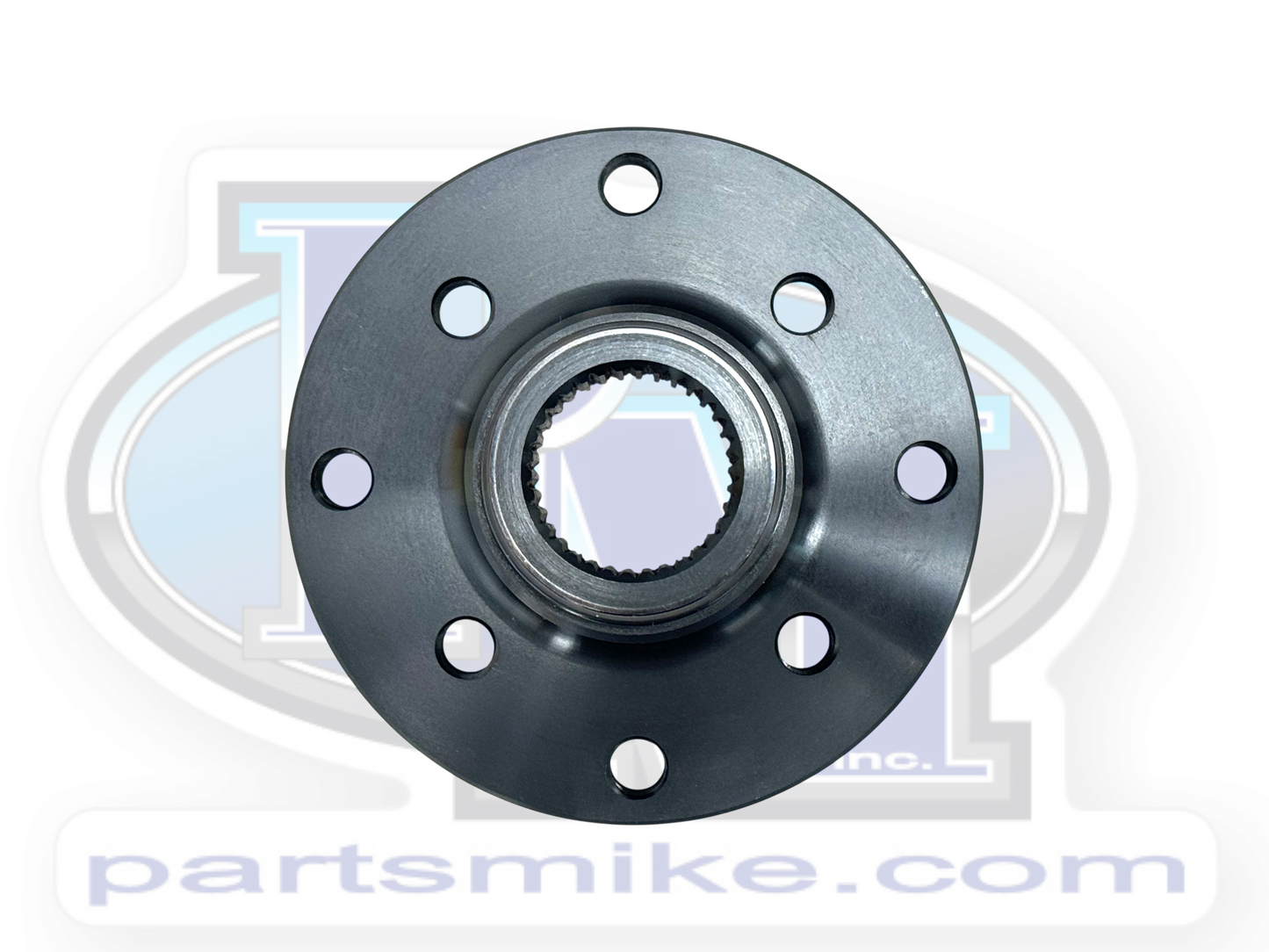

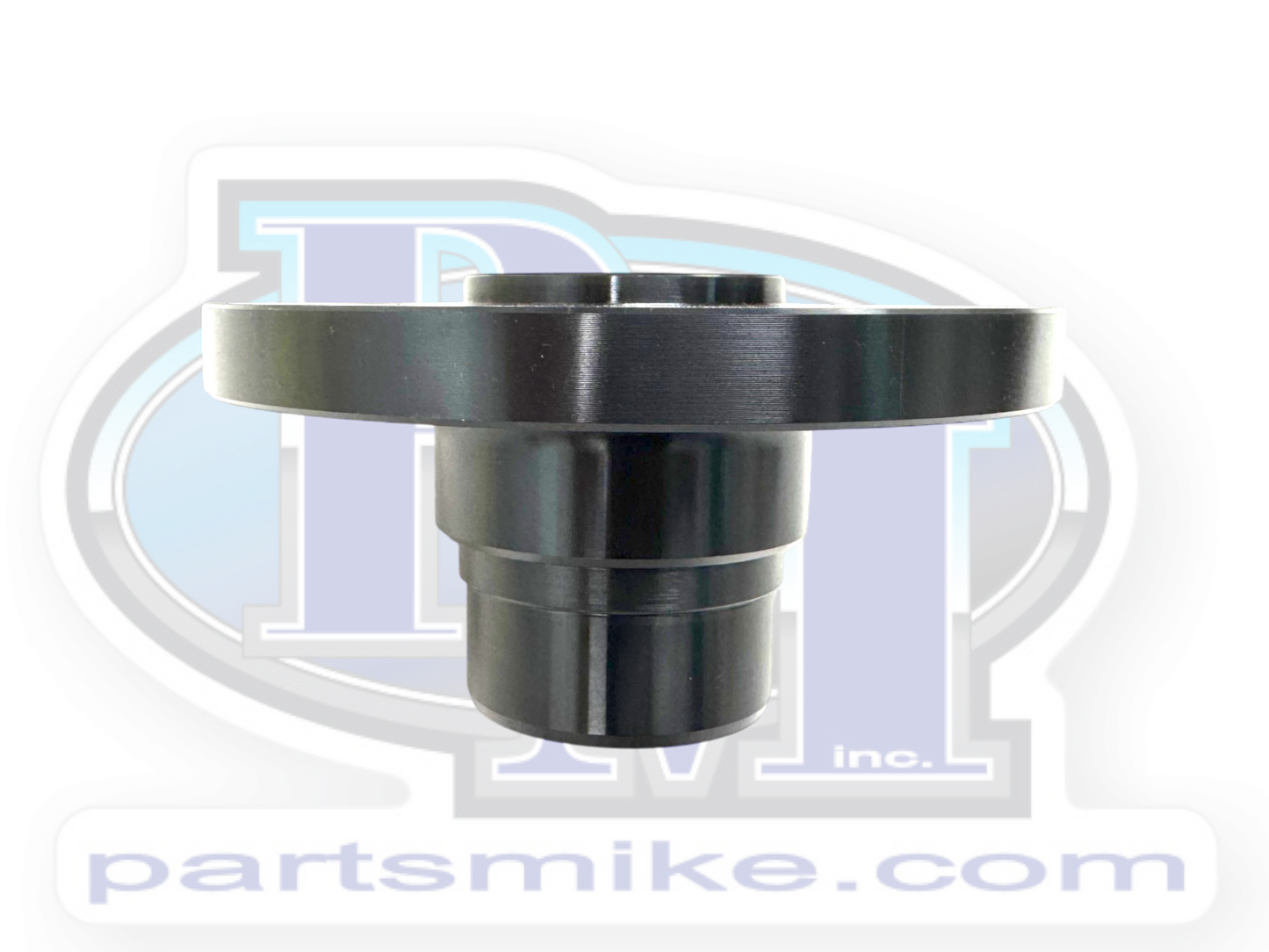

Transfer Case Companion Flange, 34 Spline, New Ford Bronco 2021 and Up with AWD T- Case, (PM3111-FBTC-34)

Transfer Case Companion Flange, 34-Spline – New Ford Bronco 2021 and Up with AWD Transfer Case.

Designed specifically for the 2021-Up Ford Bronco with AWD transfer case, this 34-spline transfer case companion flange provides a strong, reliable connection point for custom driveshaft applications. Precision-machined for proper spline engagement and optimal fitment, it ensures smooth power transfer and long-term durability.

Ideal for drivetrain upgrades, custom shaft builds, or high-performance applications where a secure and accurate flange connection is critical.

Dimensions

A: Pilot Diameter: 1.811" / 46.00mm

B: Seal Surface: 1.967" / 49.98mm

C: Through Hole: 2.531" / 64.30mm

D: End of Flange Face to end of Seal Surface: 2.531" / 64.30mm

Flange Face Outside Diameter: 5.100" / 129.54mm

Flange Face Thickness: .523" / 13.30mm

Spline Major Diameter: 1.527" / 38.80mm

Counter Bore: 1.317" / 33.47mm

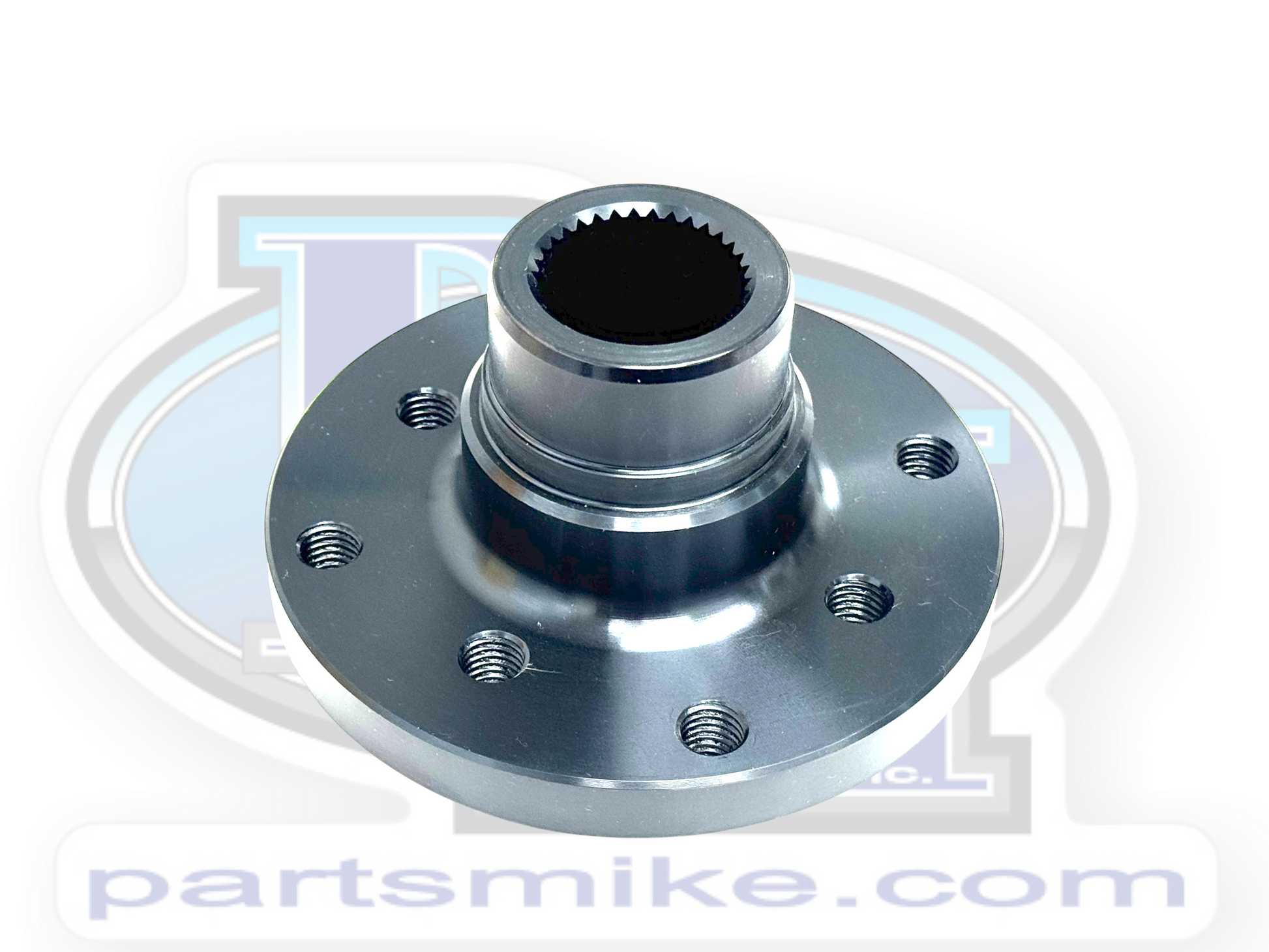

Splines: 34

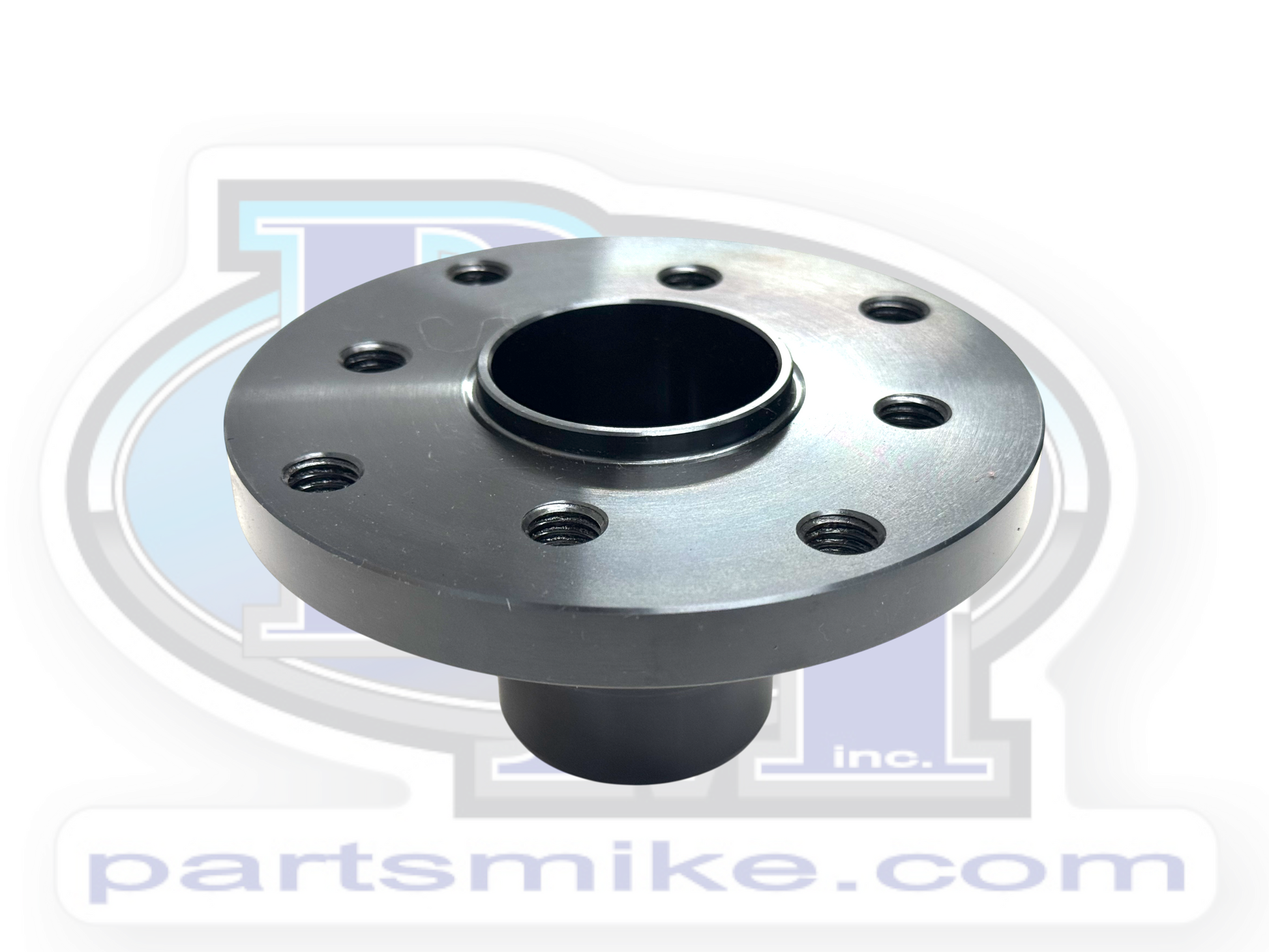

Total Bolt Holes: 8

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

3.50" Center to Center (4 Holes - 12mm x 1.75 tpi.)

Pattern 2:

4.25" Center to Center (4 Holes - 12mm x 1.75 tpi.)

Qty. 1
