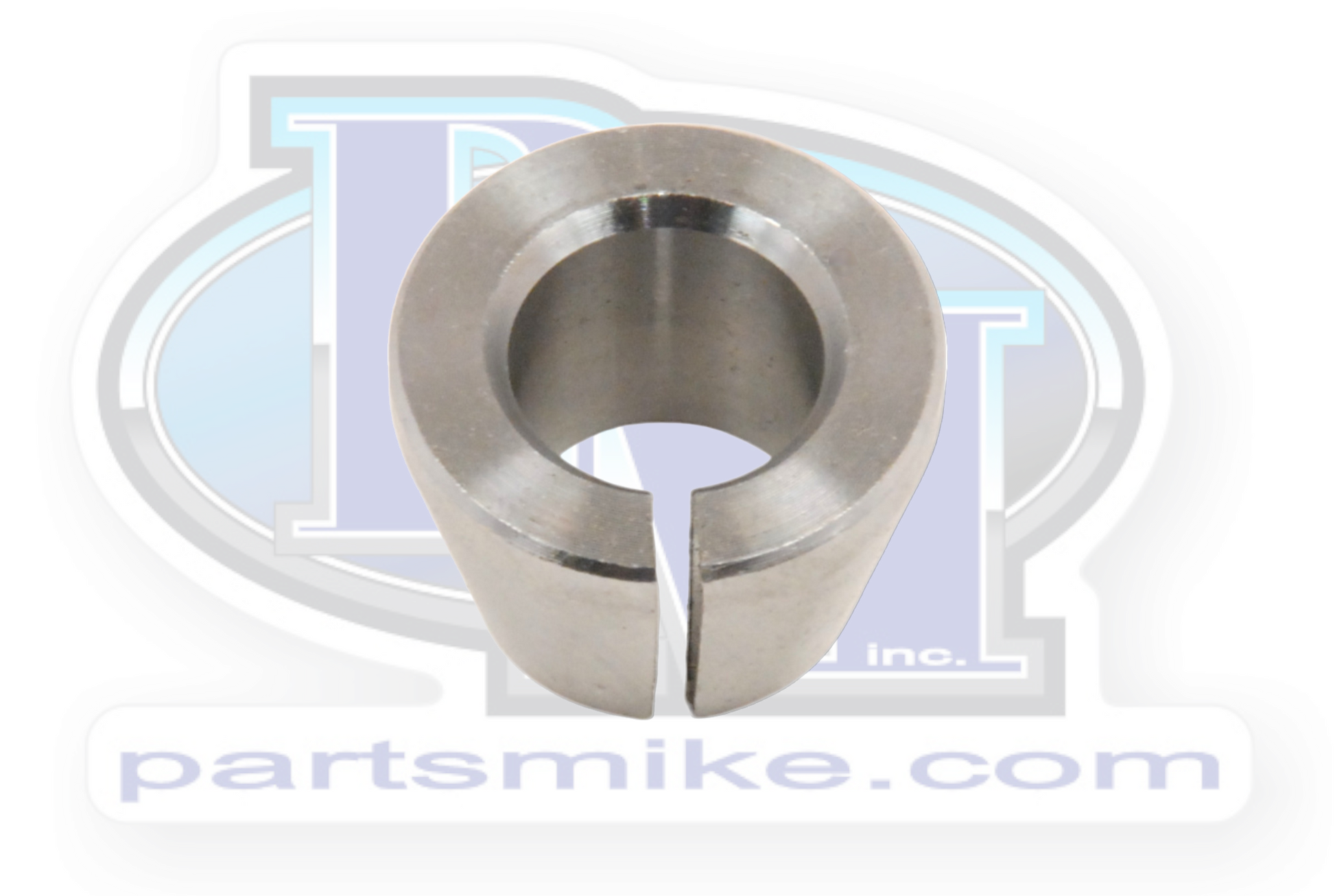

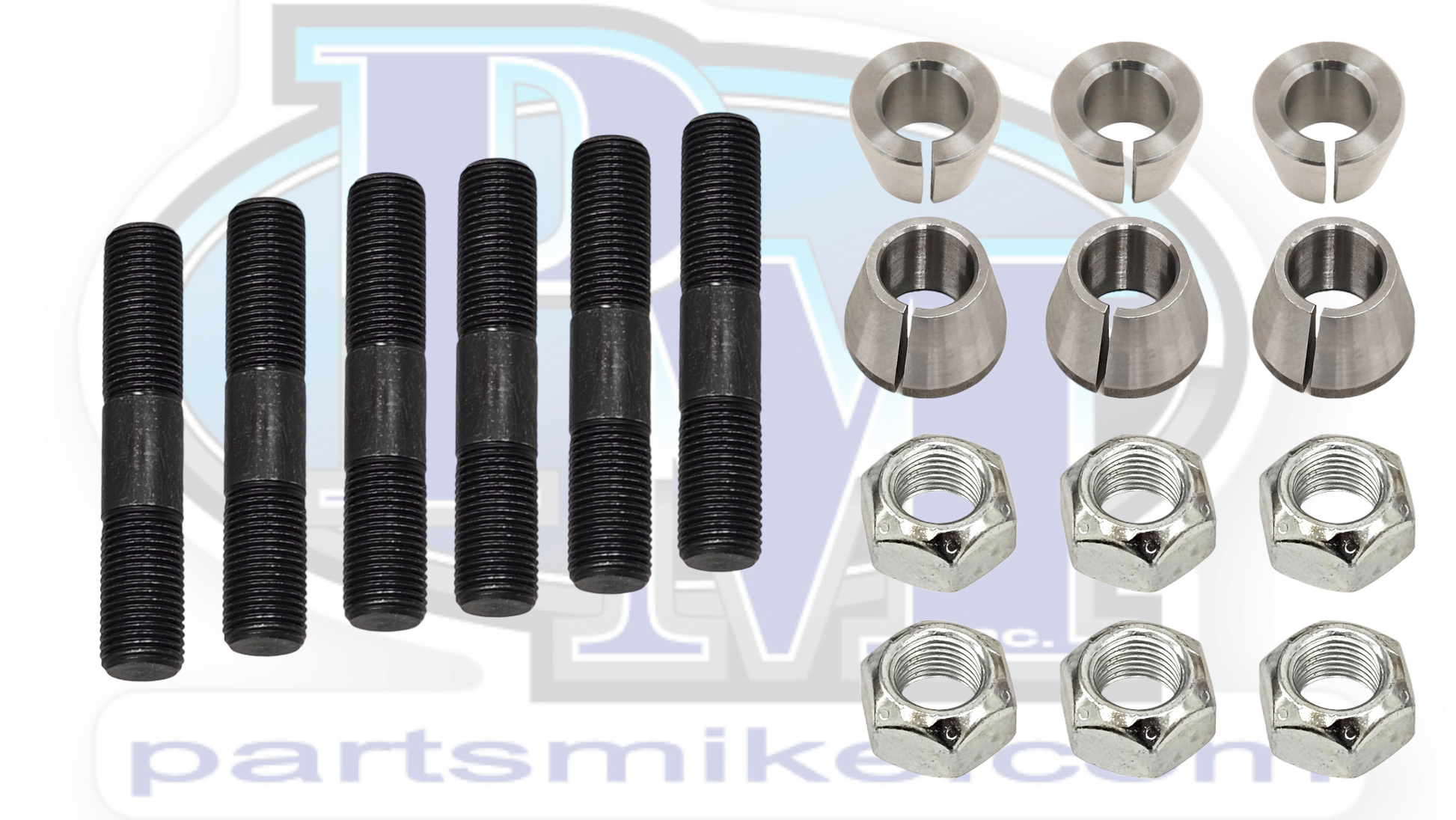

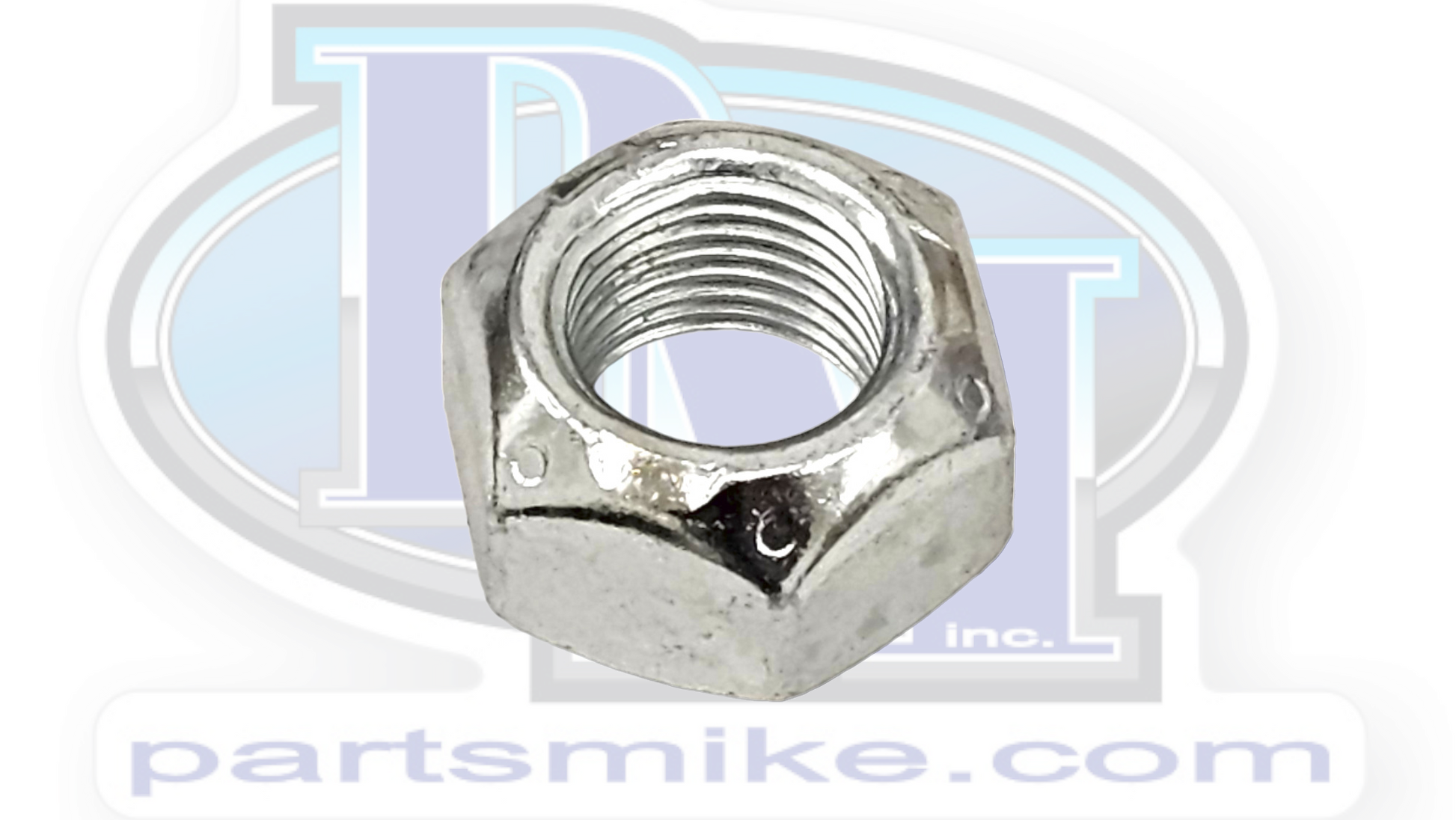

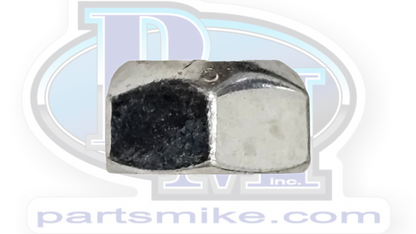

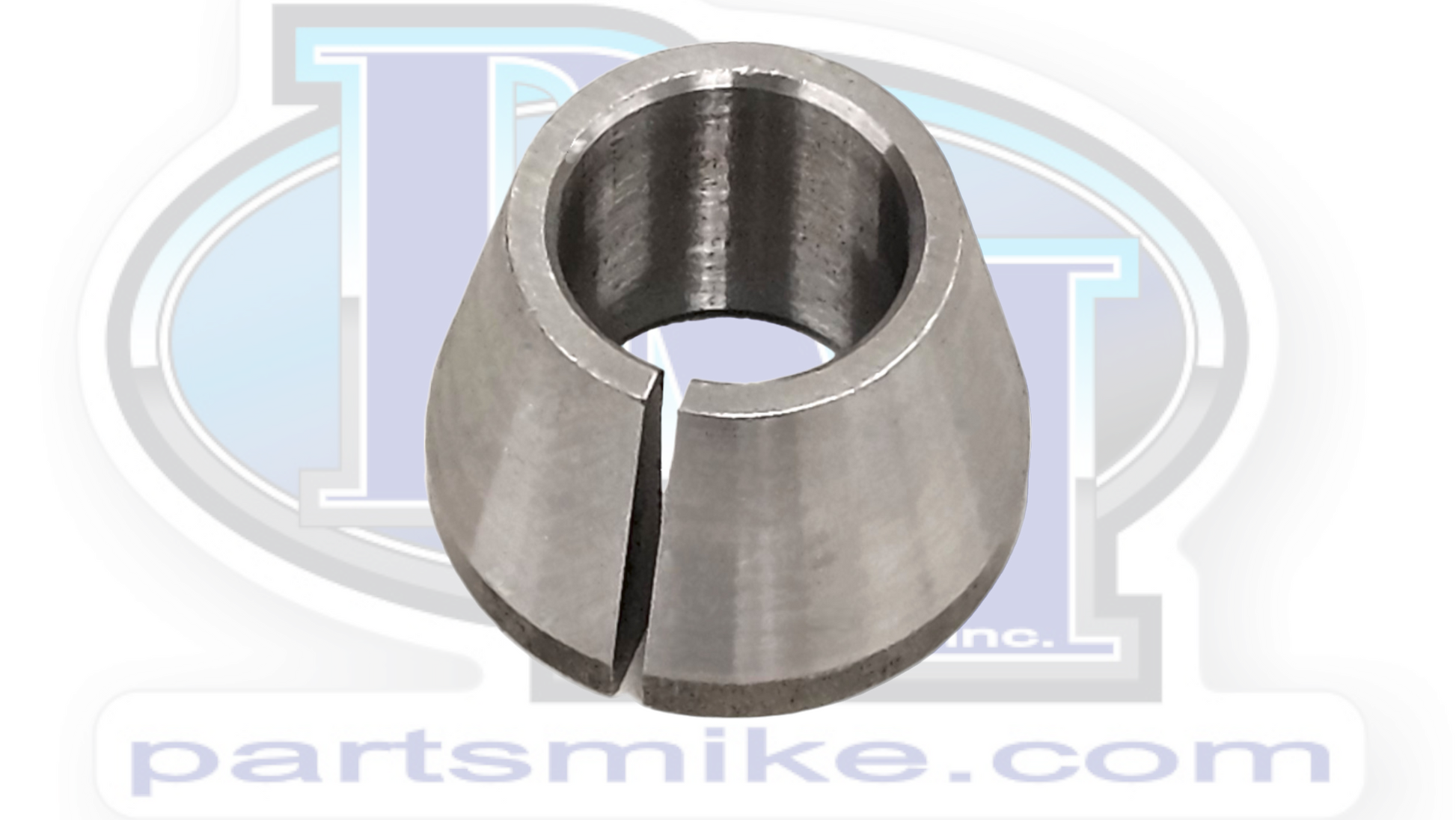

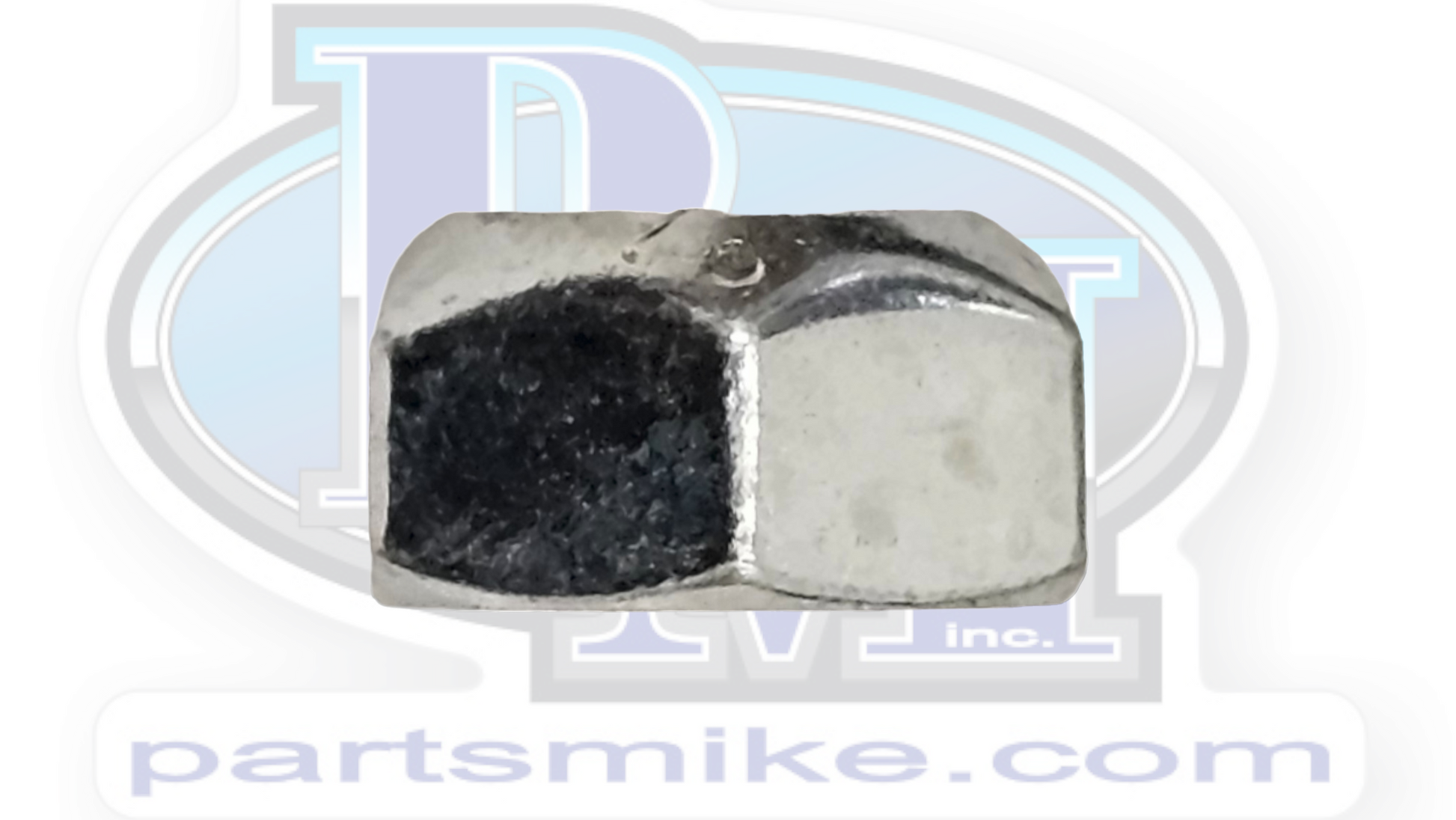

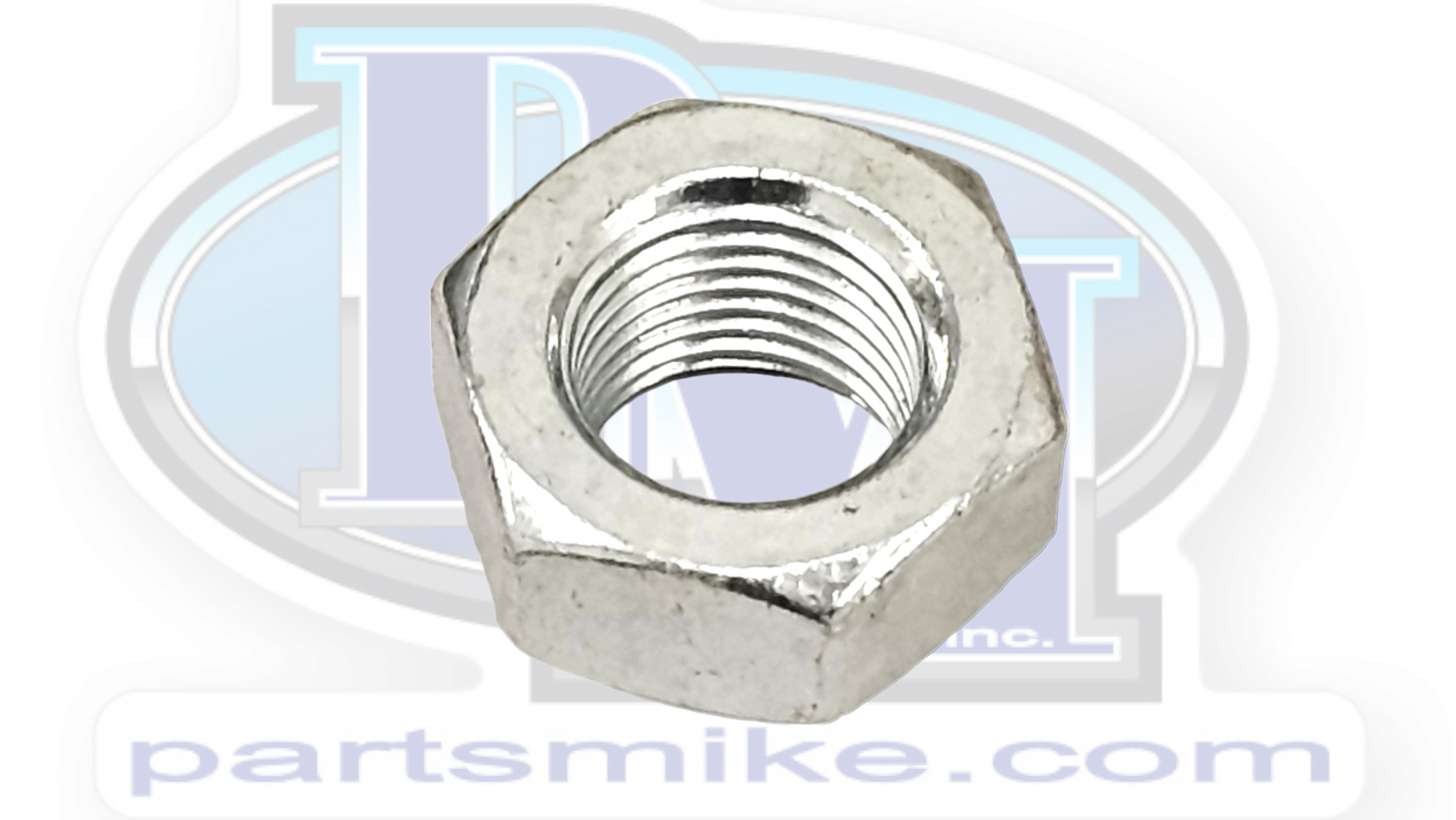

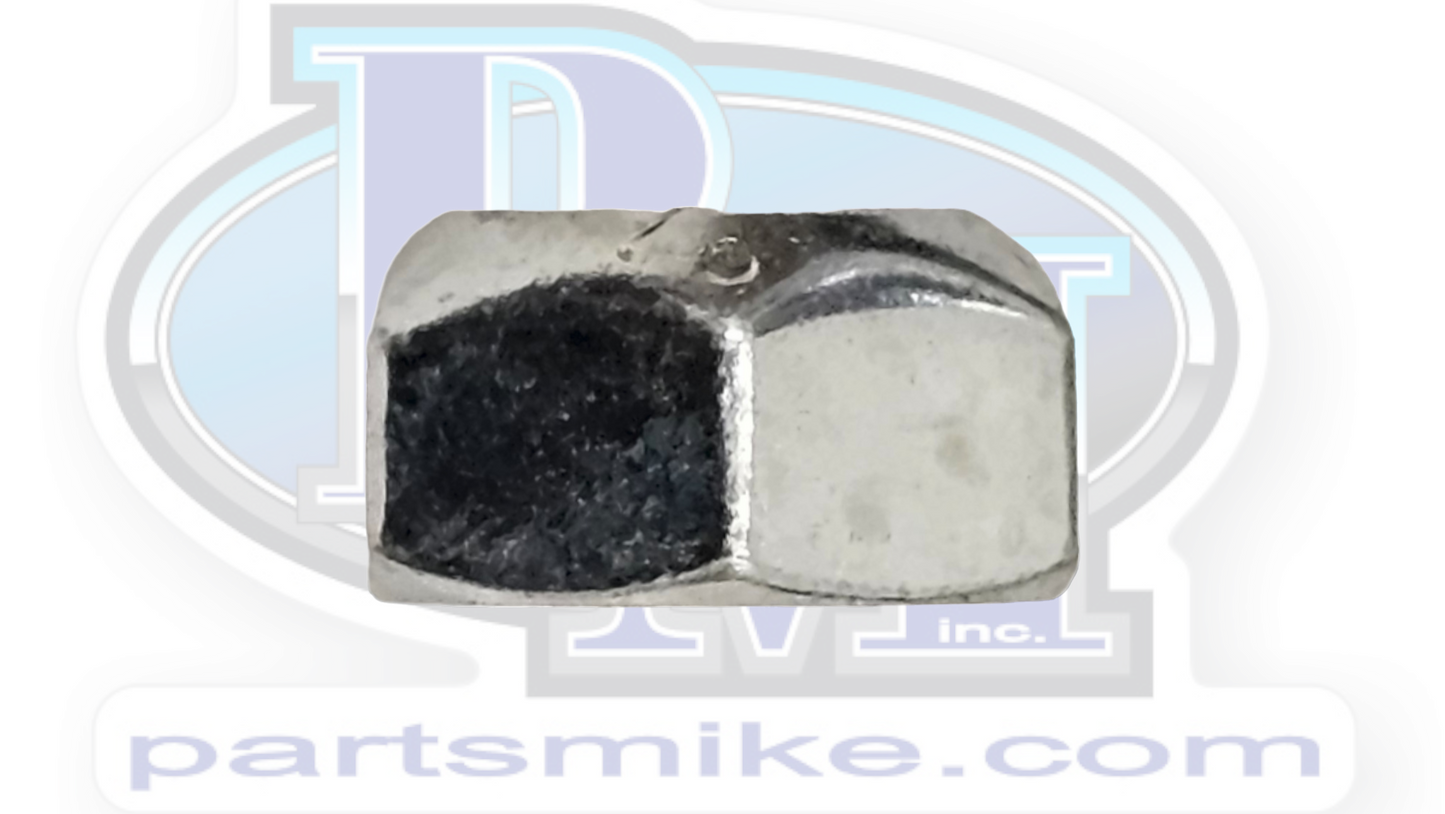

D44 high steer stud kit, 6 studs, 6 conical washers, 6 lock nuts. Each stud is 9/16"-18 on both ends and measures 3" in overall length. It will work on all three holed Dana 44 steering arms, and work with most arms with up to a 1/2" spacer (for thicker spacers use part number PM5137-4-SIX PACK). This kit comes with everything you need to install your high steer set up on your Dana 44.
WARNING: This kit requires that you have flat top knuckles on your axle already milled, drilled, and tapped for high steer. Though this may seem like a given to most, a couple people will read this and it will be useful ; )
Specifications:

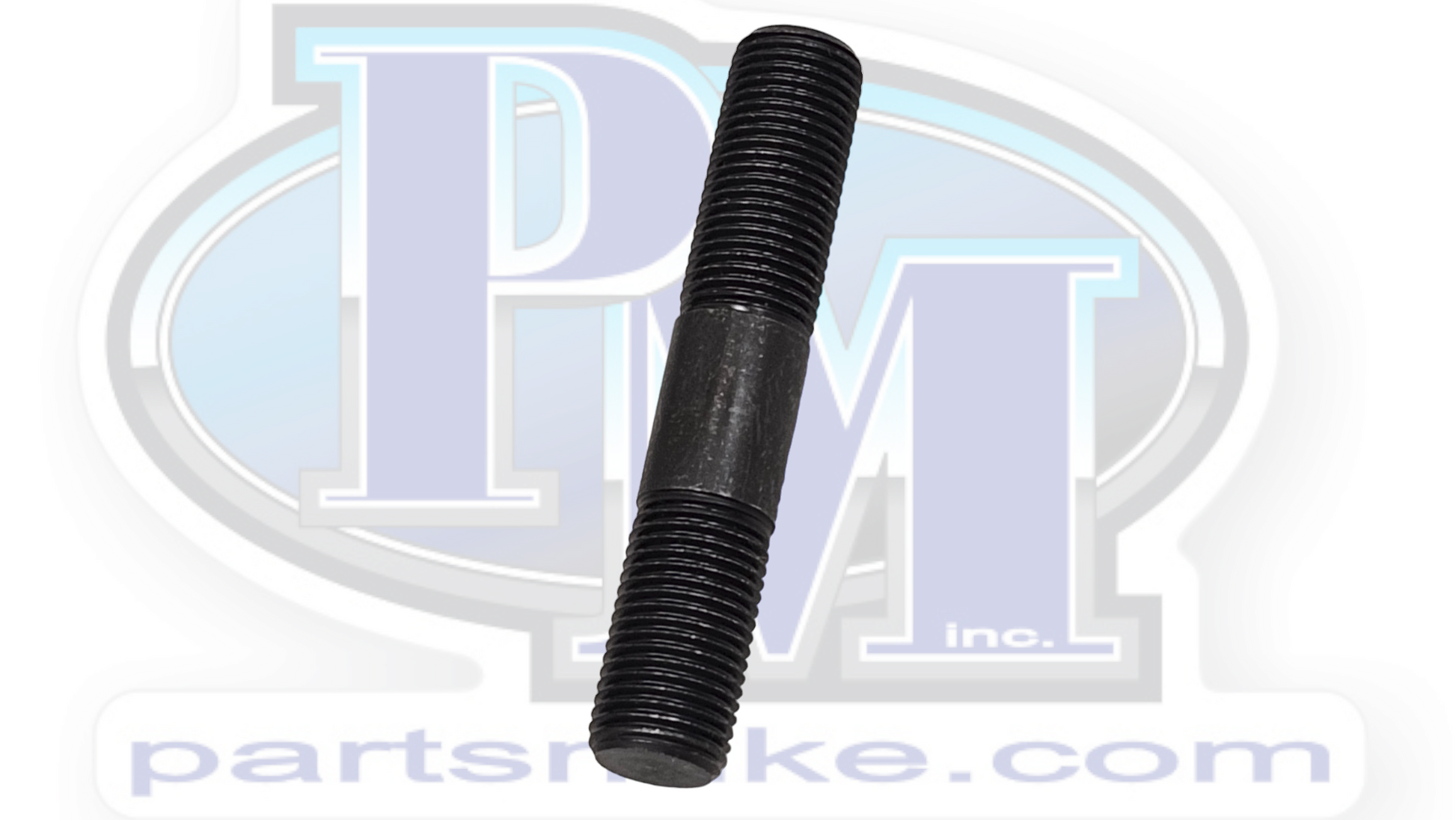

Stud
Overall dimensions: 3" length, 9/16"-18 threads
Thread lengths (approximate): short end = 0.90", long end 1.17"
