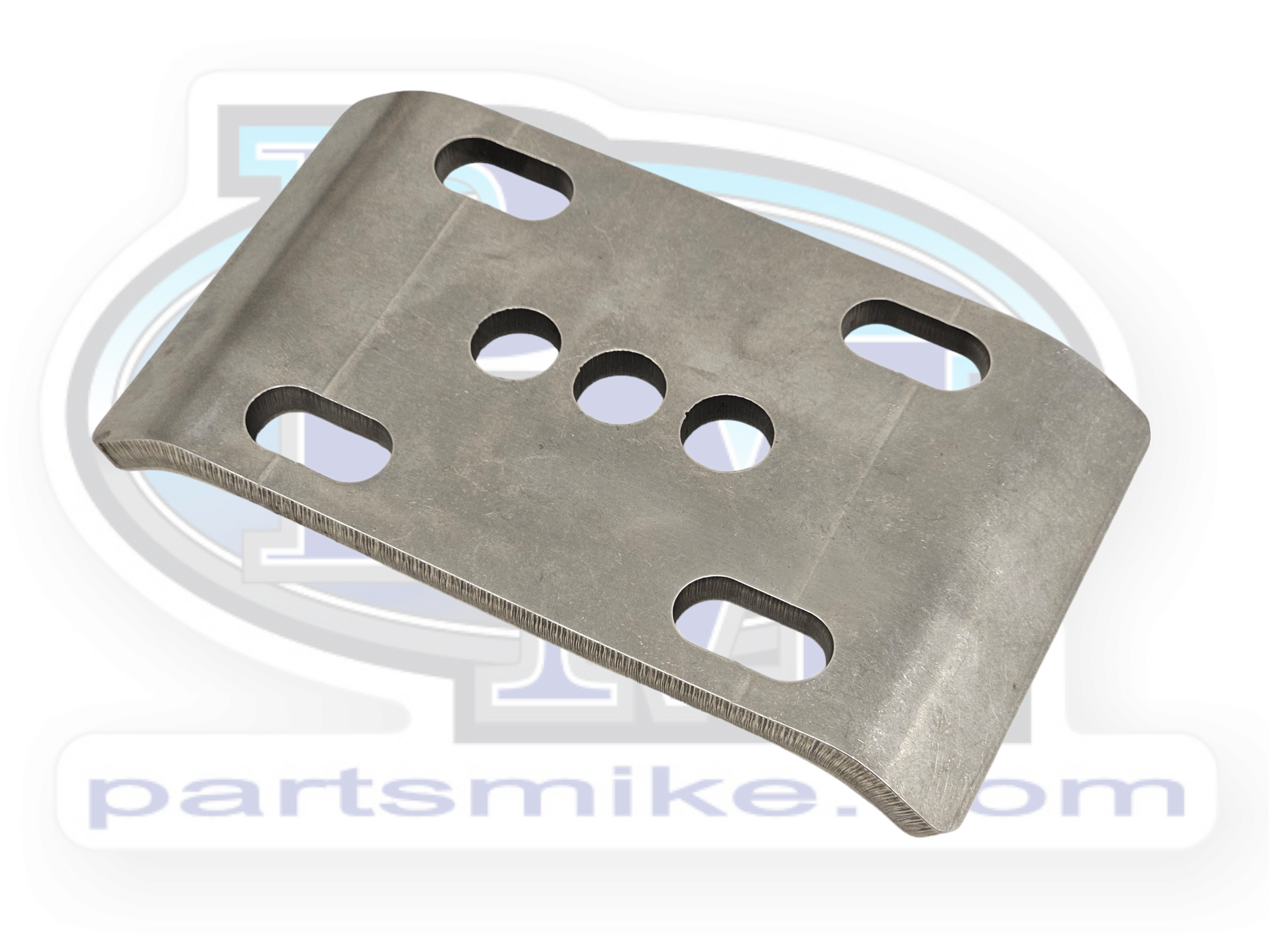

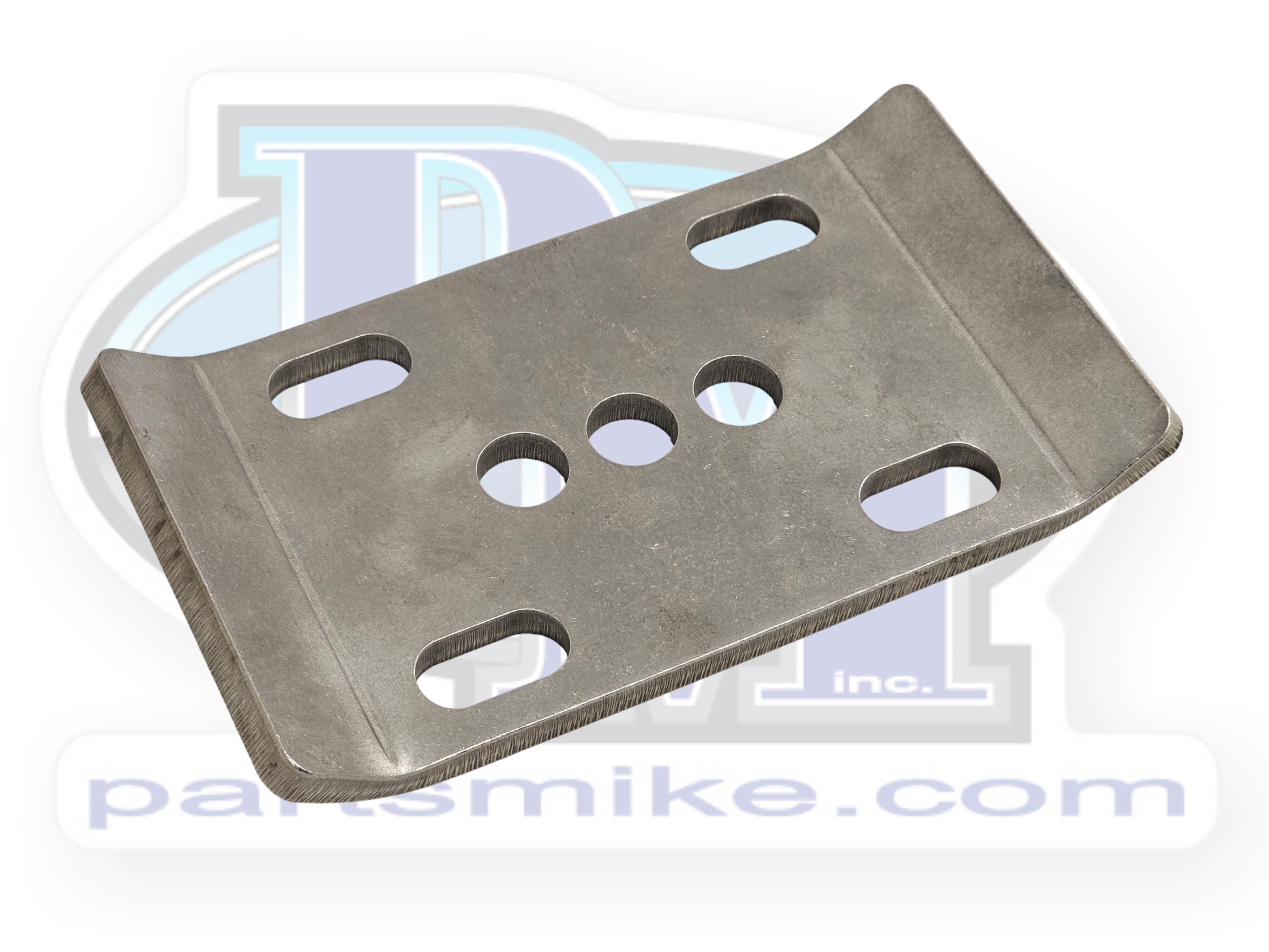

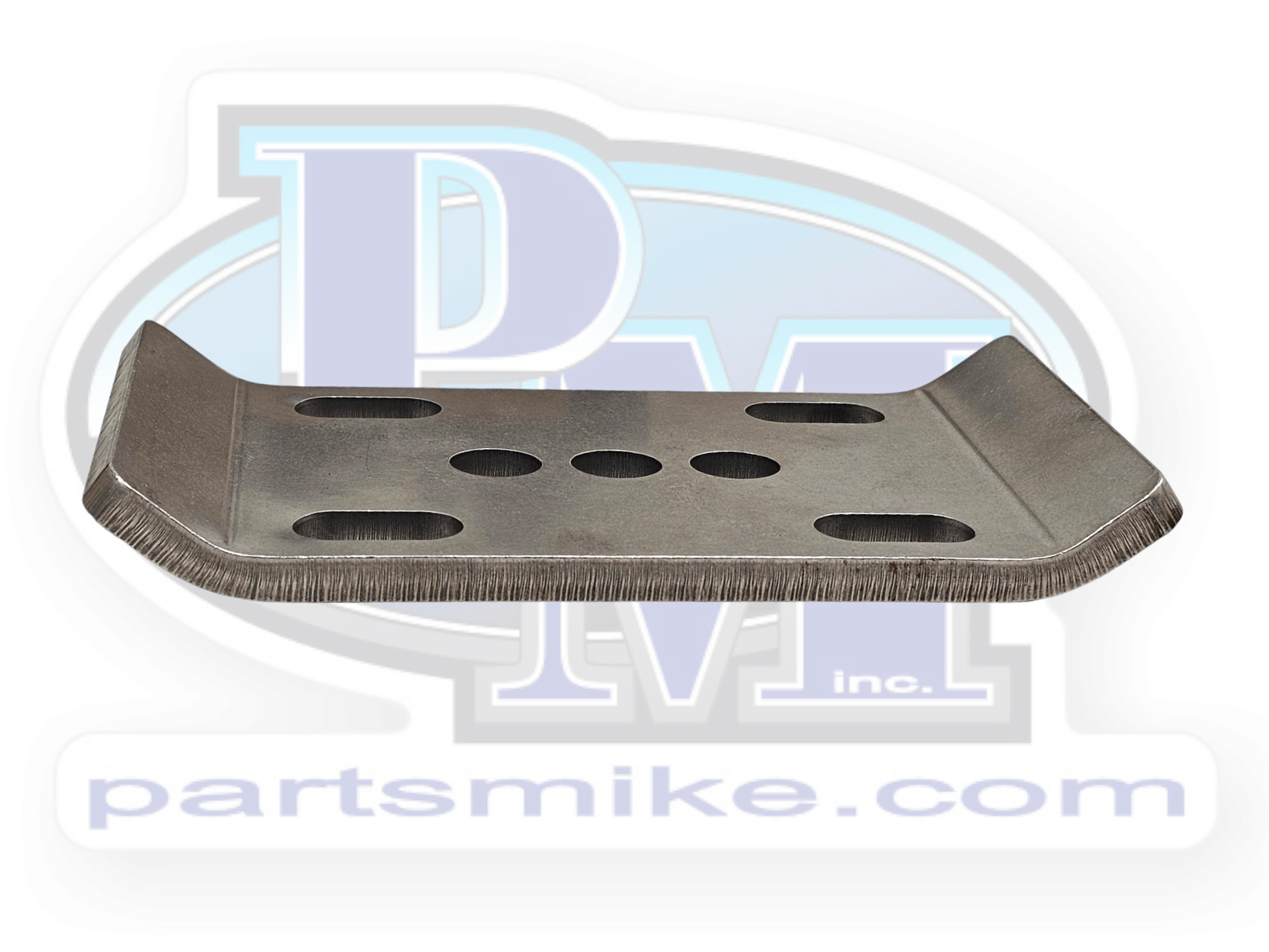

Spring Plate, Universal, 2.5"

Universal spring plate sold EACH!!!  They work with 2-1/2" wide leaf springs using 5/8" U-bolts  The spring plate has slotted holes, and fits 2-3/4" to 4" U-bolts (inside leg to inside leg on 5/8" U-bolt).  It has three holes for center pin placement.  This allows the axle to be centered like normal, or shifted 1" forward or back from center when used in conjunction with our spring perches (DM5023).  They are made from 3/8" plate steel, and the ends are bent up to increase the torsional rigidity (keep the plate from twisting)

Dimensions:
Overall length:  7-3/4"
Overall width:  4-1/2"
Allowable spring width:  2-1/2"
Allowable U-bolt size:  2-3/4" to 4" U-bolts (inside leg to inside leg on 5/8" U-bolt)
Center pin spacing:  3 holes, 1" spacing between (center, 1" forward, 1" back)
Center pin hole size:  3/4"

WARNING:  Shifting the axle forward or back using the center pin holes will require matching spring perches with 3 holes also (DM5023)
