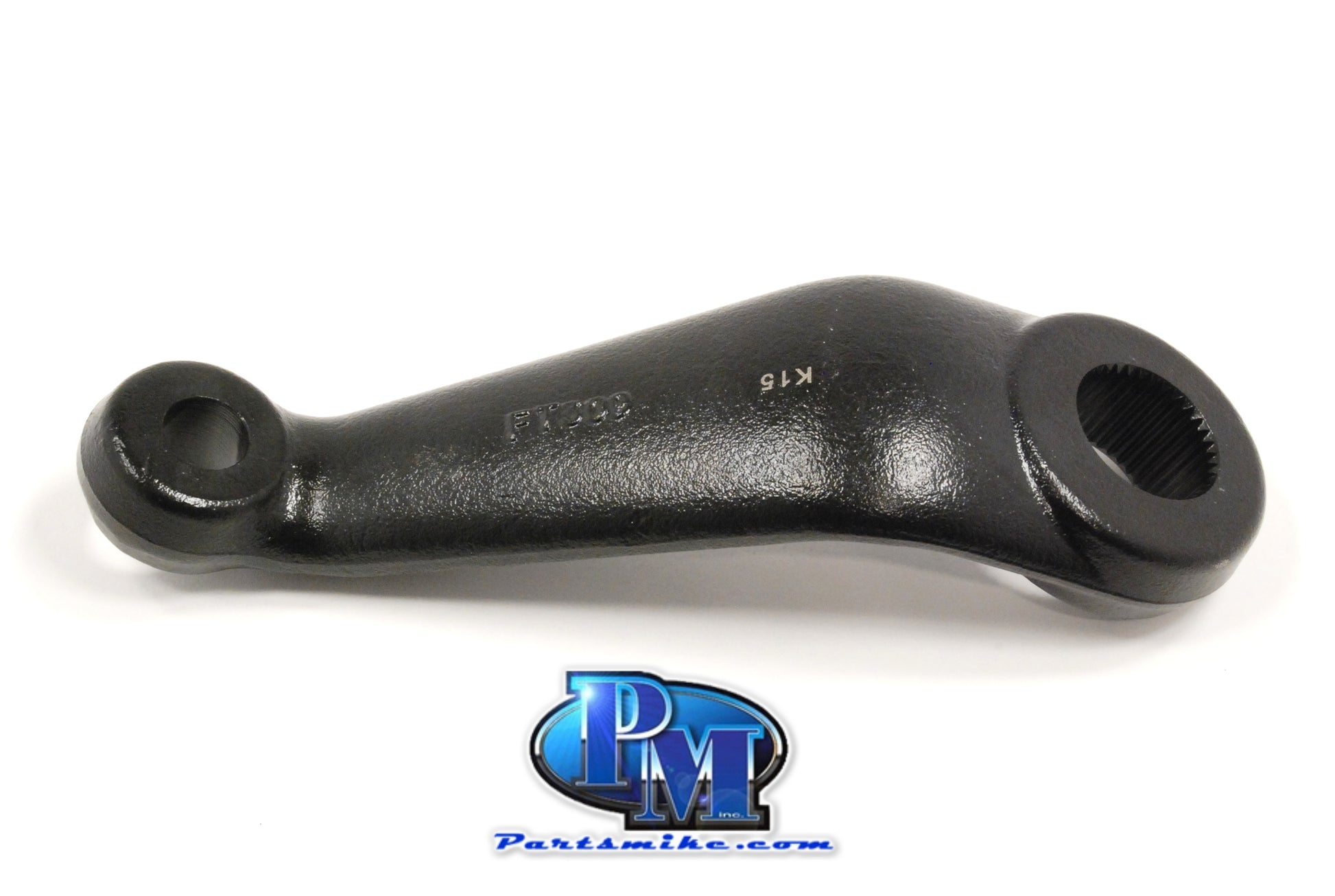

This is one of the most common pitman arms. We've made it without the master splines so clocking onto the steering box won't be a problem. Very popular with Chevy full size cross over set ups, full size Jeep set ups, and almost any set up that requires a long drop heavy duty pitman arm. It comes tapered for GM drag link ends, but we also offer them tapered to fit tie rod ends (use the drop down for PM1104 for specifications).
Specifications

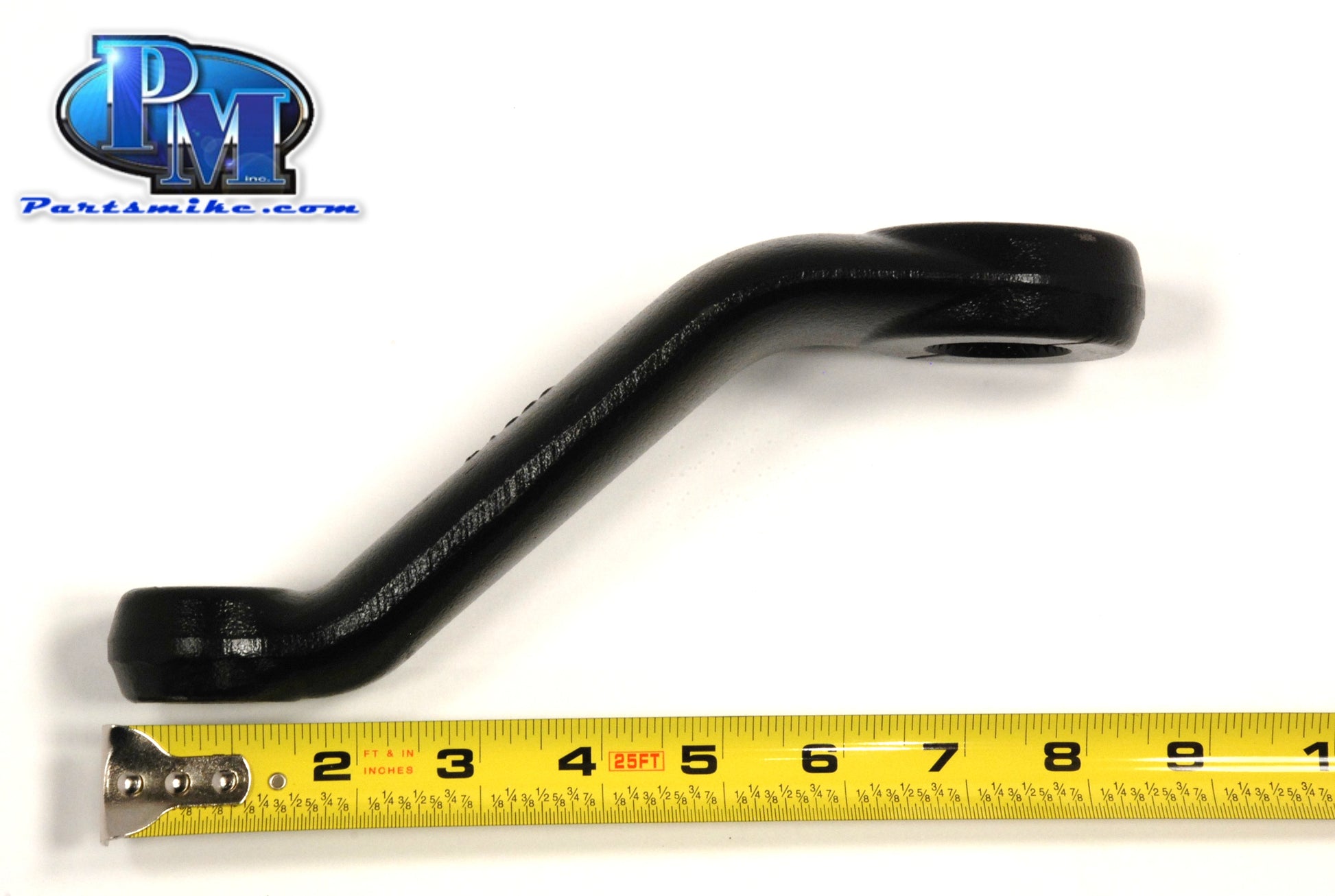

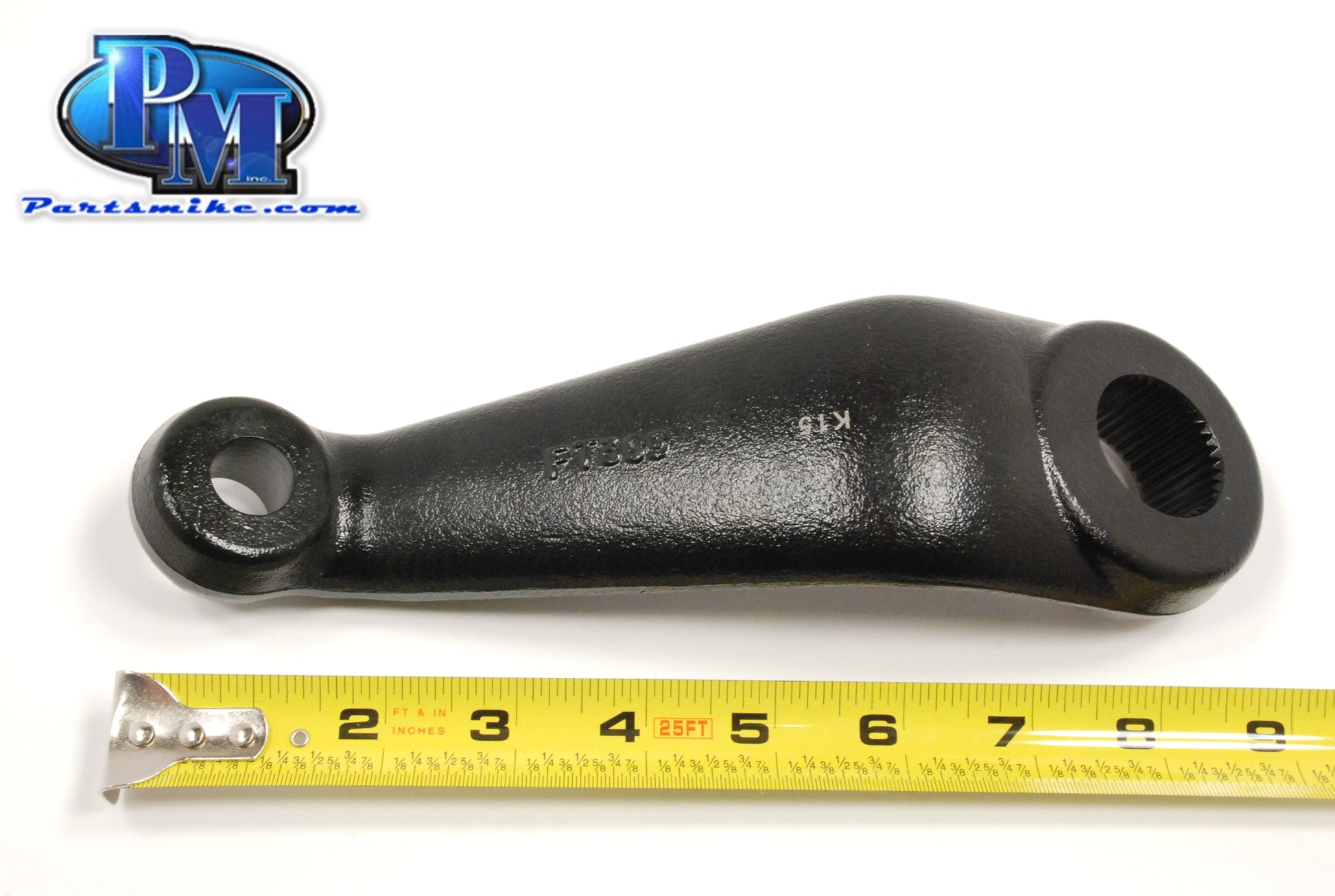

Overall length (tip to tip): 8-1/4"

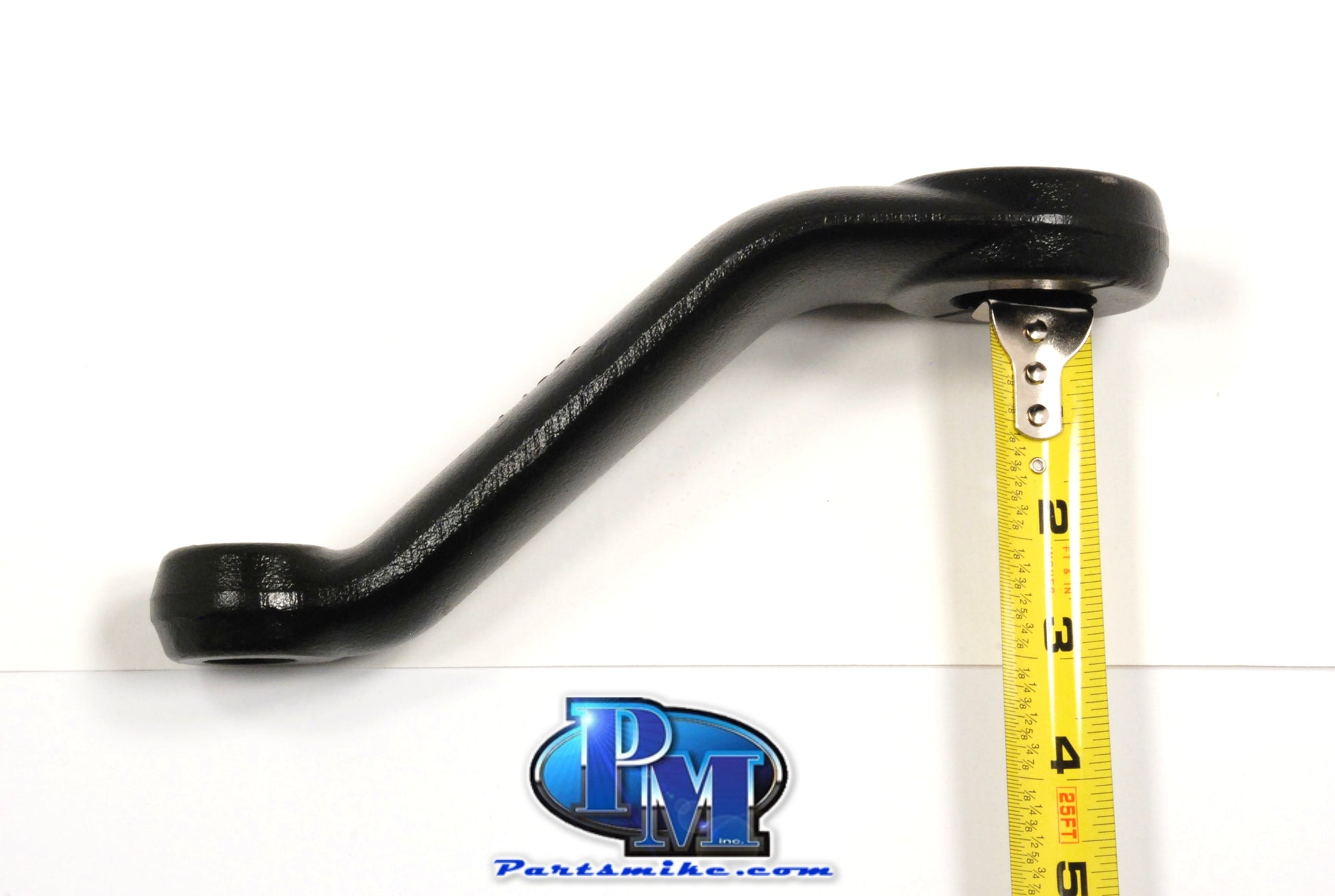

Drop: 3-1/2"
Center to center length (sector shaft to drag link hole): 6-1/2"

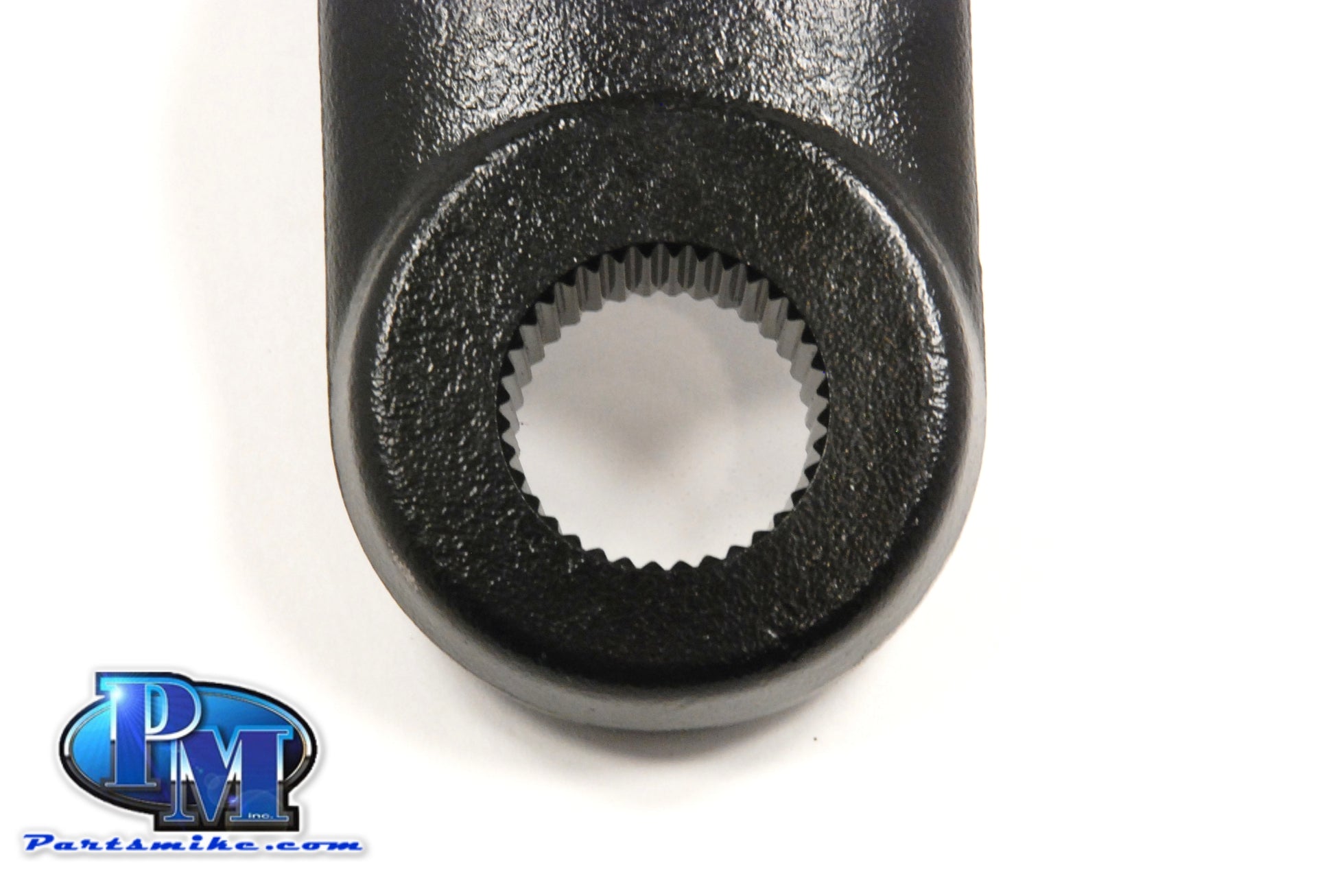

Sector shaft hole: 32 spline Saginaw power steering
Drag link hole: GM drag link taper (ES2026 or ES2027L/R)
For tie rod taper (ES2233L, EX2234R/L, ES2010L/R) use PM1104
