Jeep TJ, JK, JL, 32 Spline, Front Flange, 1350, 1410

Typically used on JK and JL front drive line flange yokes at the t-case.  Note this WILL NOT FIT JT front drivelines.  This unit is made extra long to clear the linkage and belly pan.  These can also be used on TJ Rubicon transfer cases, or other t-cases with 32 splines (seal change will be required, see specs below).  Flanges are super beneficial at the axle end of the driveline because if you get hung on a rock, round rolls, but a normal rectangular yoke, not so much.  The flange is made from AISI 5140 FORGED steel, and warrantied for LIFE when you get the hardware!

There's options to save you from hunting around our website (or our competitors ;).  Details about the hardware options are below the dimensions, scroll down!

Buy the kit!  Comes with the 12 point bolts.

Dimensions:

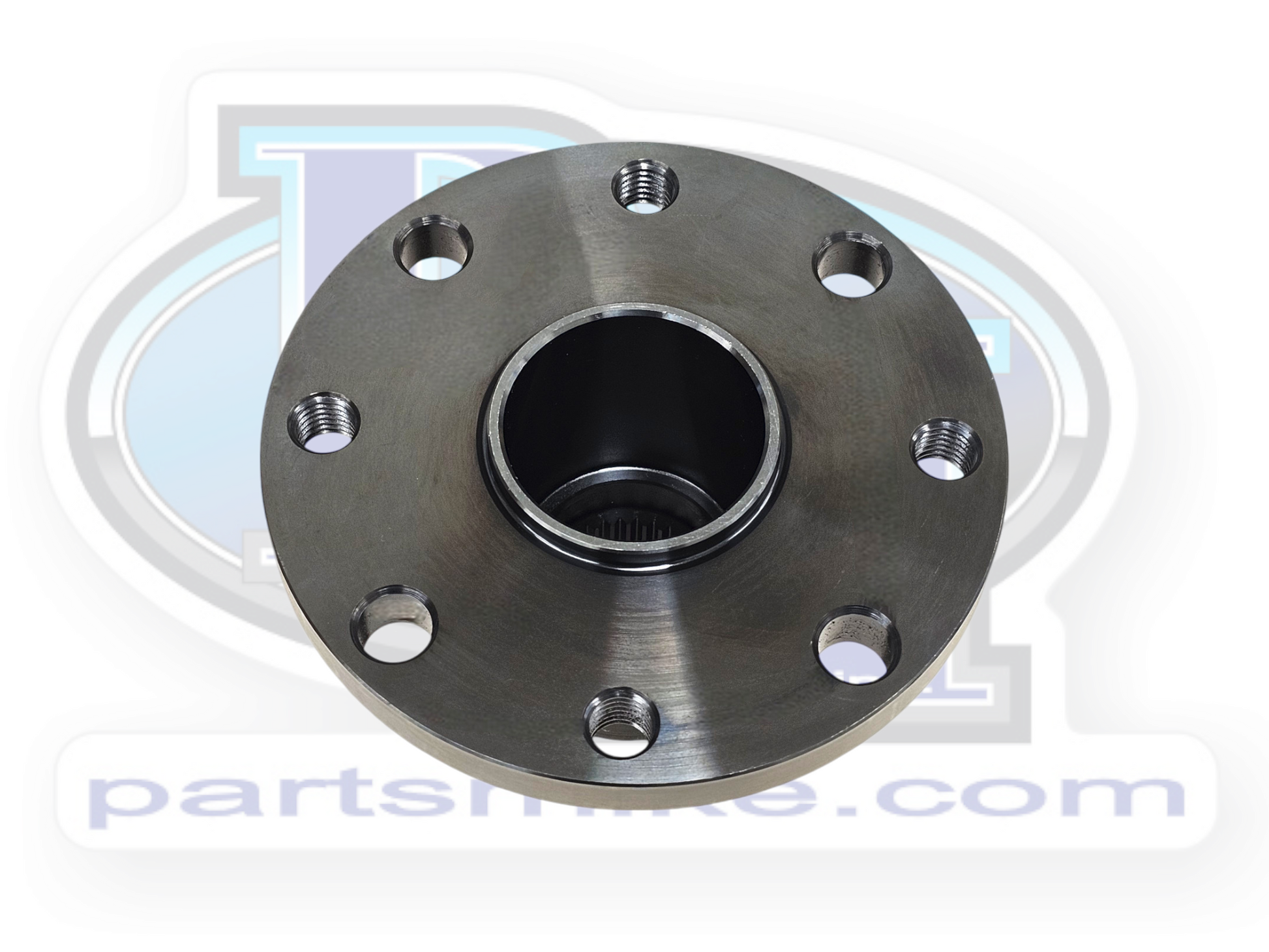

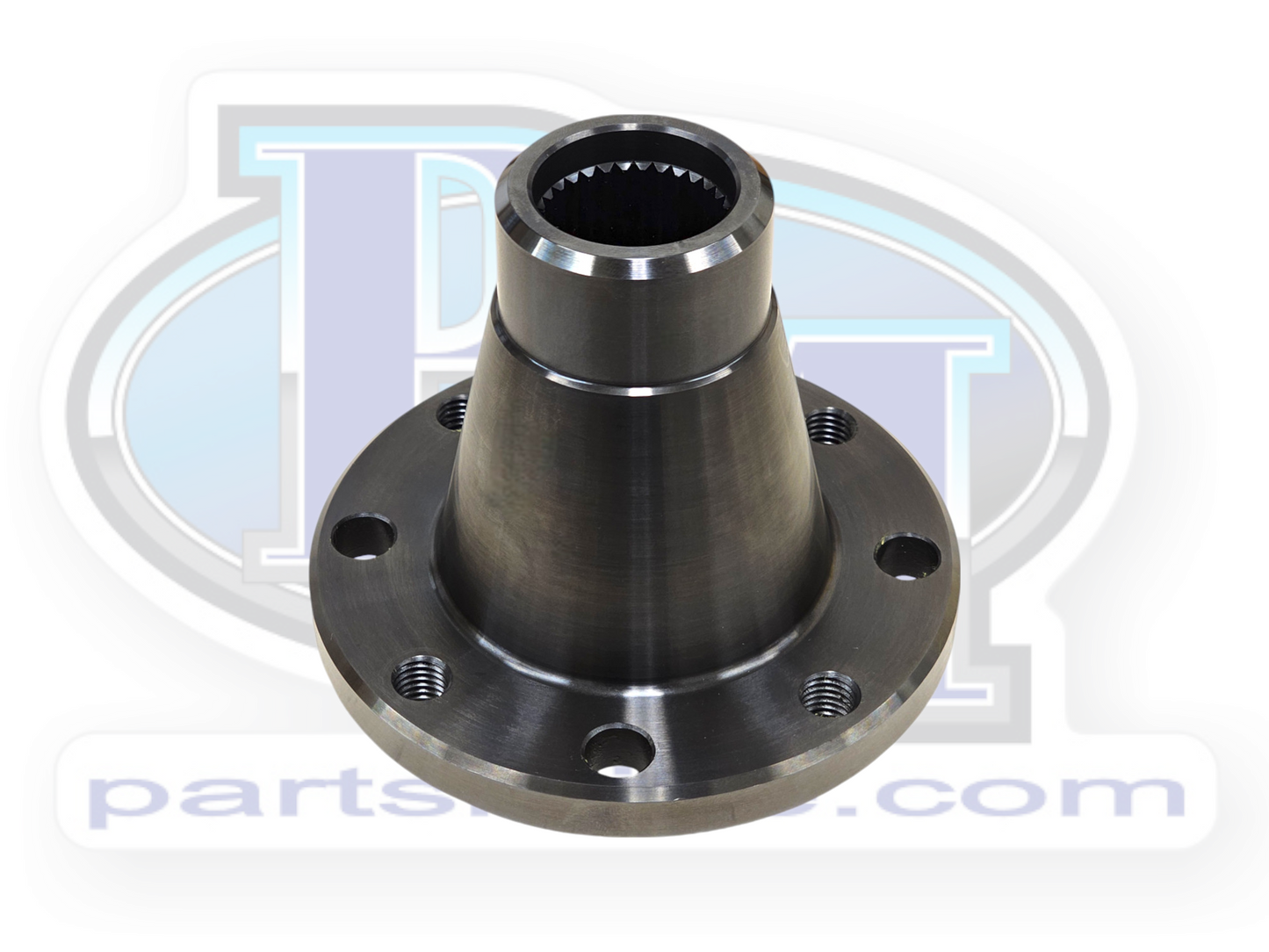

Overall: 5.10" round, 3.94" tall (EXCLUDES pilot), 0.500" thick flange
Pattern: 4-1/4" c-c (diagonally) with M12-1.75 threads and 4-1/4" c-c (diagonally) with 12mm through hole
Pilot: 2" male (0.173" stick out)
Splines: 32

Hardware options:

1. Flange only - Pretty straight forward
2. DM4600GK - Flange with bolts
   • Bolts -  Four M12-1.75x30mm 12 point bolts (uses 12mm 12 point socket)
