Jeep Grand Cherokee, 1999-UP, 1-1/2" Drop, Pitman Arm,

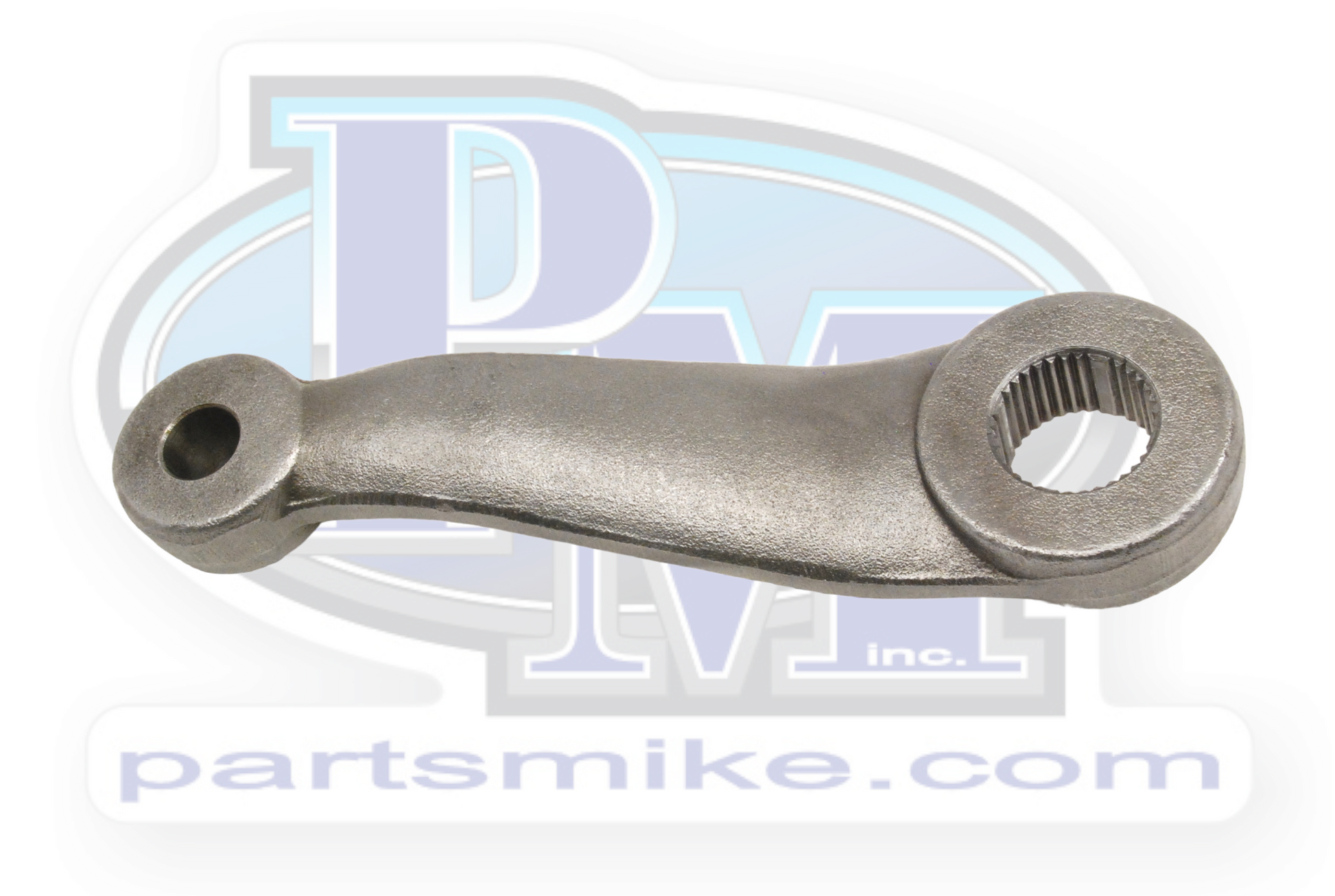

This pitman arm is a stock replacement part for 99-04 Jeep Grand Cherokee. The length and drop of this arm make it desirable for a variety of applications, but it's not ready to go out of the box. To use this particular pitman arm in the 4x4/off-road world, some modifications may be made necessary (e.g. master spline clocking or tapered hole size).  If you're using the GM one ton taper tie rod or drag link ends, you WILL have to taper the hole, OR check out part number PM


Specifications

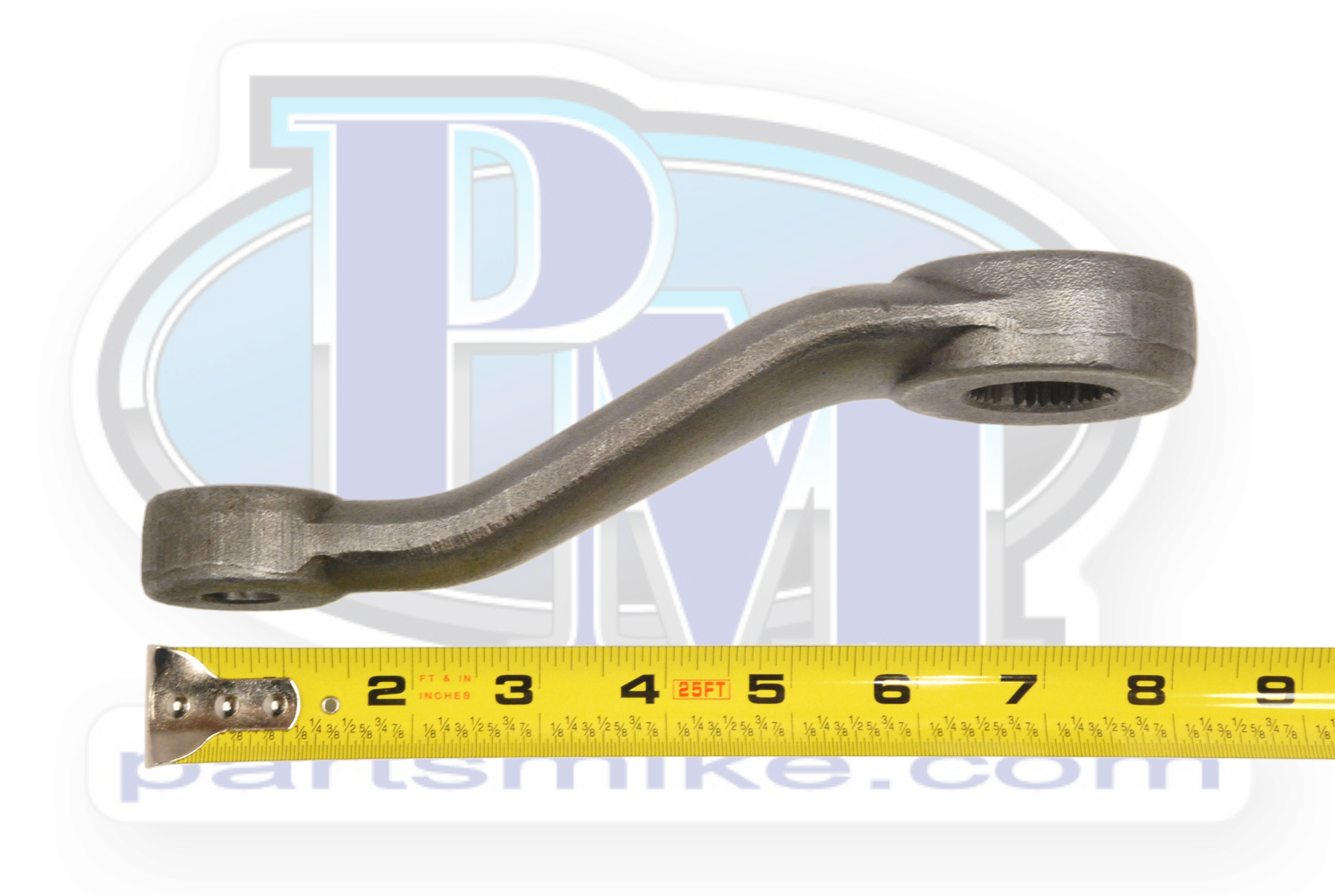

• Overall length (tip to tip):  8"

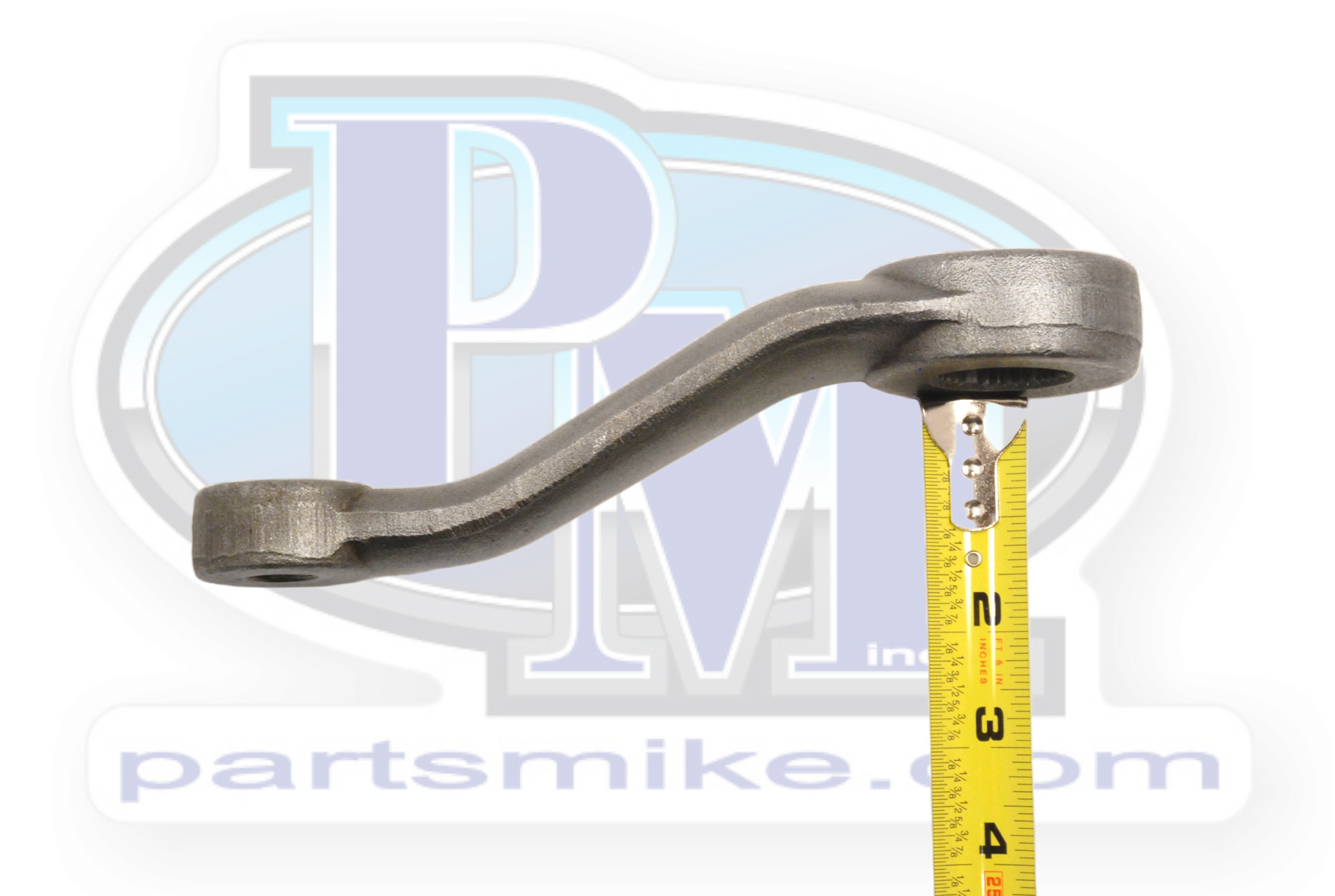

• Drop:  1-1/2"
• Center to center length (sector shaft to drag link hole):  6-1/4"
• Sector shaft hole:  32 spline Saginaw power steering
