Parts Mike, Inc.
GM 14 Bolt, Yoke, Seal, Nut
GM 14 Bolt, Yoke, Seal, Nut
SKU:PM3112-1402-2
Regular price
$125.75 USD
Regular price
Sale price
$125.75 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

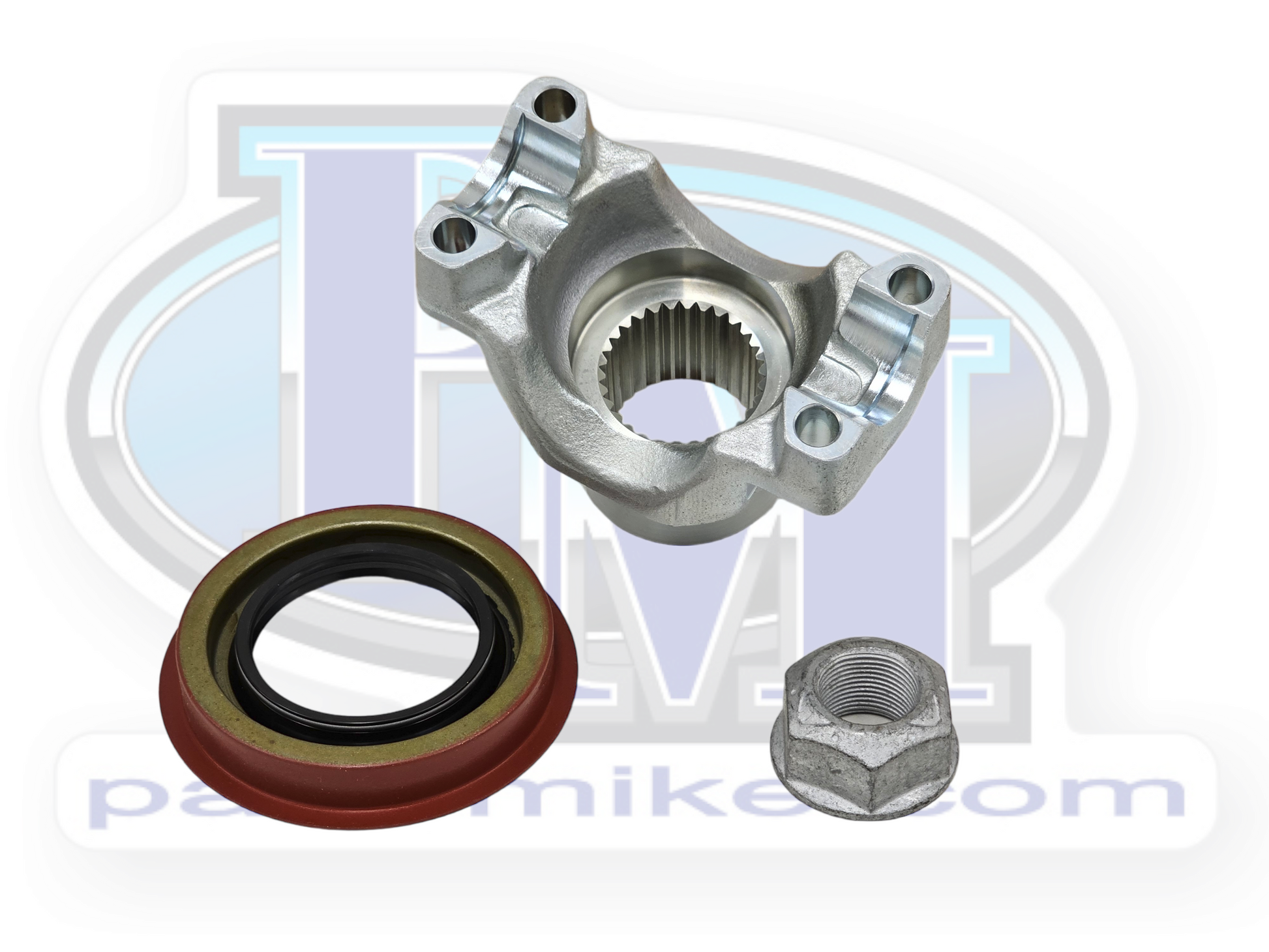

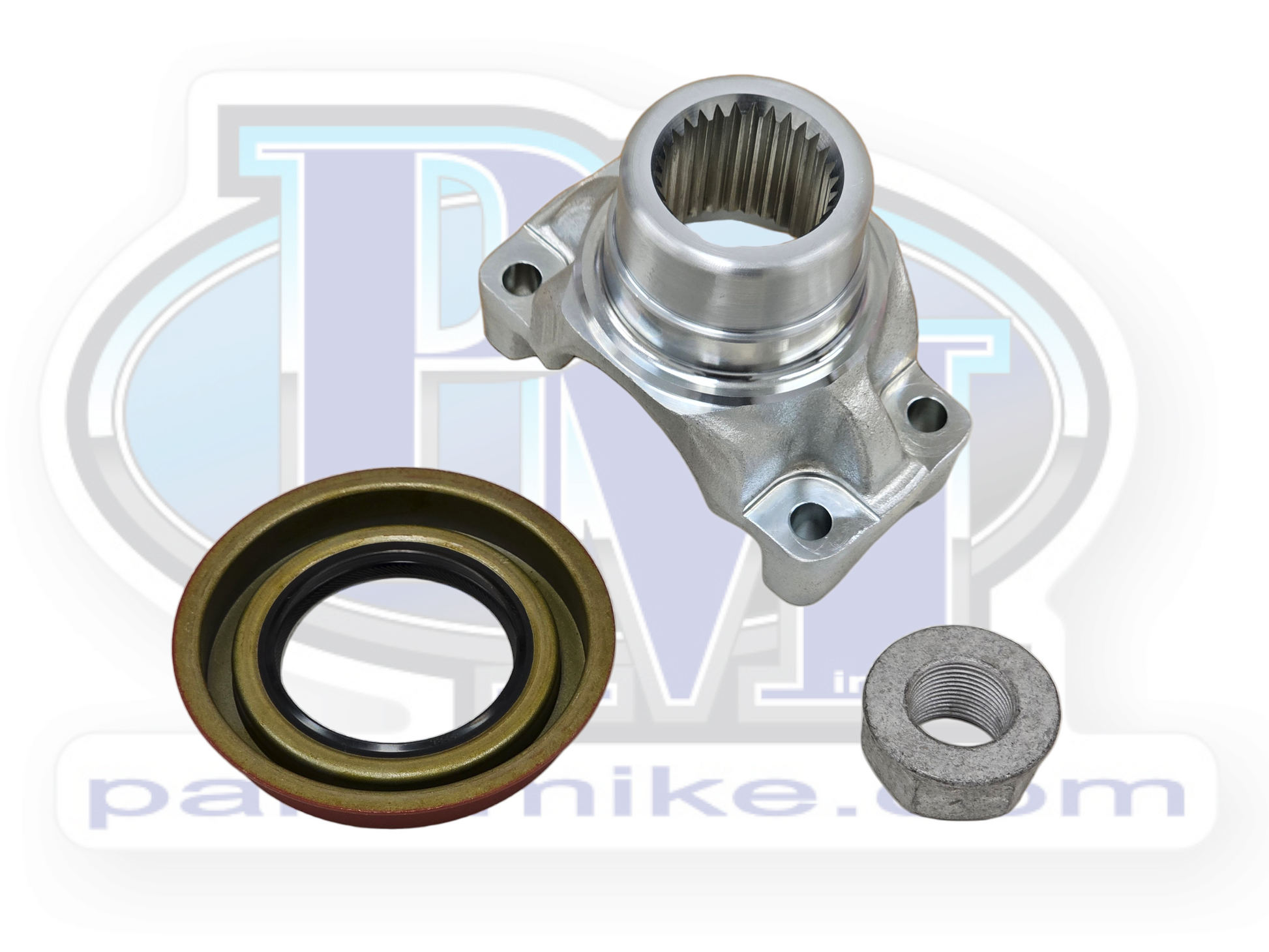

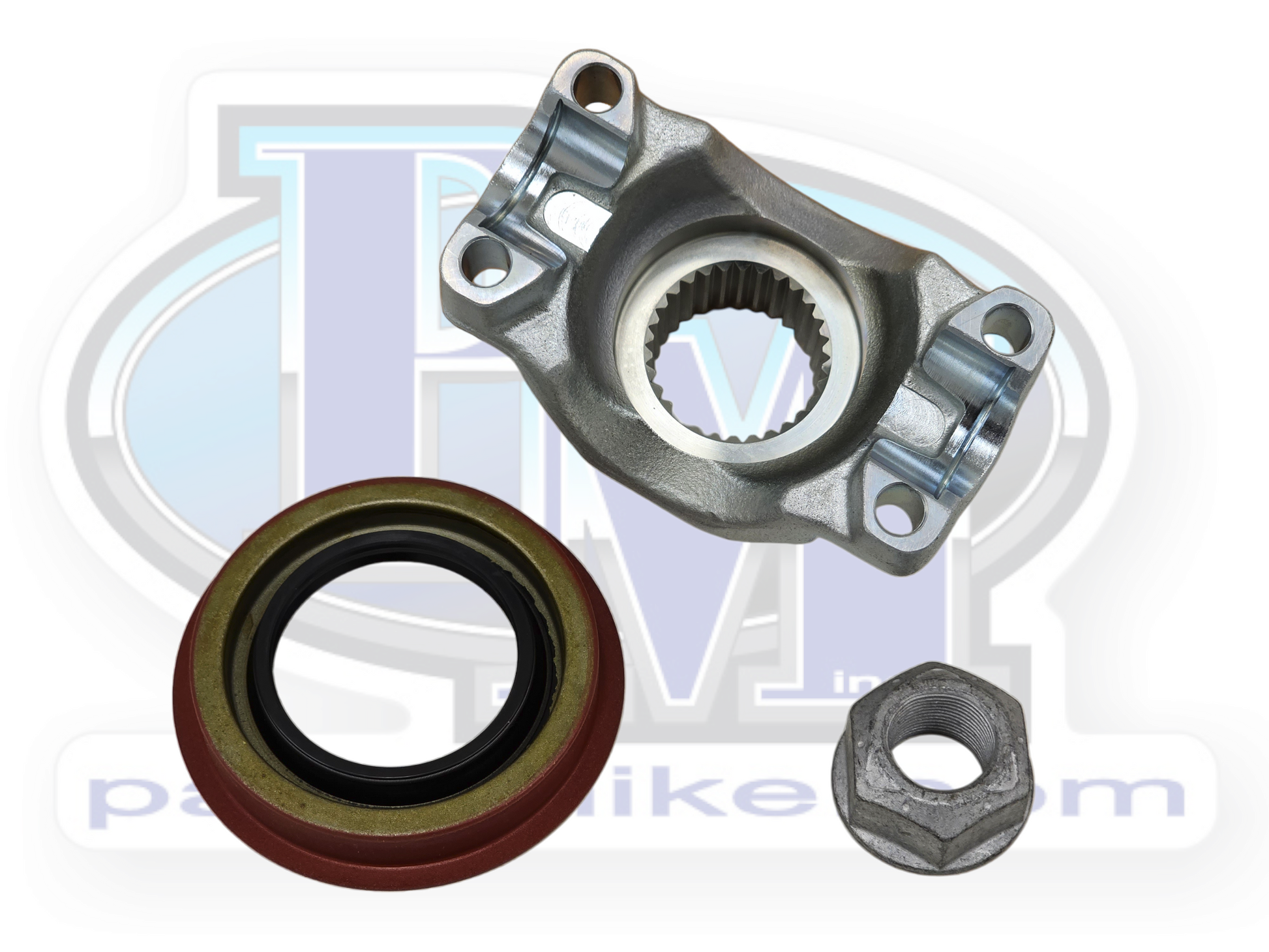

You've selected a 1410 U-bolt style yoke for the GM Corporate 14 bolt with the pinion seal and nut.
1410 U-bolt style yoke for the GM Corporate 14 bolt. Quite possibly the toughest housing should get the toughest yoke. The Parts Mike yoke is FORGED, U-bolt style, features FULL LOCK UP, and has an OE spline fitment. Our design achieves the highest possible angle while maintaining strength. See the write up below for more details.
- FORGED will beat the same part made from billet, or cast...period. The forging process forms the metal grain along the contours, and results is a stronger part. Forging also compacts the grain structure which nearly eliminates failures from voids or inclusions.
- U-bolt style is superior to straps in nearly every way. The U-bolt is nearly impossible to shear, but the head of a 5/16" bolt in a strap can pop like a pimple. There's nothing to peel back on a U-bolt, but the strap can get caught. Plus the U-bolt is simple to identify, a 1410 u-joint takes a 1410 U-bolt. Straps have all sorts of different length, width, and thread pitch differences for the same size u-joint depending on application.

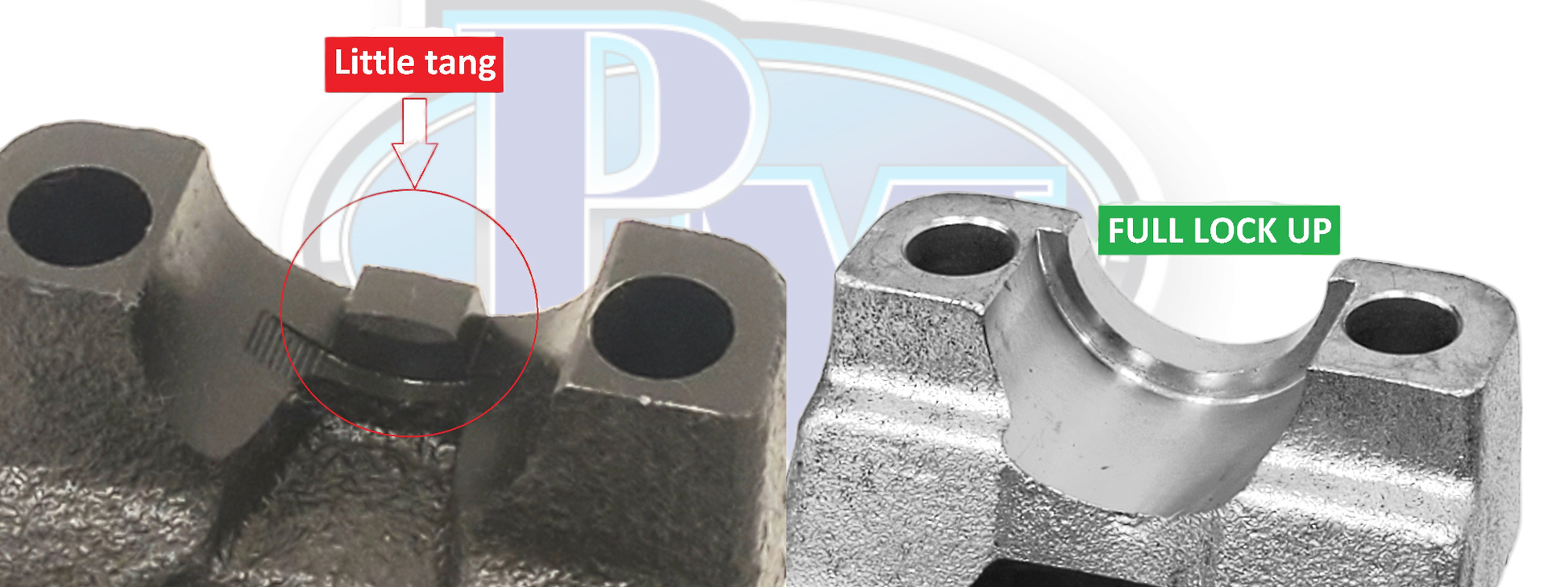

- FULL LOCK UP is what we call our u-joint cap retention method (see pictures for FULL LOCK UP vs little tang). Almost all yokes have a little tang to retain the u-joint cap. Catch that tang on a stubborn rock, and it breaks off. Then the cap shoots out, and BAM. FULL LOCK UP eliminates this problem by fully retaining the u-joint cap.
- OE spline fitment is what every yoke should have. Most yokes slide on, and aside from a gross error, work just fine....BUT an OE spline fitment requires encouragement from a 3 pound dead blow. It would take hundreds of thousands of miles to wear out splines, but we make them so they'll NEVER wear out.
