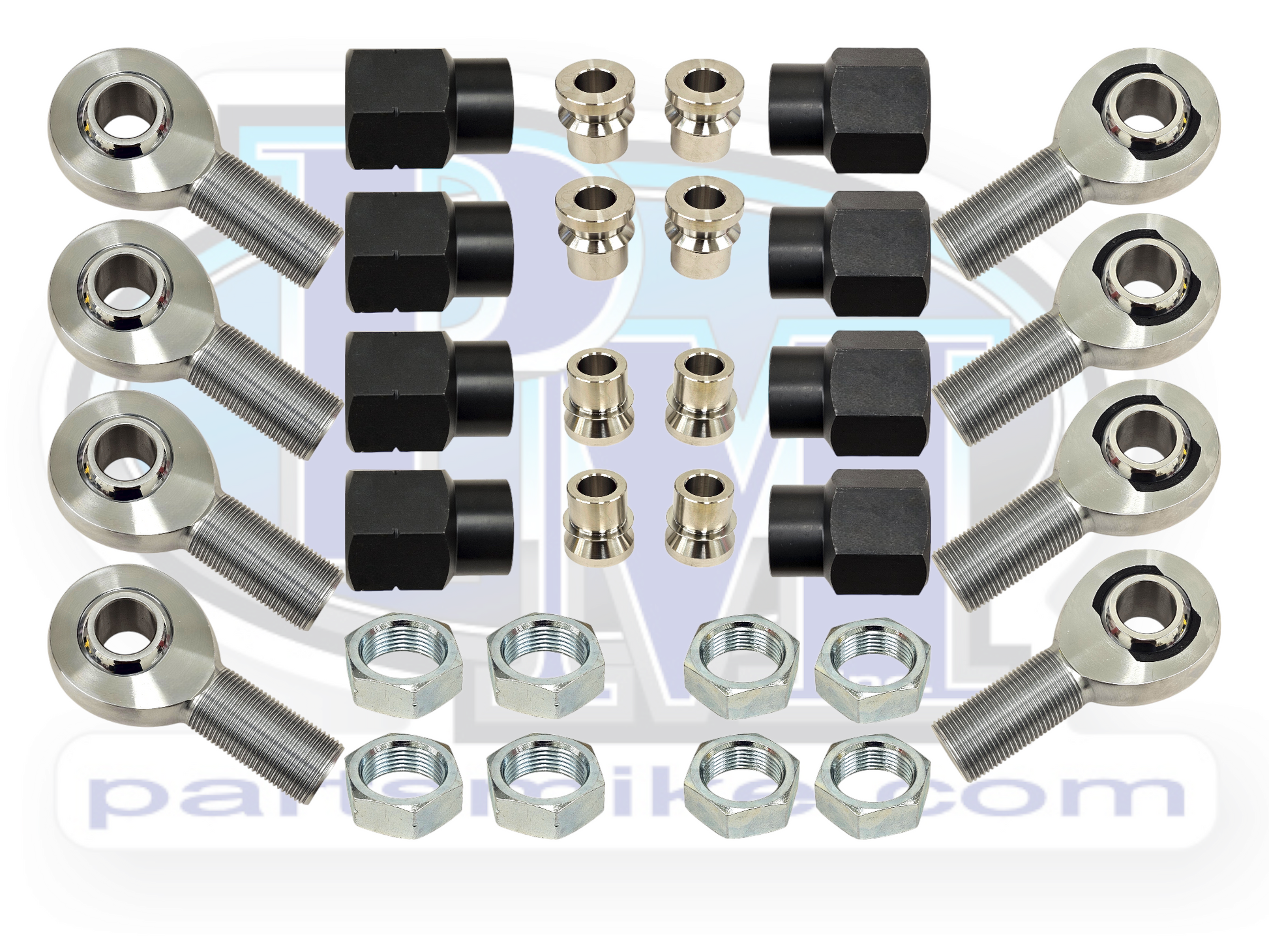

1-1/4" Chromoly heim joint kit (dimensions below). This kit includes everything to rebuild a 4 link suspension: 8 heim joints (4 L/H, 4 R/H), 16 stainless steel misalignment spacers (5/8" X 2-5/8" wide), 8 jam nuts (4 L/H, 4 R/H), and 8 tube inserts (4 L/H, 4 R/H). Use the drop down menu to select the size for the misalignment spacers.
The black oxide coating on the tube insert IS weldable. It does not need to be removed prior to welding, and will not produce any noxious fumes! In fact it saves time in most cases because there is no preparation. The misalignment spacers are made from stainless steel.
Dimensions:
Kit Assembly: 2-5/8" overall width with misalignment spacers, 1-1/2" ID tube size

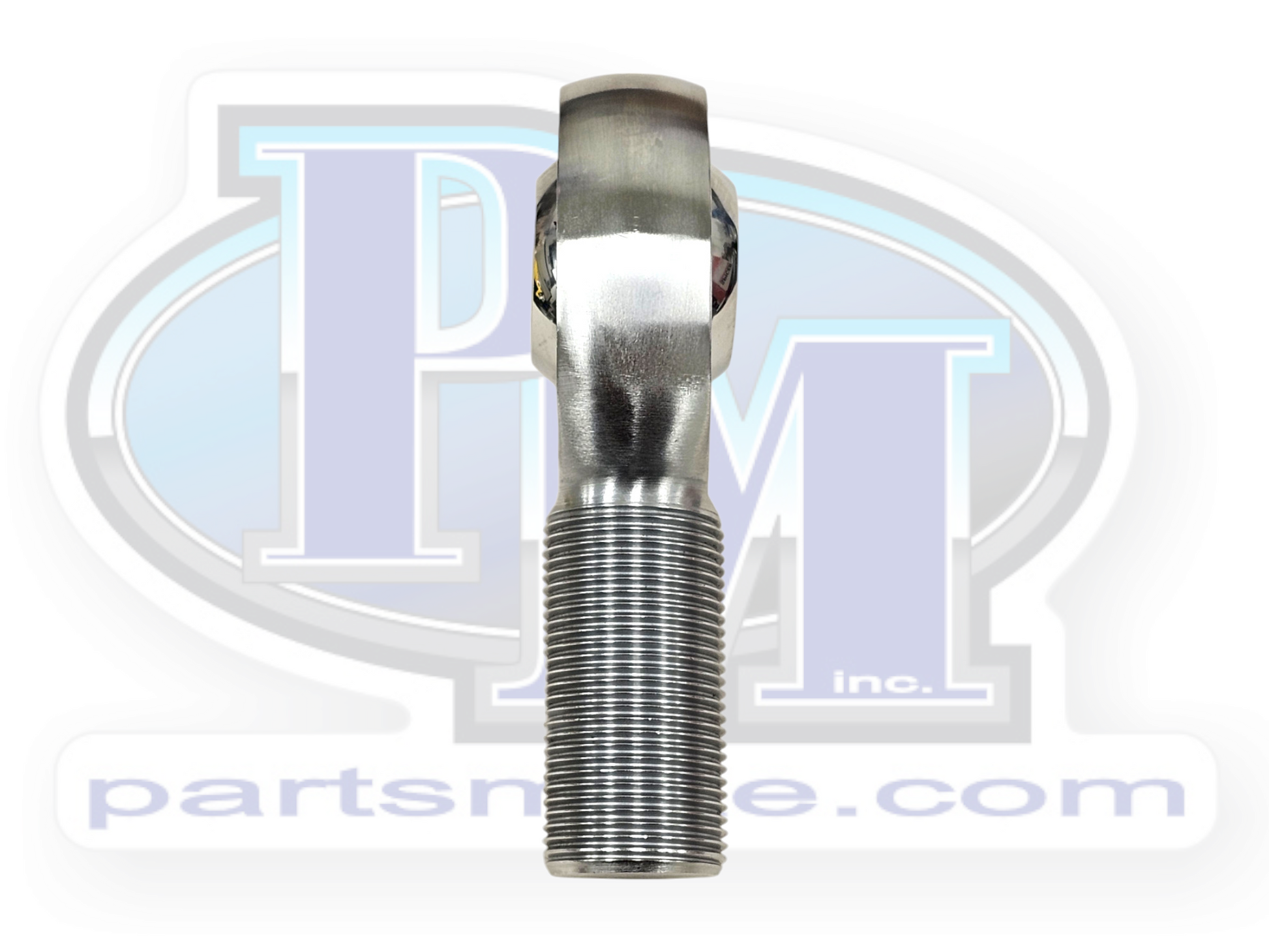

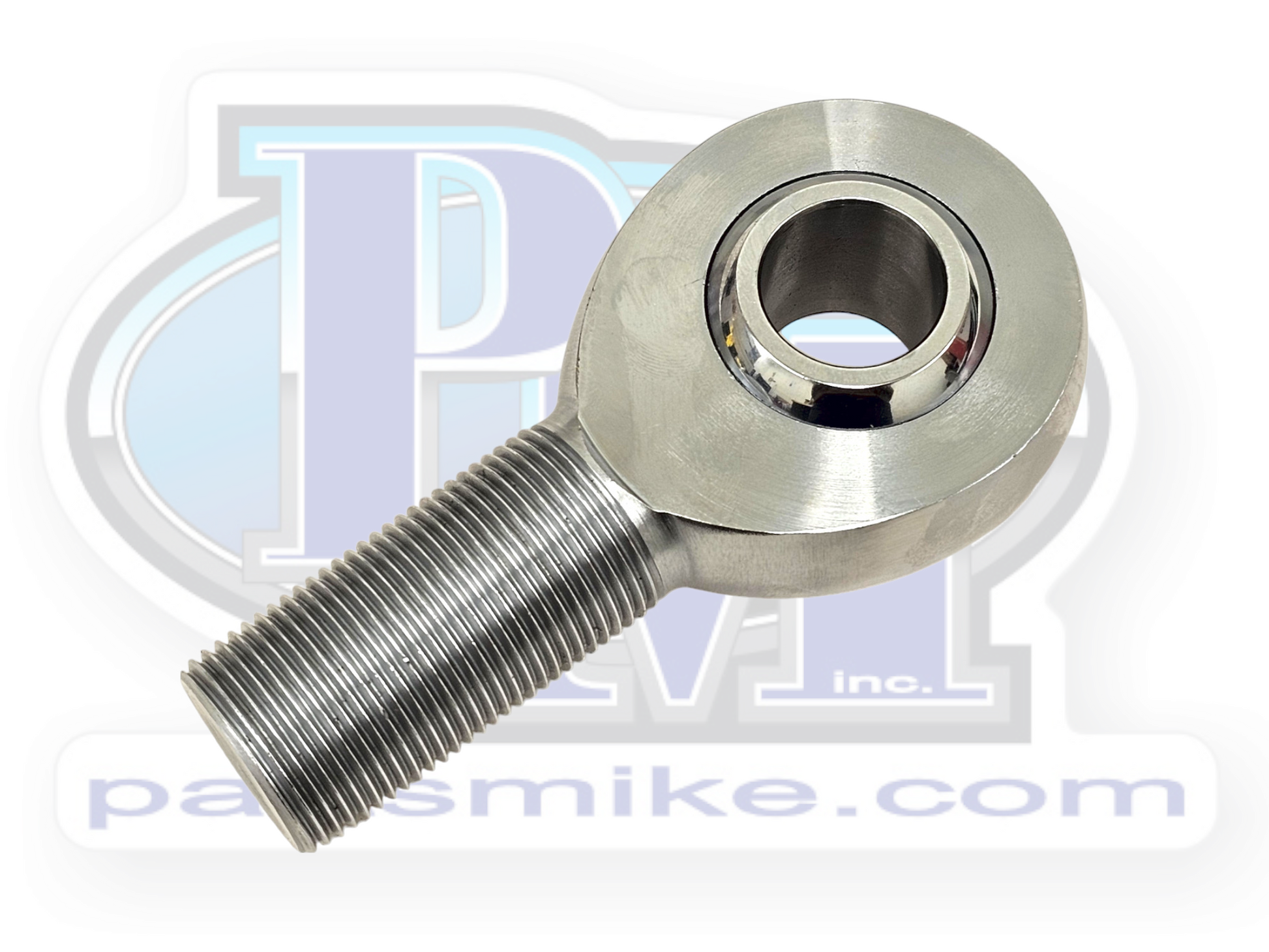

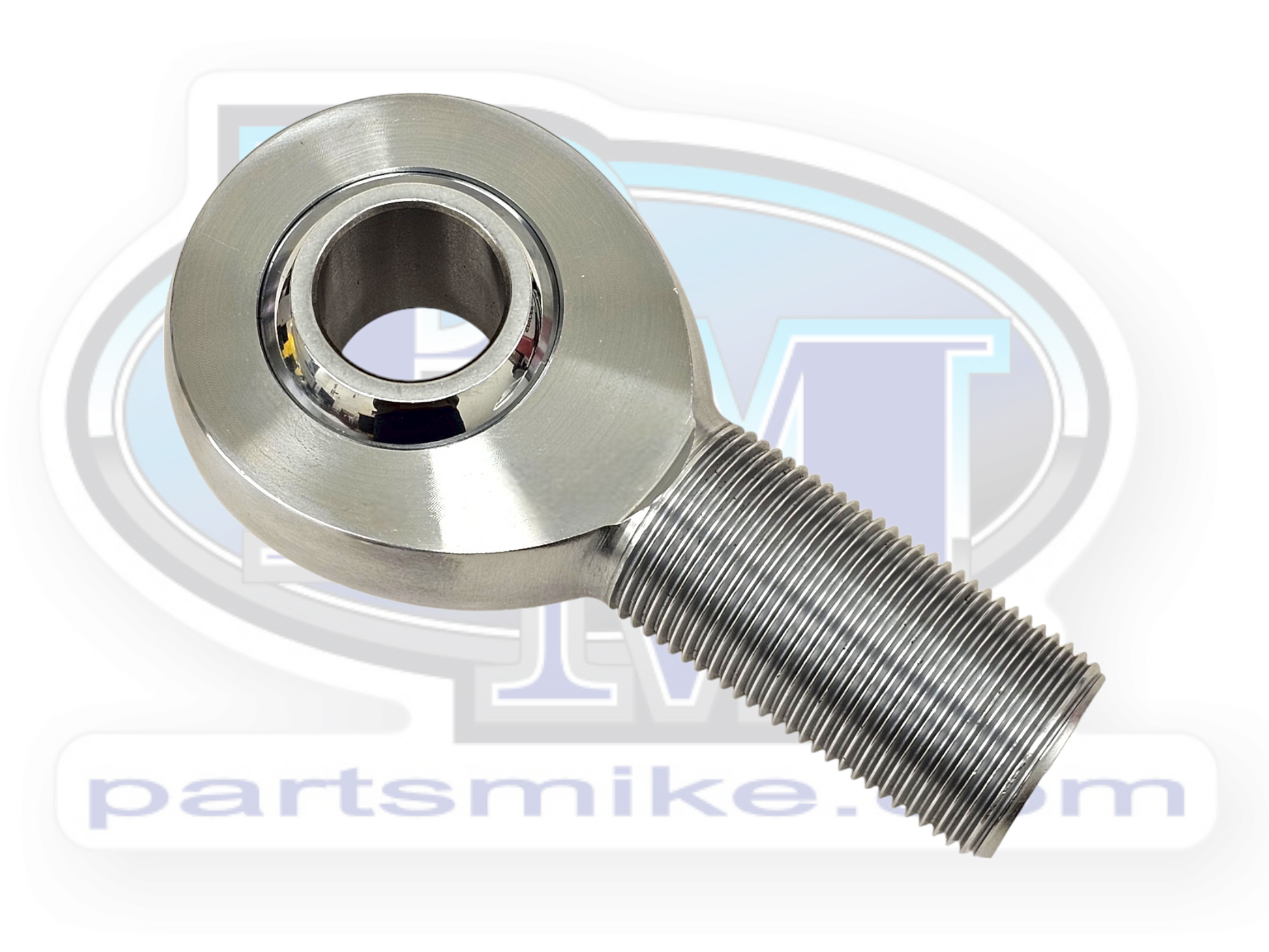

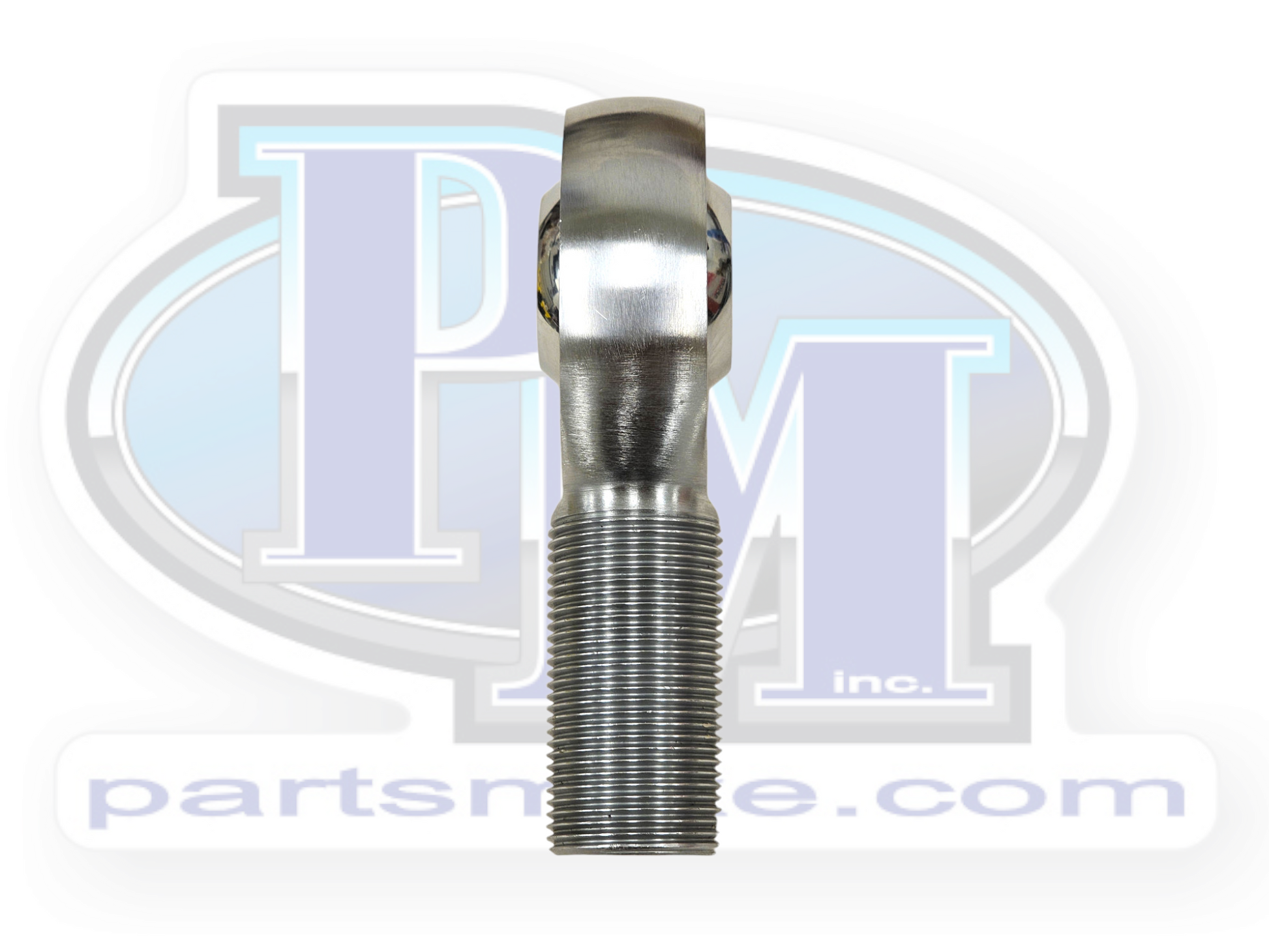

Heim Joint: 1-1/4" hole, 1"-12 threads (left and right), 2-5/16" of threaded area

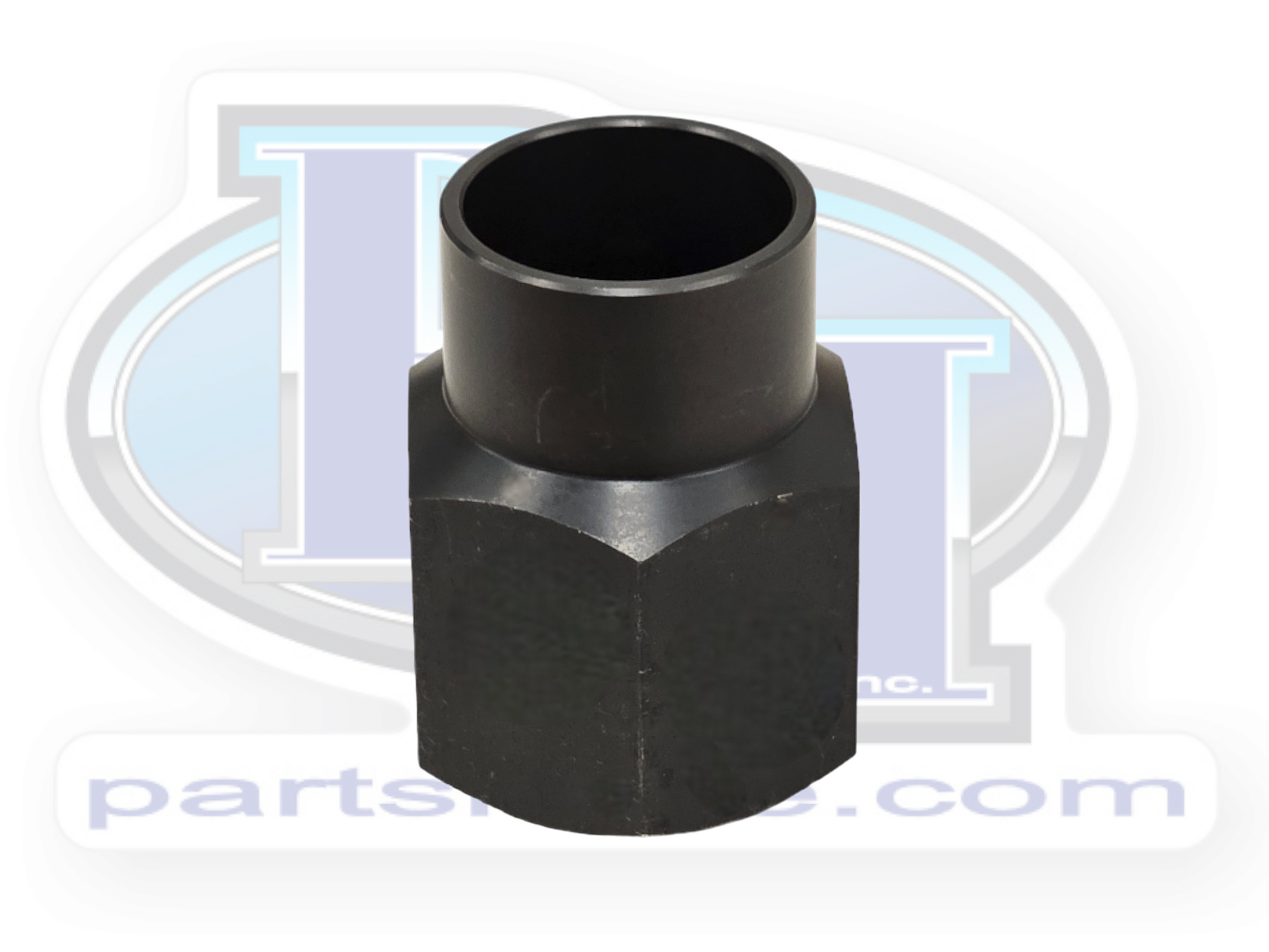

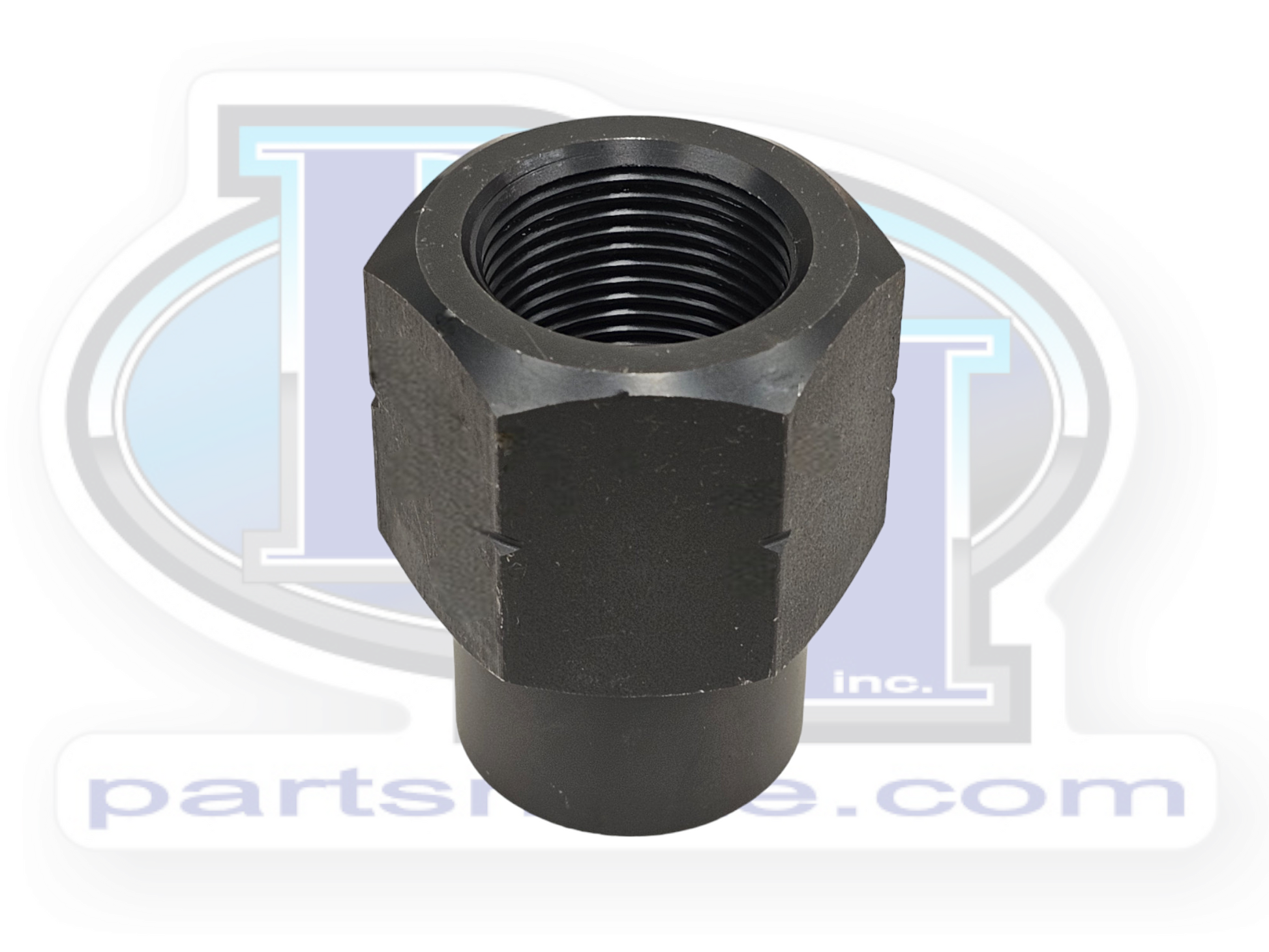

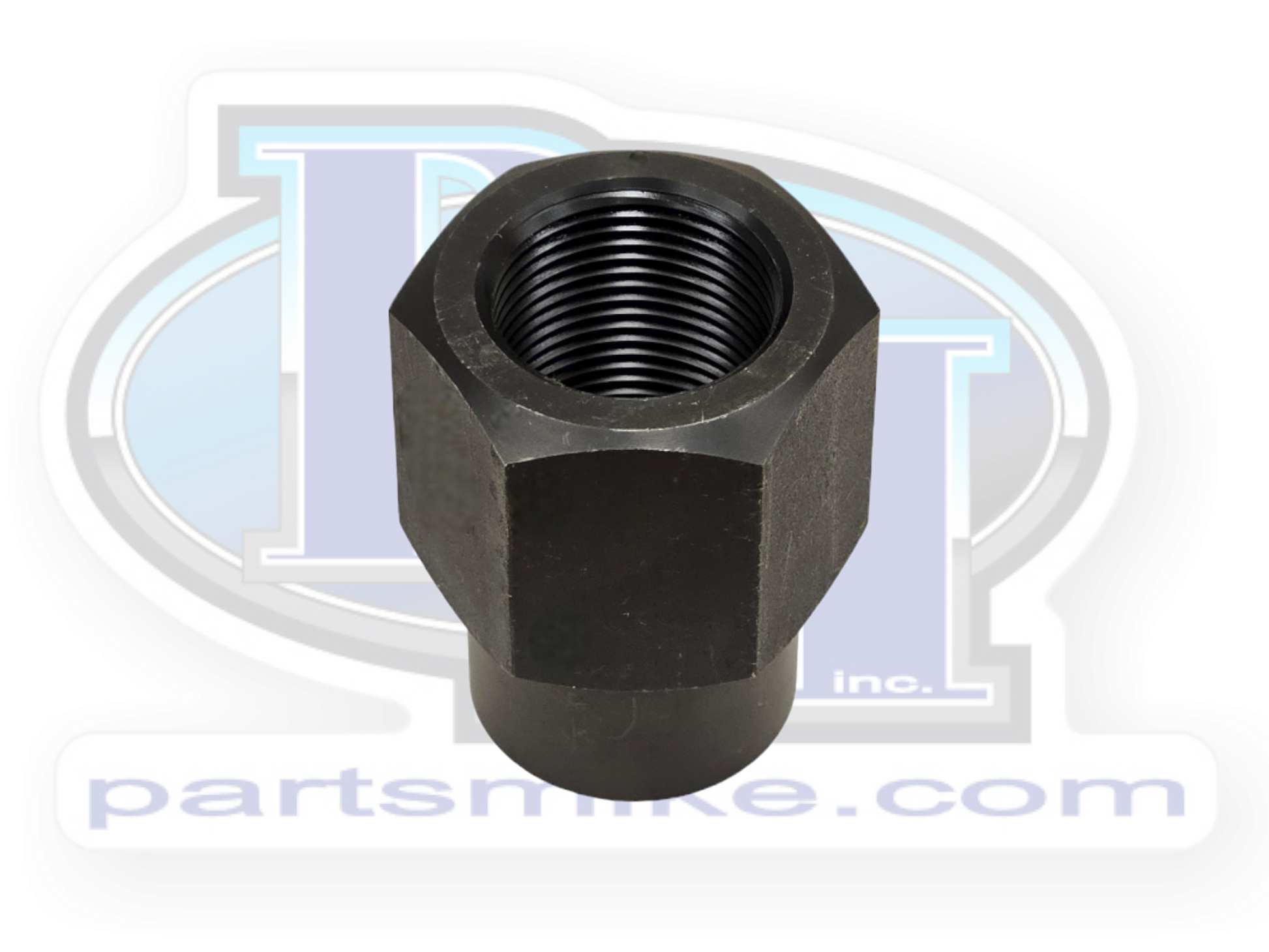

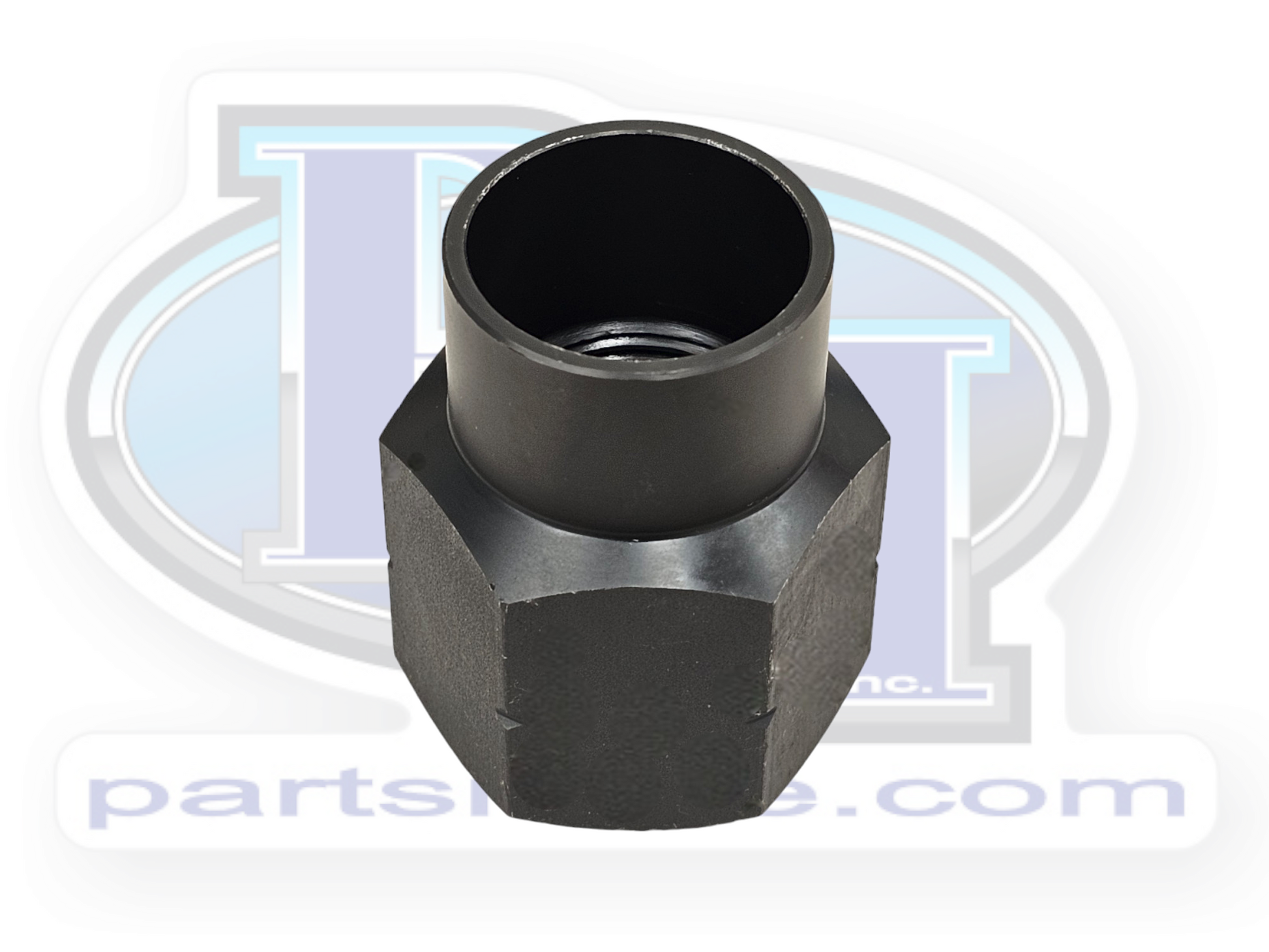

Tube Insert: 1-13/16" hex stock (left hand has mark), 1-1/2" ID tube, 1"-12 threads w/1-1/2" of threads

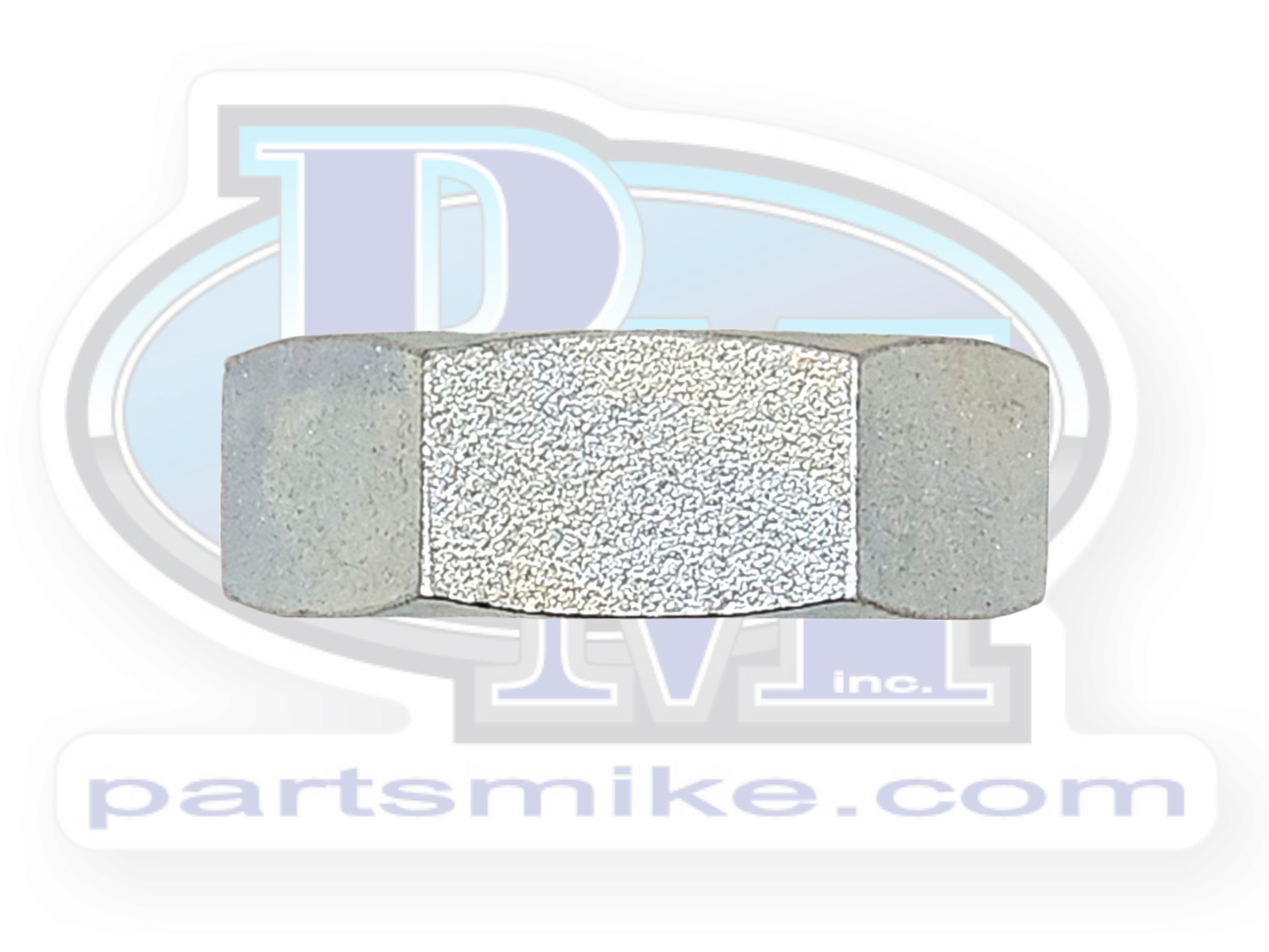

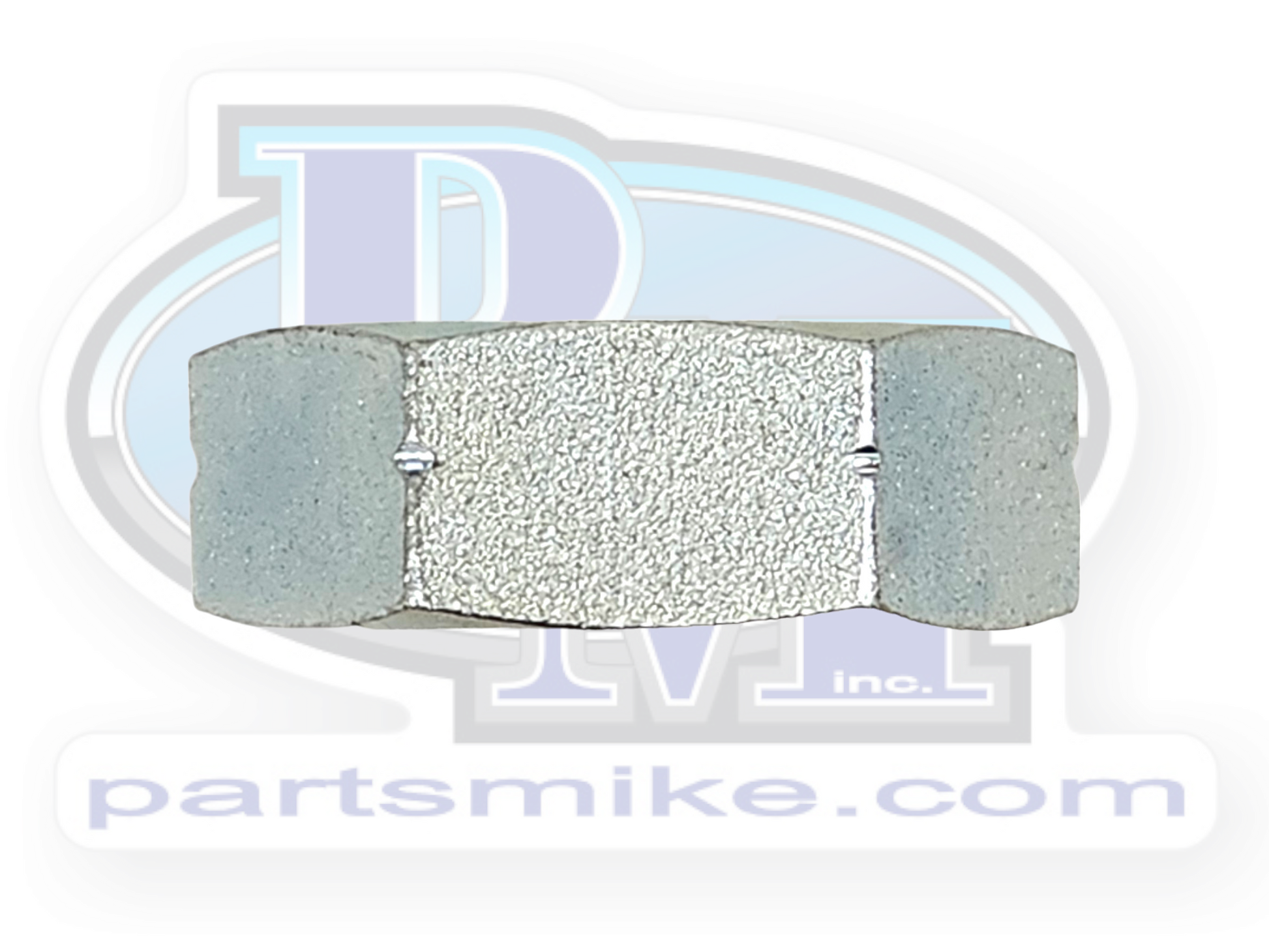

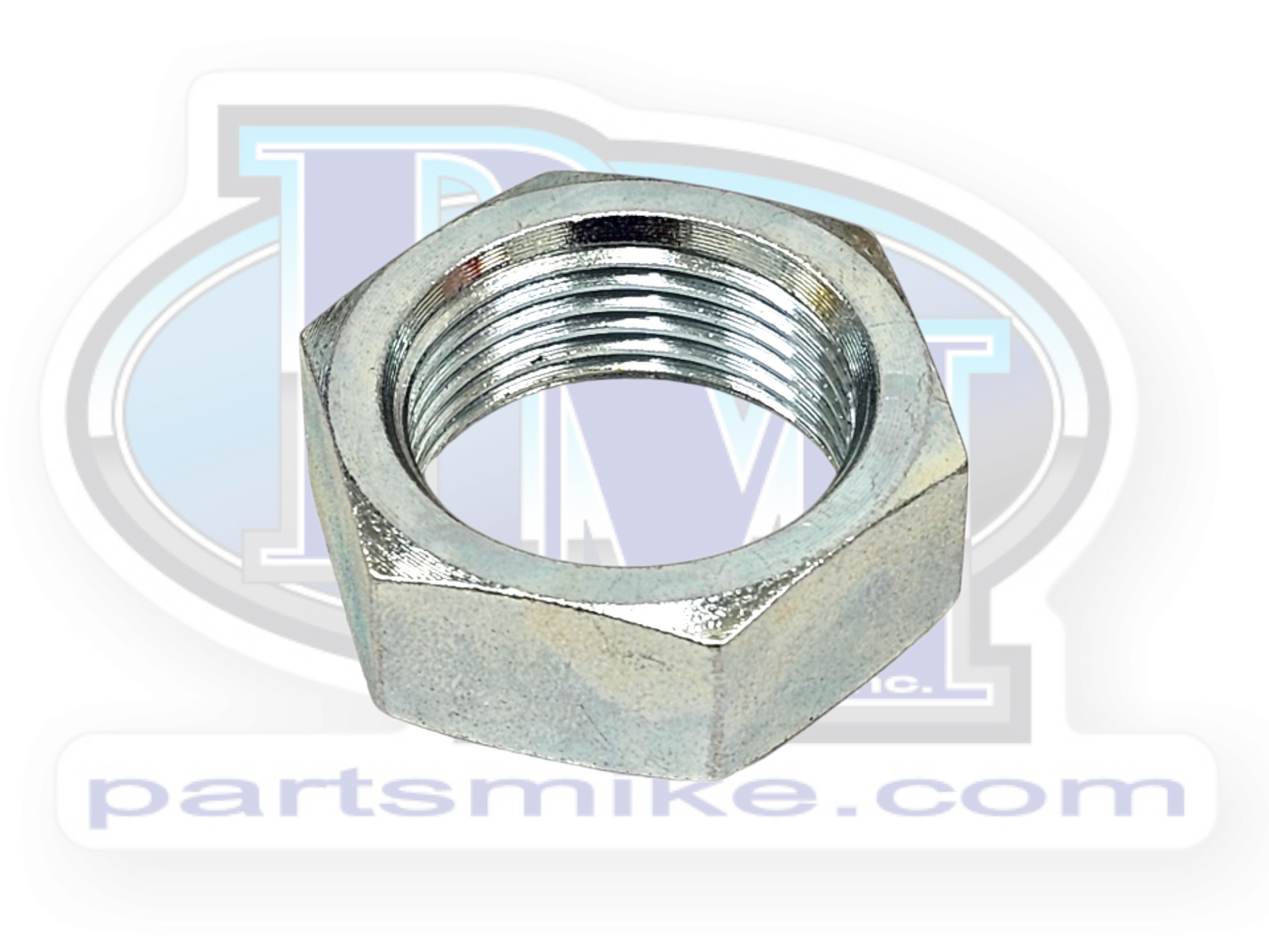

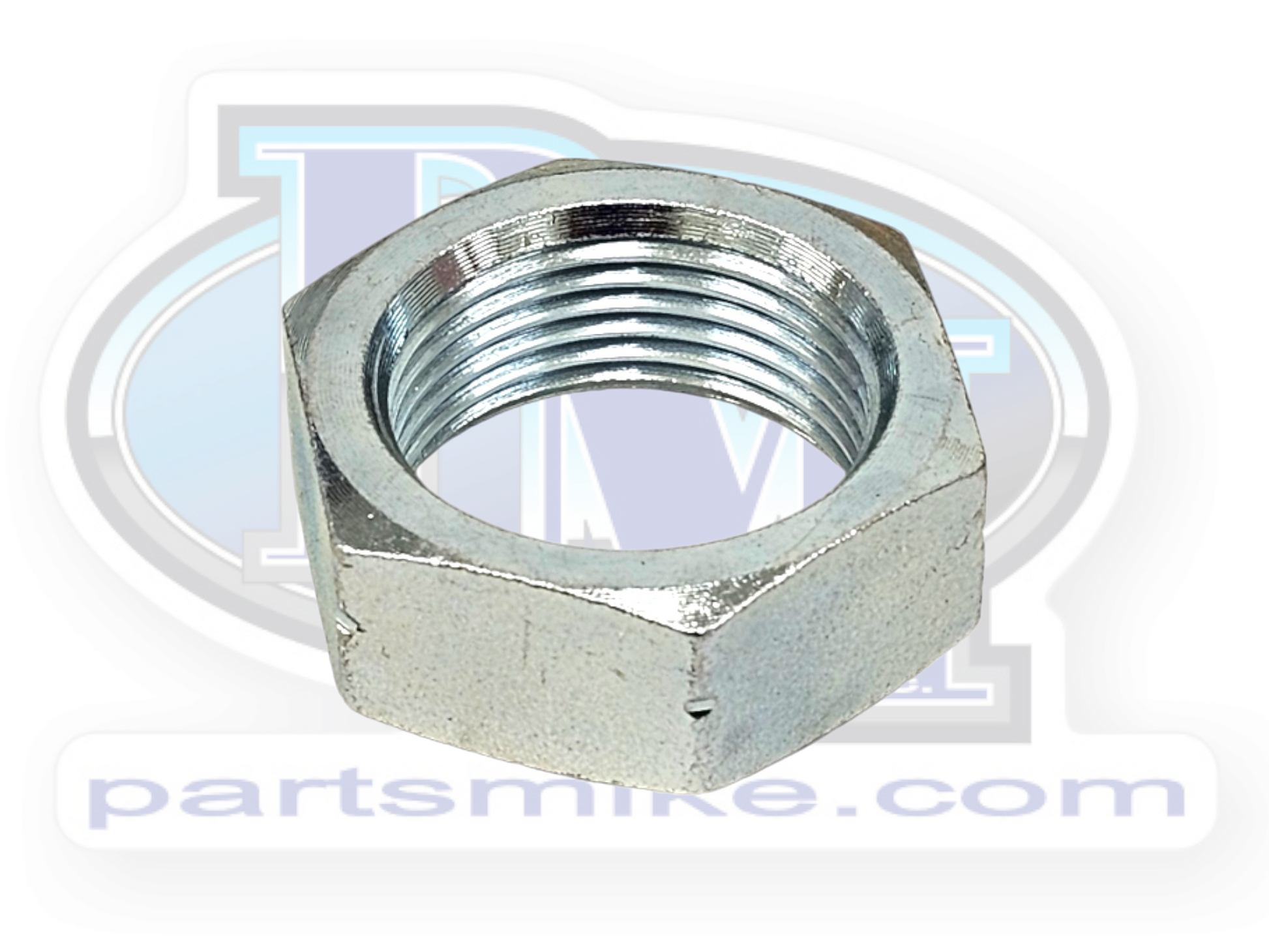

Jam Nut: 1"-12 threads, 1-5/8" hex, 5/8" thick
Misalignment Spacers: 1" Heim hole, stainless steel, 5/8" bolt hole
