Flange Kit, Seal, Nut, and Hardware

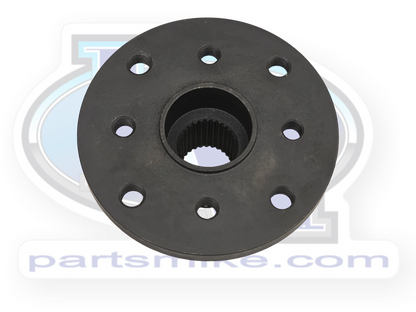

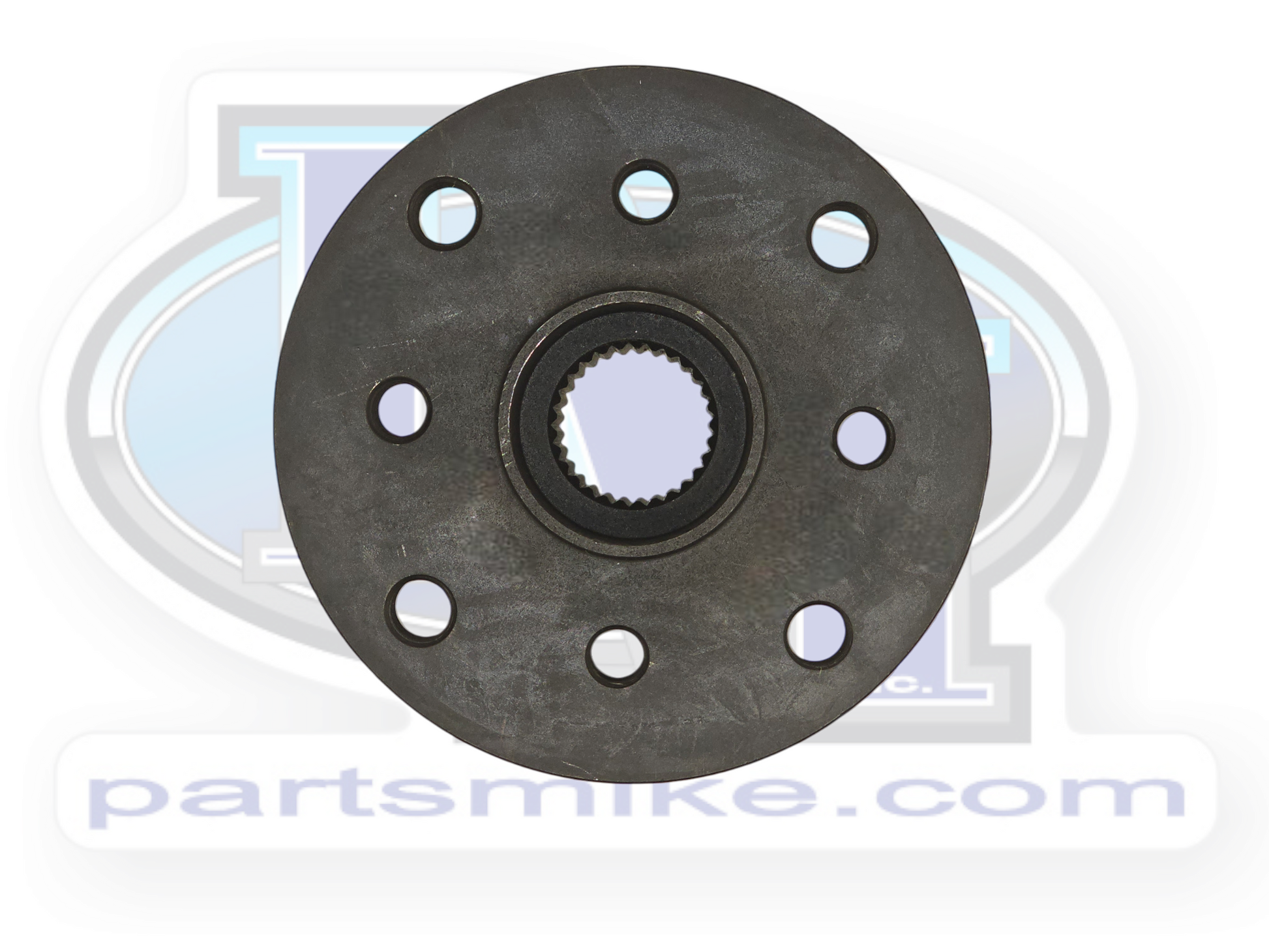

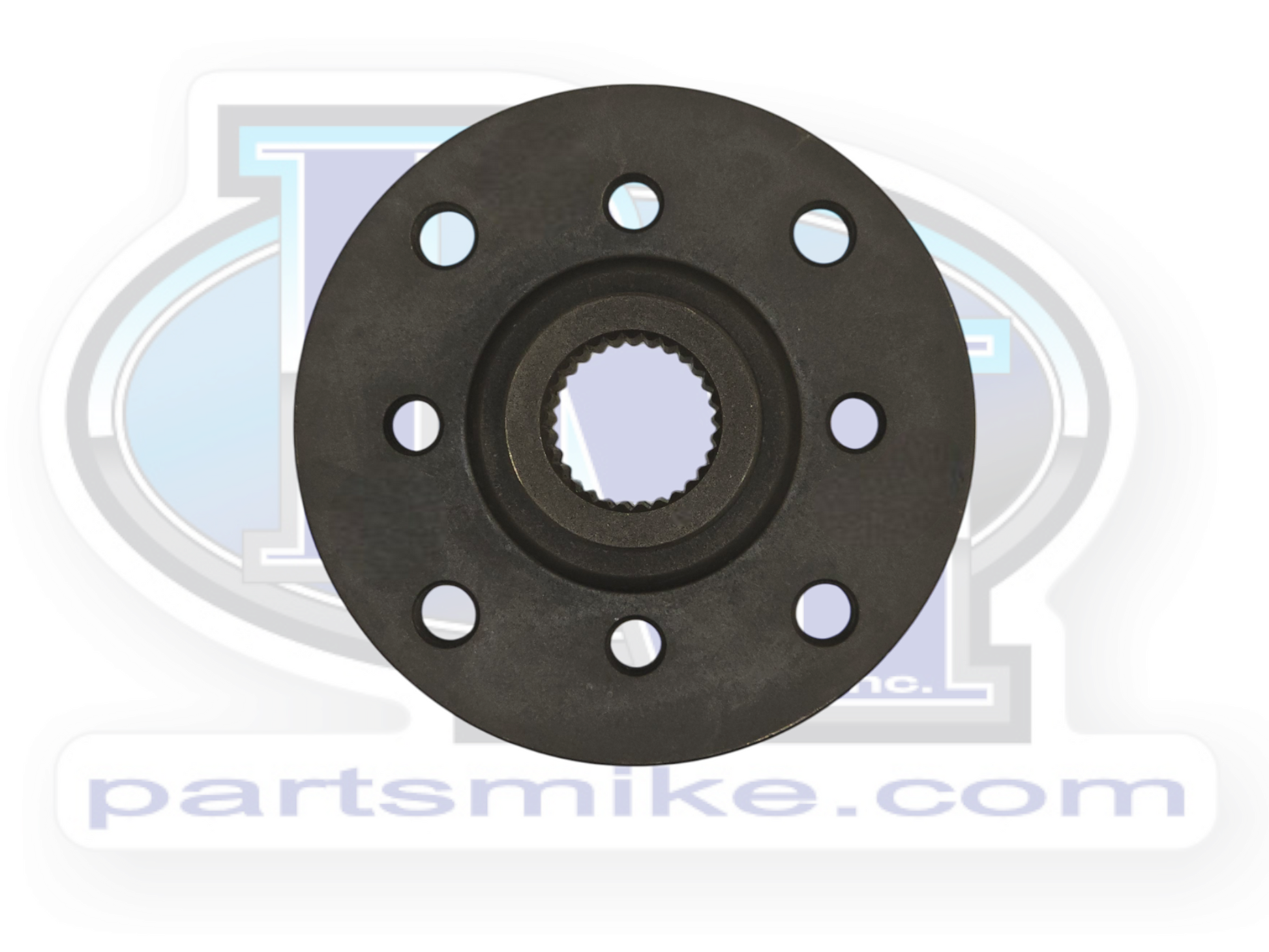

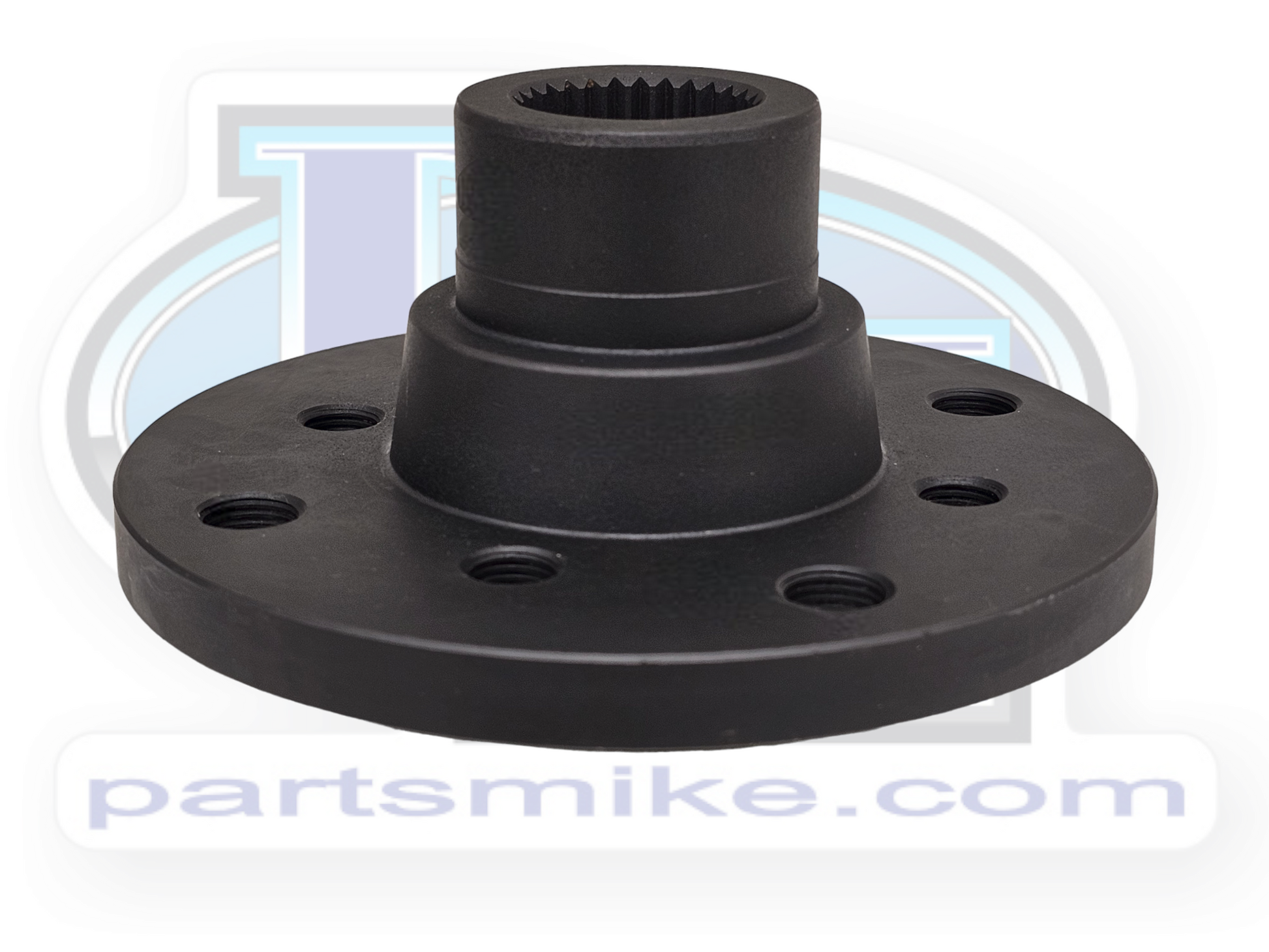

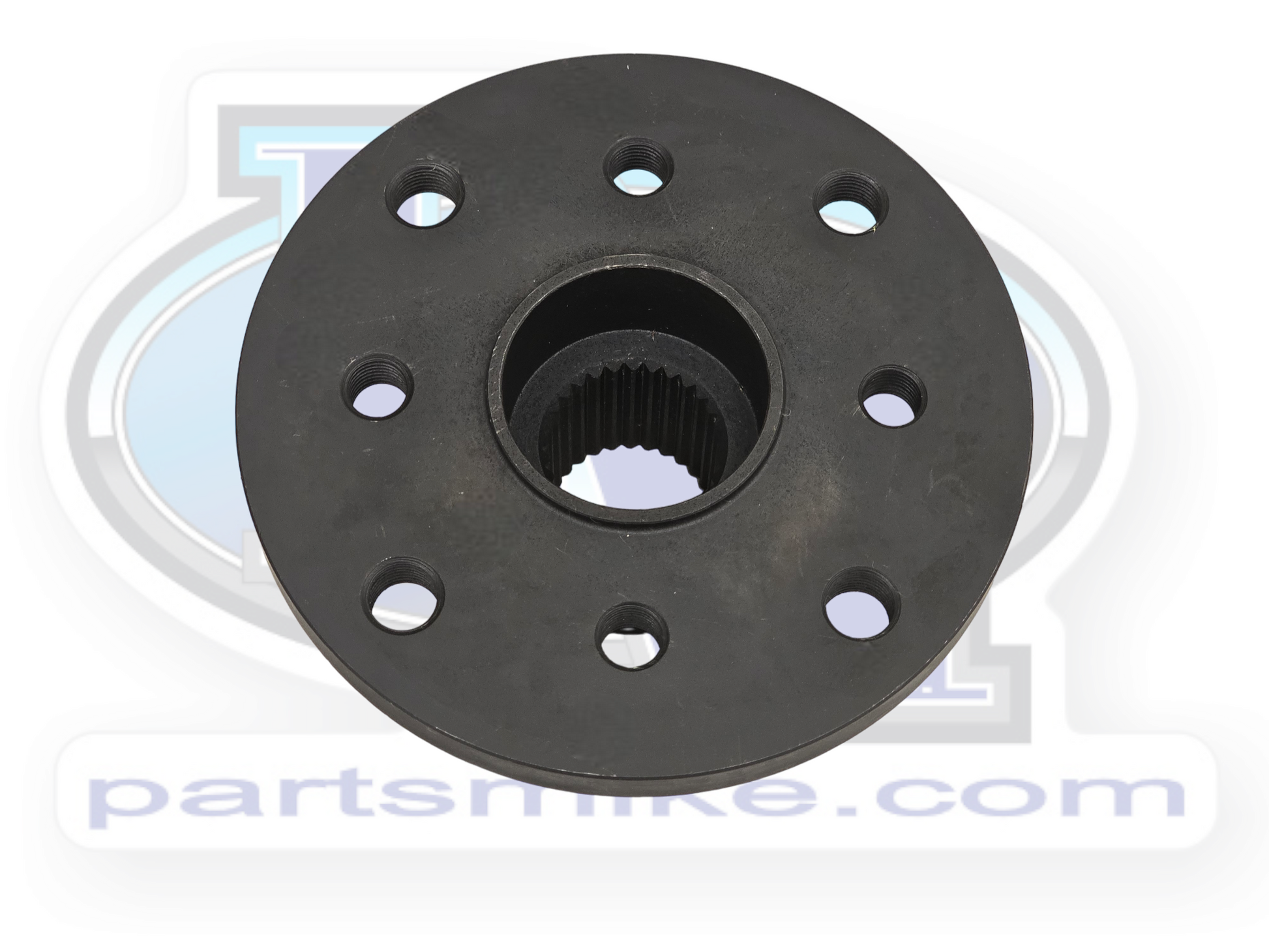

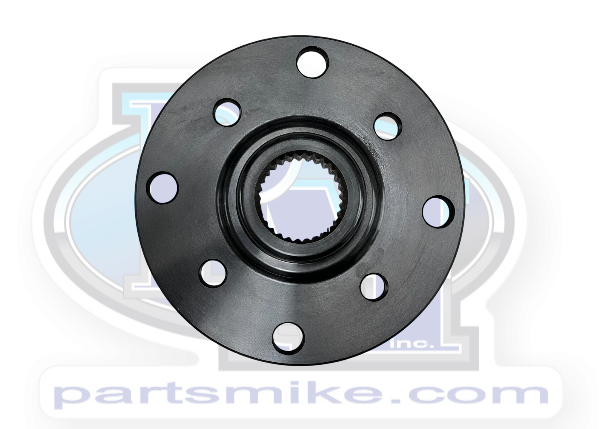

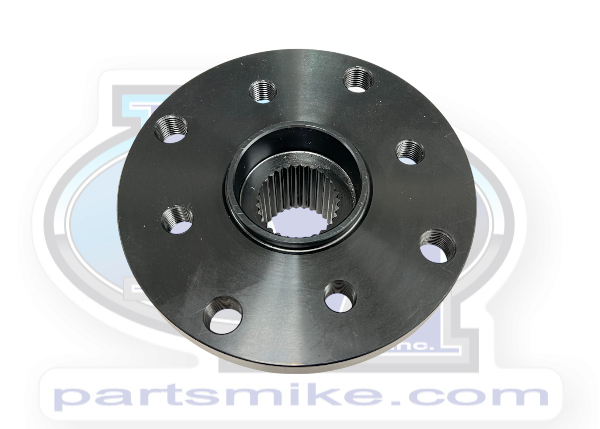

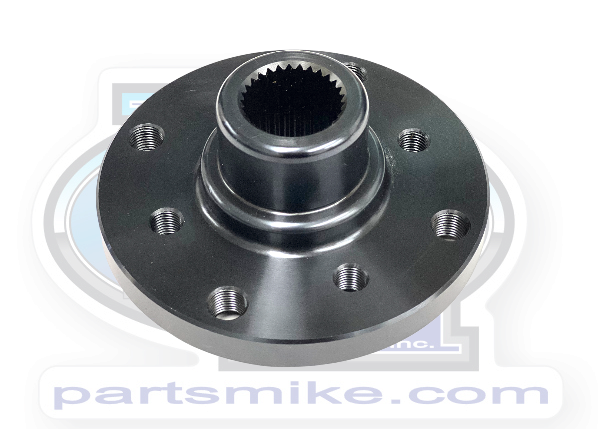

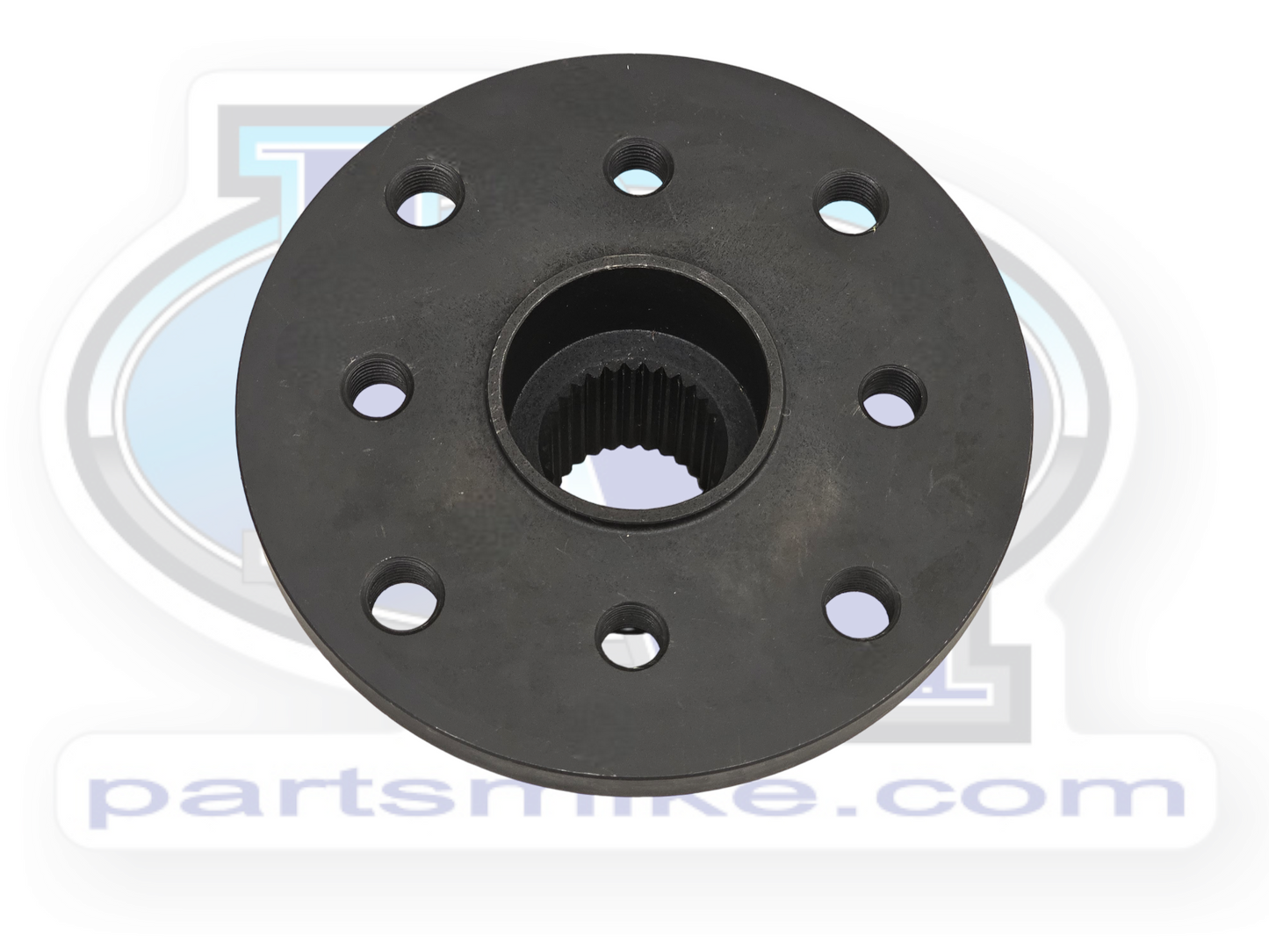

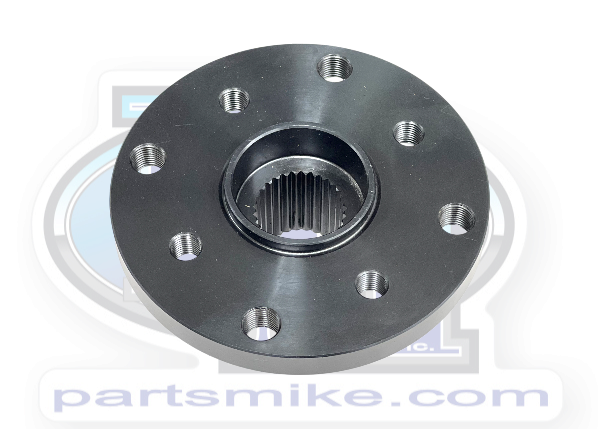

Dana 60/70 flange for 1310/1350/1410 drive line flange yokes. Flanges are super beneficial at the axle end of the driveline because if you get hung on a rock, round rolls, but a normal rectangular yoke, not so much.  The flange is made from AISI 5140 FORGED steel, and warrantied for LIFE when you get the hardware!

There's options to save you from hunting around our website (or our competitors ;).  Details about the hardware option is below the dimensions, scroll down!

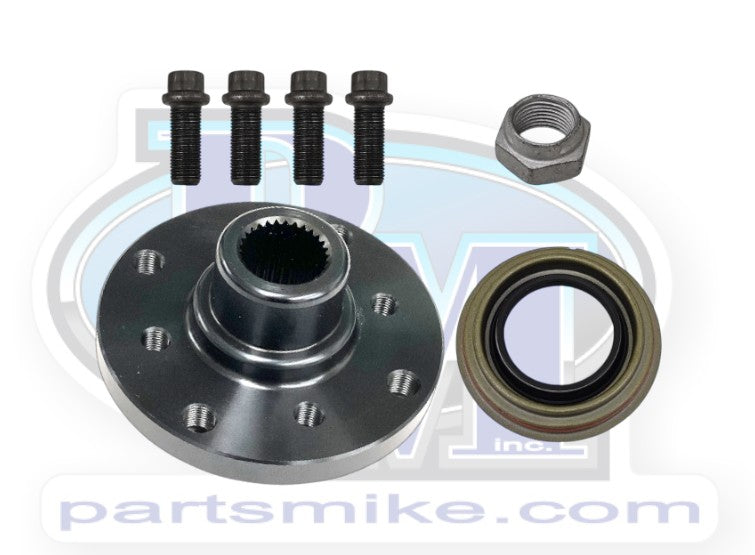

Buy the kit!  Kits include the flange, pinion seal, a fancy pinion nut, and real hardware.  If you don't know already, you'll find out that the OE pinion nut for the Dana 60 uses a 1-5/16" socket.  What most people don't know is that there's a jump in the wall thickness of a socket when you go from 1-1/4" to 1-5/16.  The result of this increased wall thickness is a socket that's too fat to fit inside of the yoke.  Most people grind down the socket to fit, or buy a SnapOn one, but we came up with a better solution.  The nut that comes with our kit threads right onto the pinion, but uses a 1-1/4" socket!  No expensive tools, no fabrication, it just works.  Please keep in mind that until you get our nut on there (i.e. to get your nut off) you will need to do something special.

Dimensions:
Overall: 5.45" round, 2.37" tall (EXCLUDES pilot), 0.45" thick flange
Small pattern: 3-1/2" c-c (diagonally), 7/16"-20 threads
Large pattern: 4-1/4" c-c (diagonally), 1/2"-20 threads
Pilot: 2" male (0.01" stick out)
Splines: 29

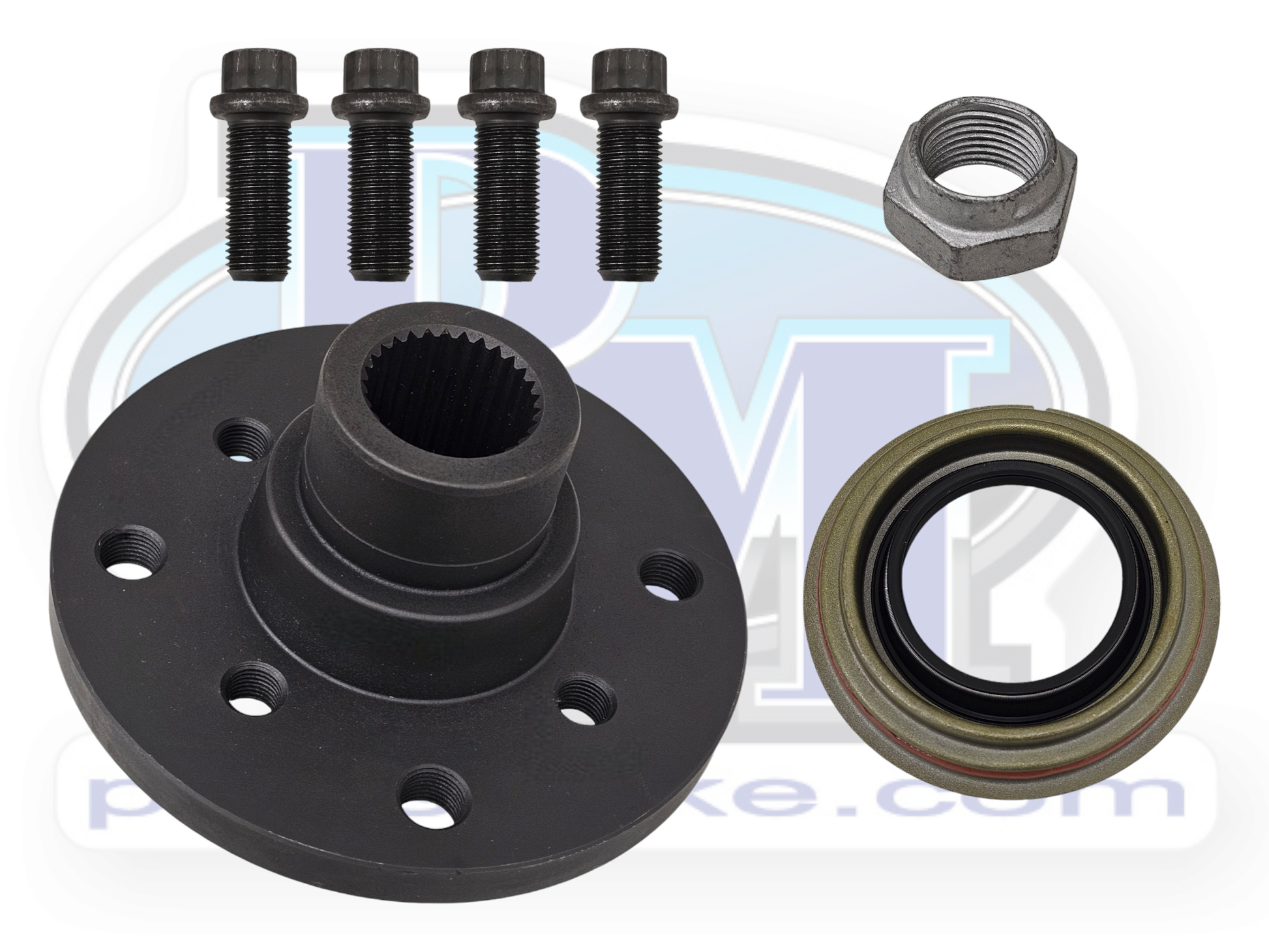

DM3055GK - Flange with pinion seal, pinion nut, and real hardware

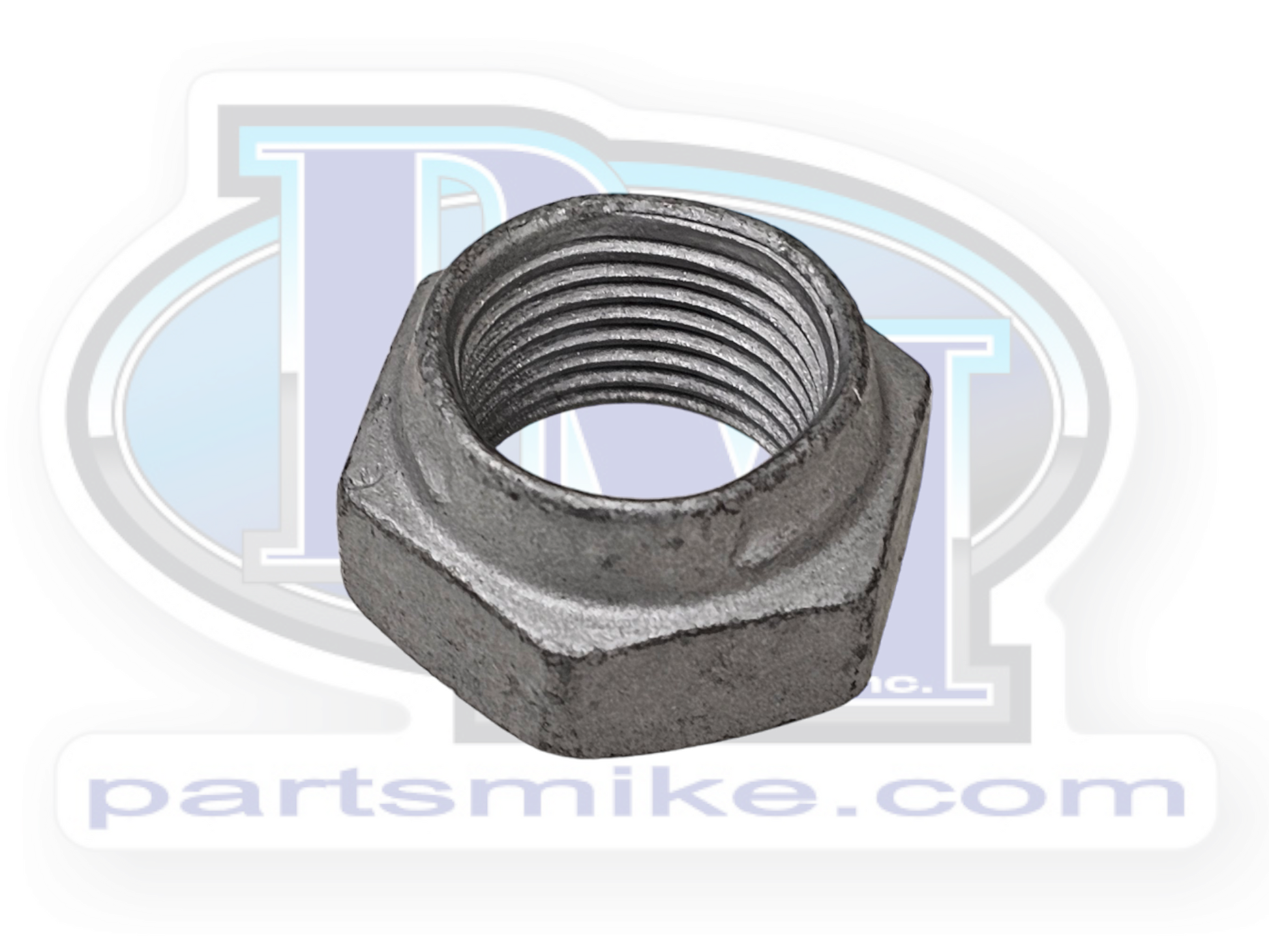

• Pinion nut - 7/8"-14 for 1-1/4" socket size

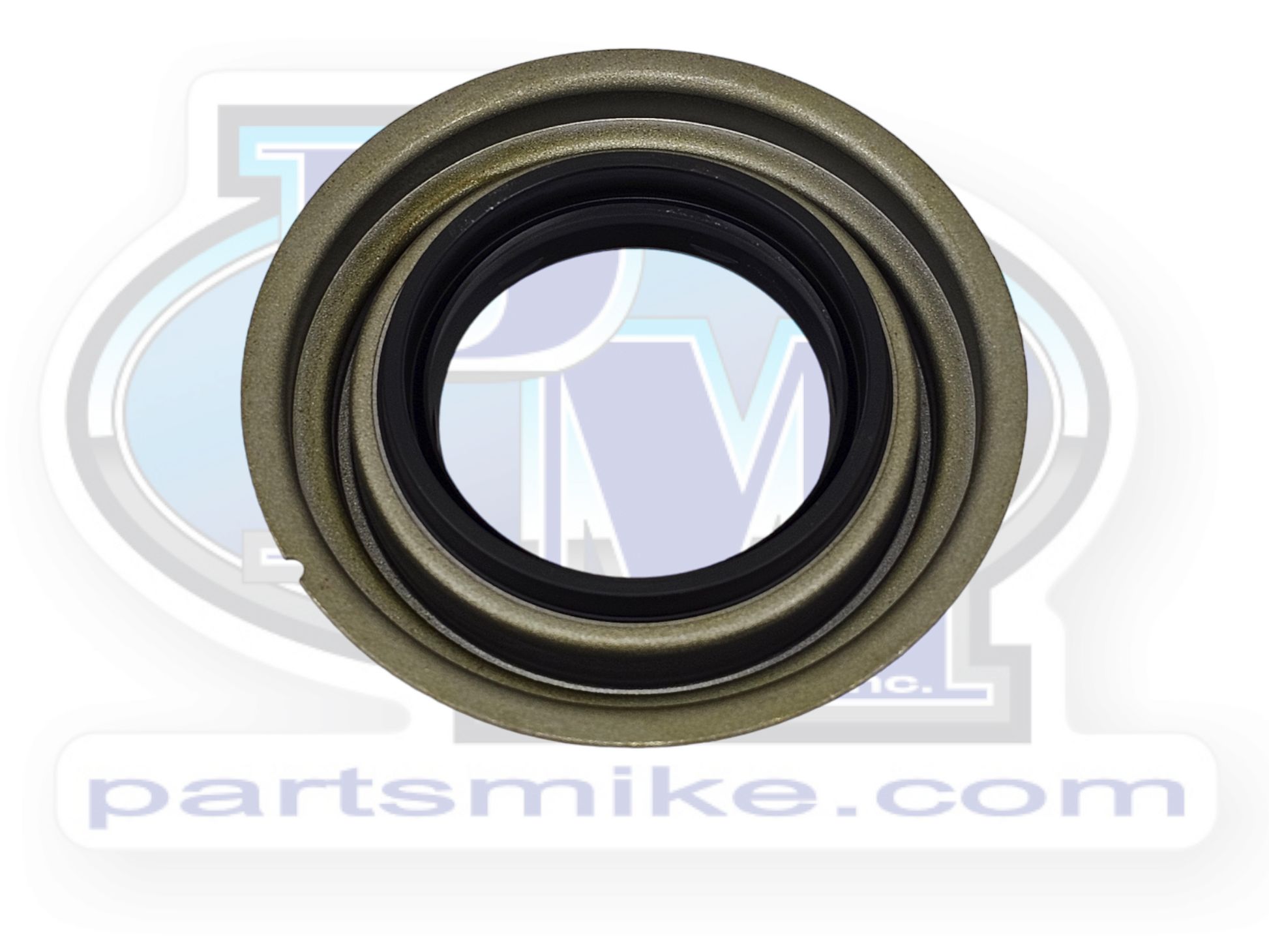

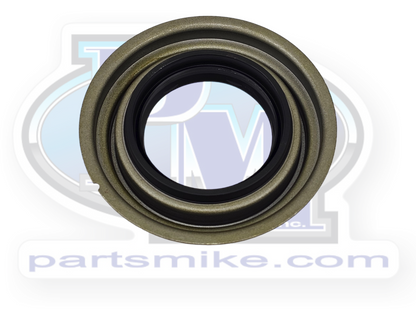

• Pinion seal seal - 1.87" ID, 3.165" OD

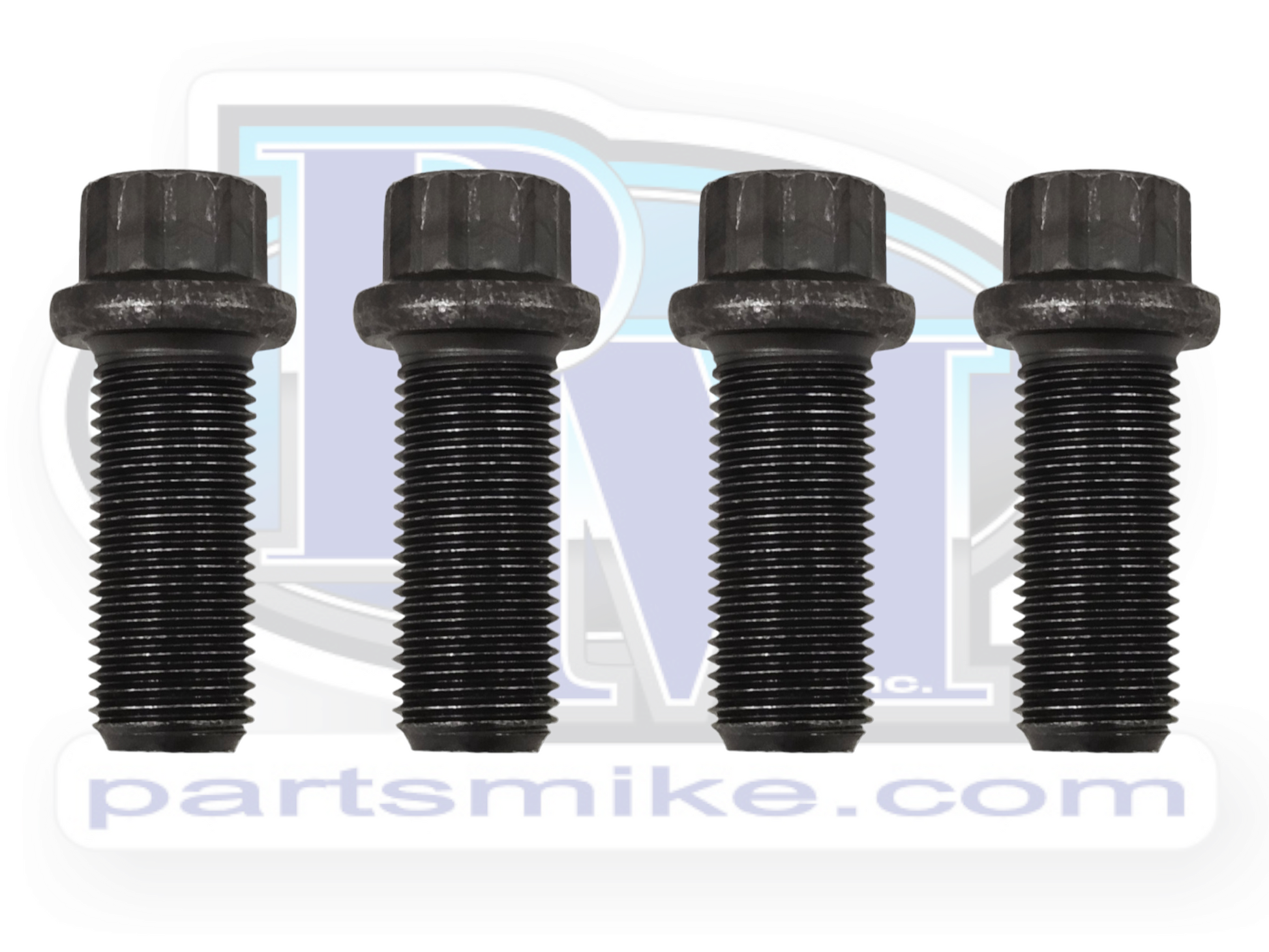

• Hardware -  Four 1/2"-20 x 1-1/4" 12 point bolts (uses 1/2" 12 point socket or wrench)
