Dodge Dana 60, Spring Plate, Front

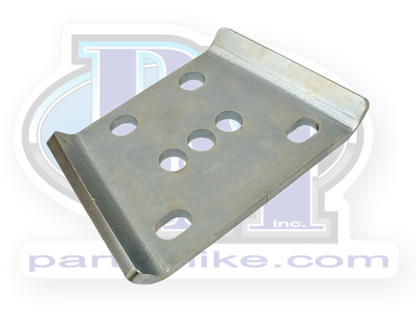

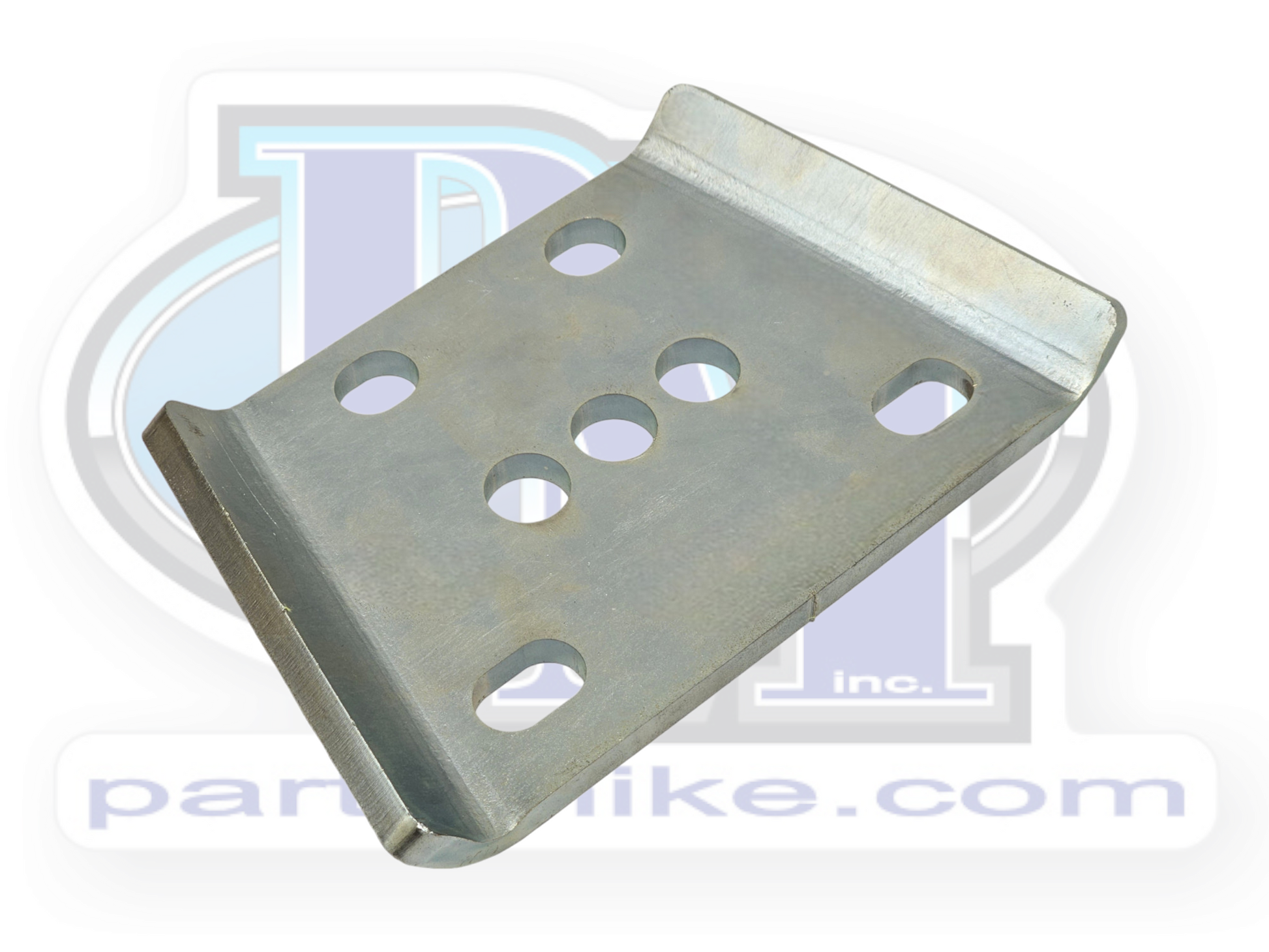

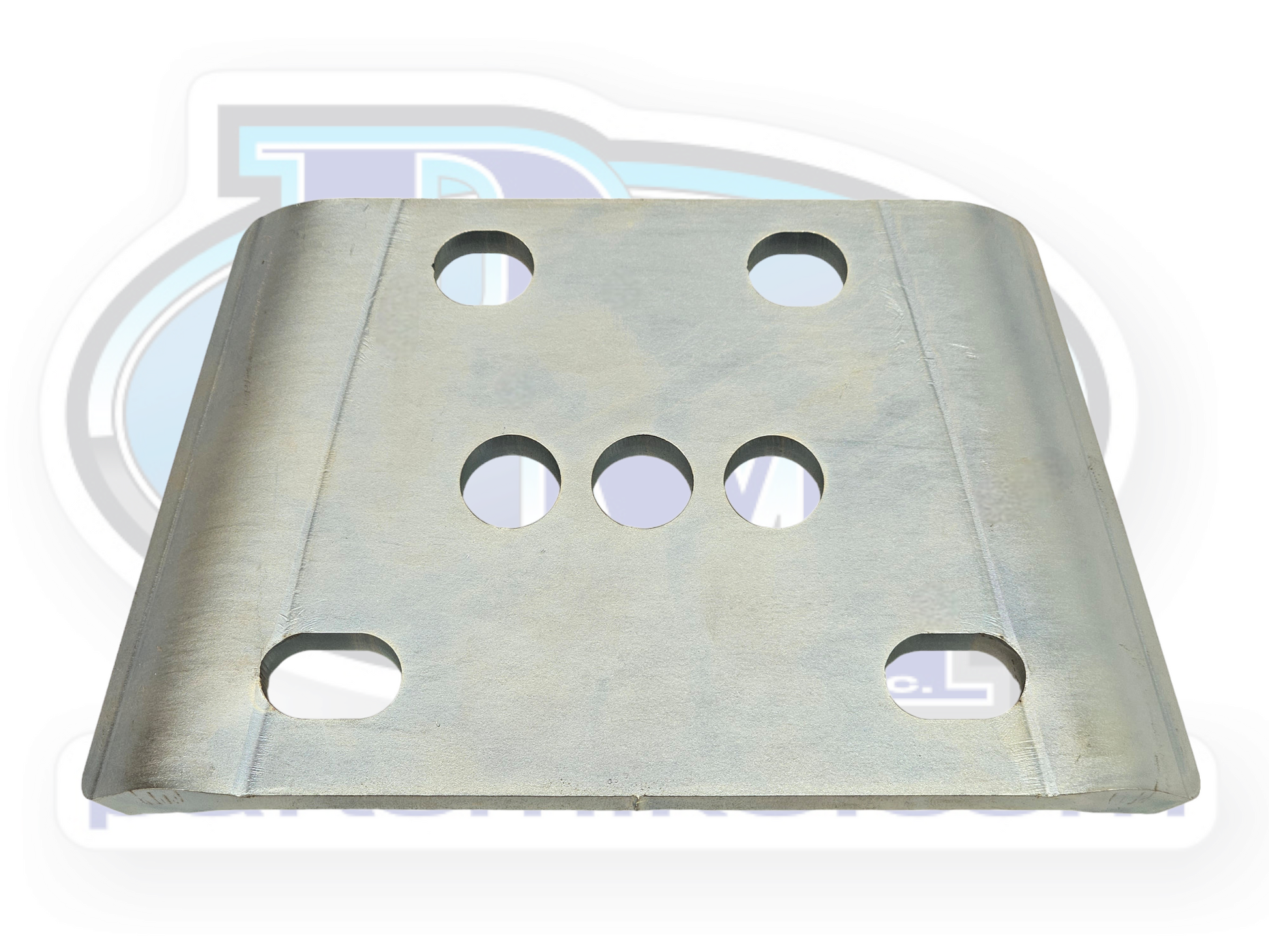

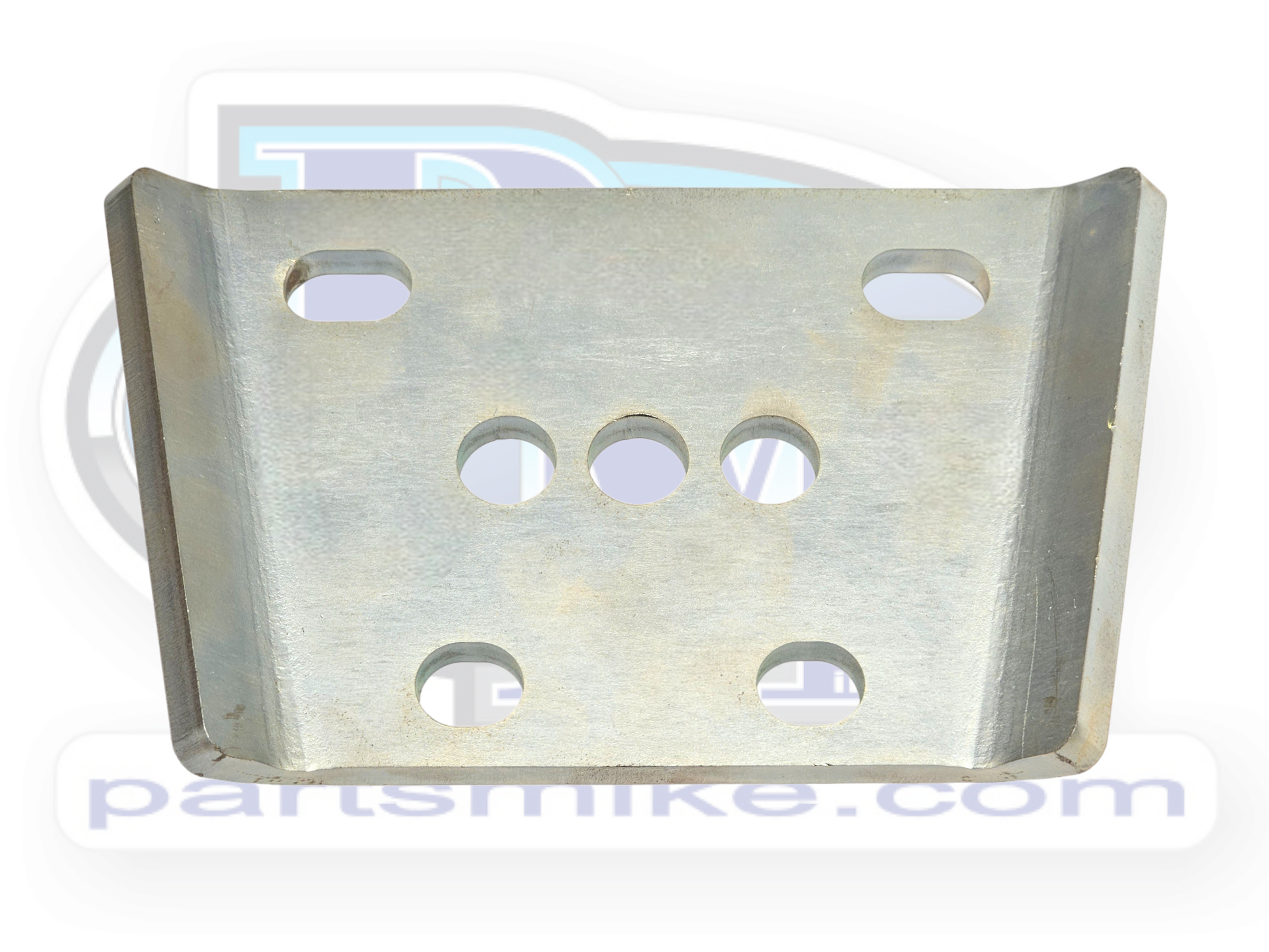

This spring plate is designed to fit Dodge Dana 60 front axles.  It accepts a 4" U-bolt and has two narrower holes for the studs that protrude from the housing.  Note the Dodge has 9/16" studs with a 2-1/2" spread, and GM D60 uses bigger studs and has a wider spread.  See specs below and pictures if you not sure!

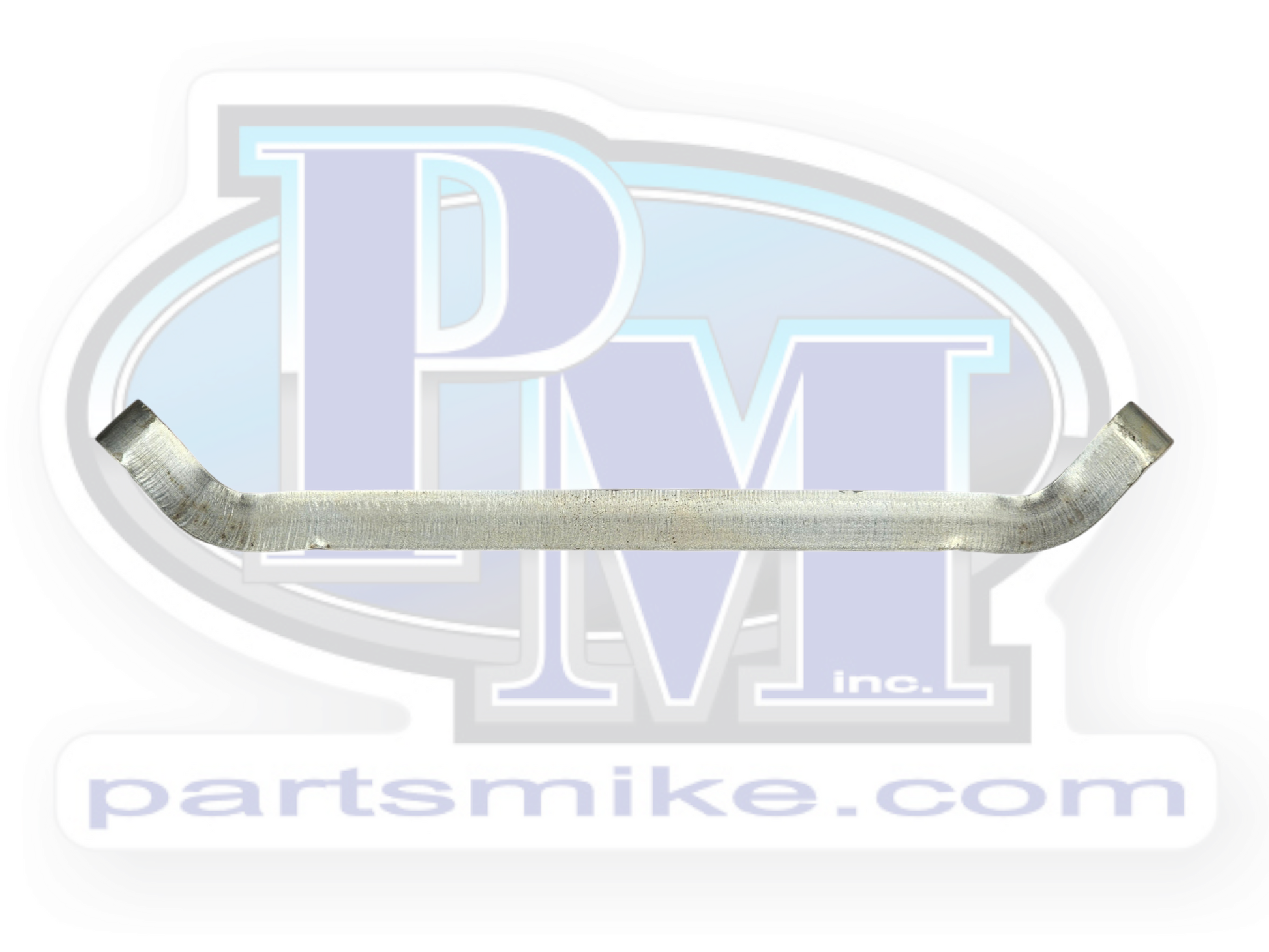

The plate is made from 3/8" plate steel and laser cut for a perfect fit.  The ends are bent to increase torsional rigidity, and keep the plate from twisting.  We offer this by itself, with a plate for the other side, or as a kit with both plates and the U-bolts/studs.  Select your choice from the drop down menu.

Dimensions:
Overall length:  8-1/2"
Overall width:  5"
Maximum U-bolt/stud diameter:  5/8"
Stud side center to center:  2-1/2" (slightly slotted)
U-bolt side:  4" U-bolt (inside of leg to inside of leg)
