Dana 44, Stud Kit, High Steer, 9/16"x3"

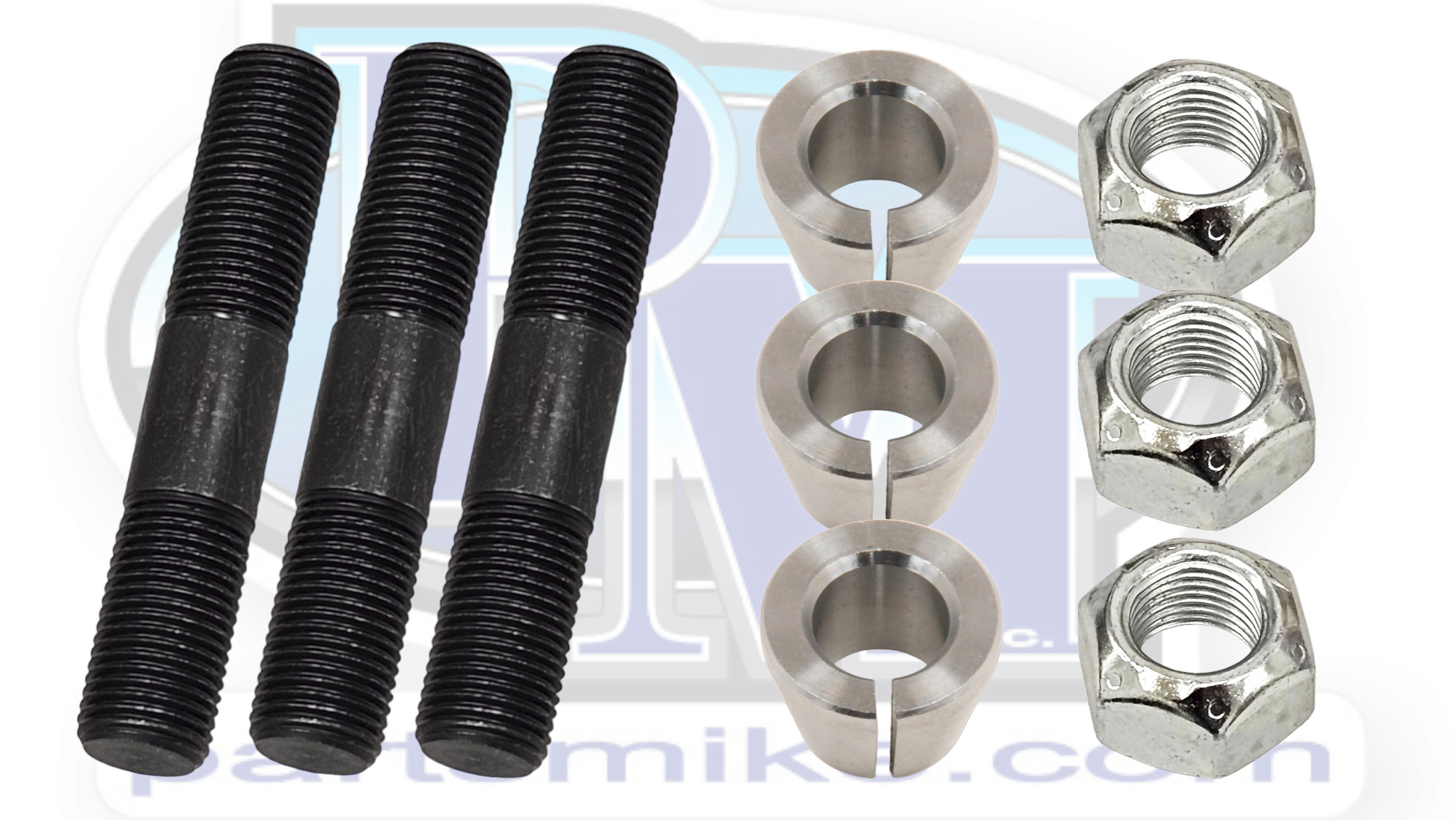

Dana 44 high steer stud kit.  The kit comes with 3 studs, 3 conical washers, and 3 lock nuts.  Each stud is 3" in length, and 9-16"-18 on both ends.  It will work on all three holed Dana 44 steering arms, and with most arms with up to a 1/2" spacer (for thicker spacers search for part number PM5137-4-3PK).  This kit comes with everything you need to install your cross over set up on your Dana 44.

WARNING: This kit requires that you have flat top knuckles on your axle already milled, drilled, and tapped for high steer.  Though this may seem like a given to most, a couple people will read this and it will be useful ; )


Specifications:

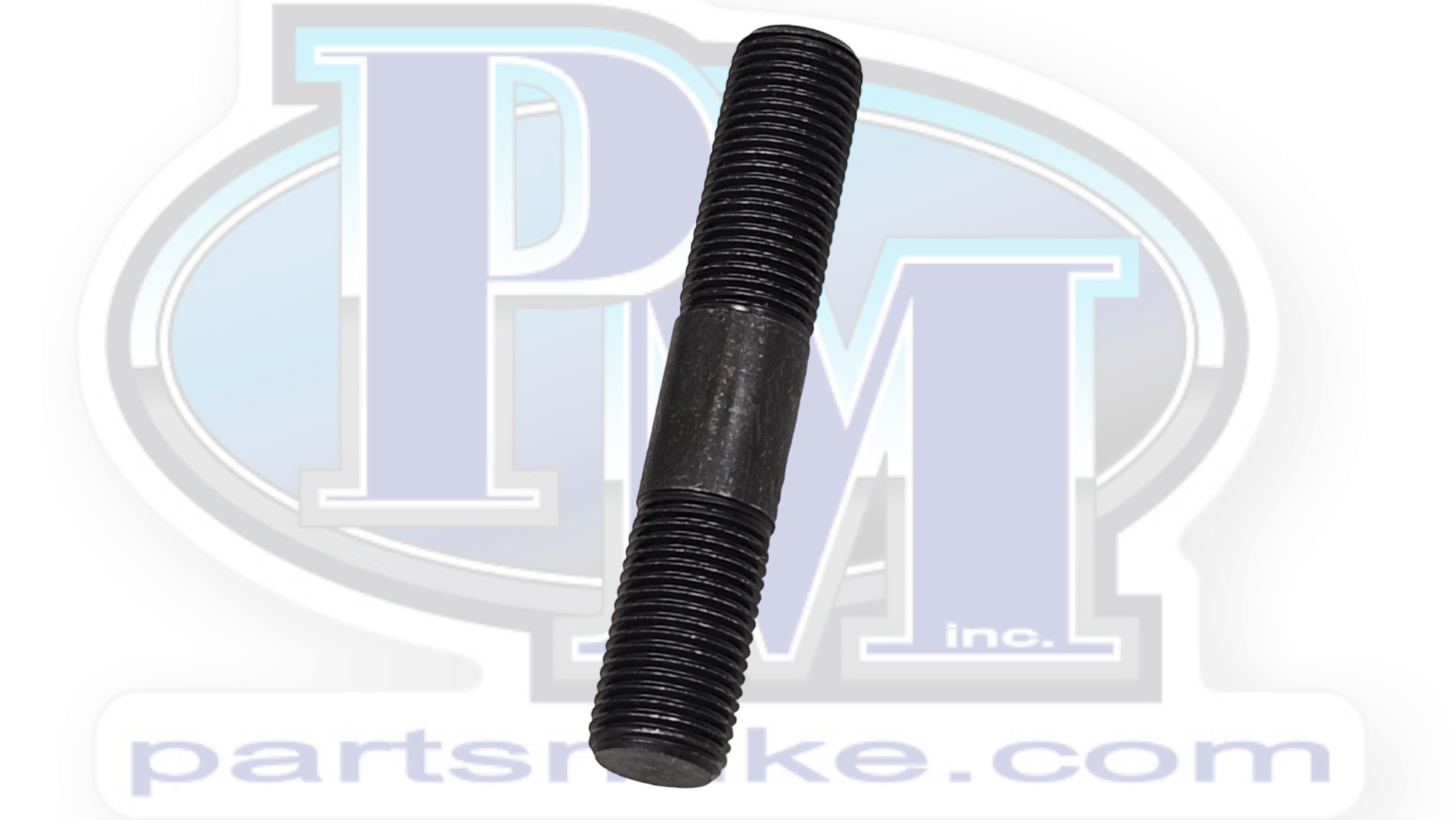

Stud

• Overall dimensions:  3" length, 9/16"-18 threads
• Thread lengths (approximate):  short end = 0.90", long end 1.17"
• Shank length:  0.93"

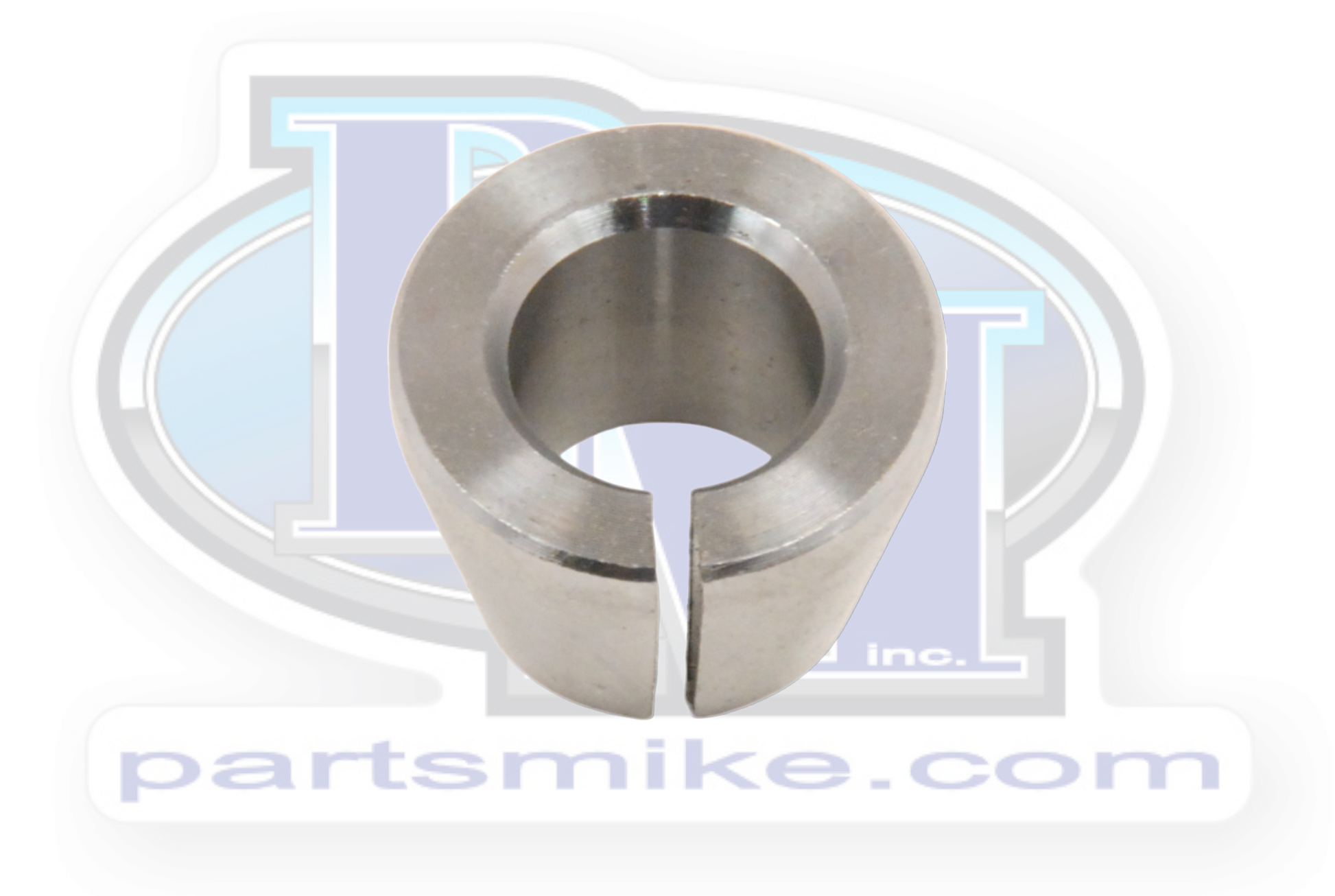

Conical washer

• Height:  0.69
• Hole ID:  9/16"

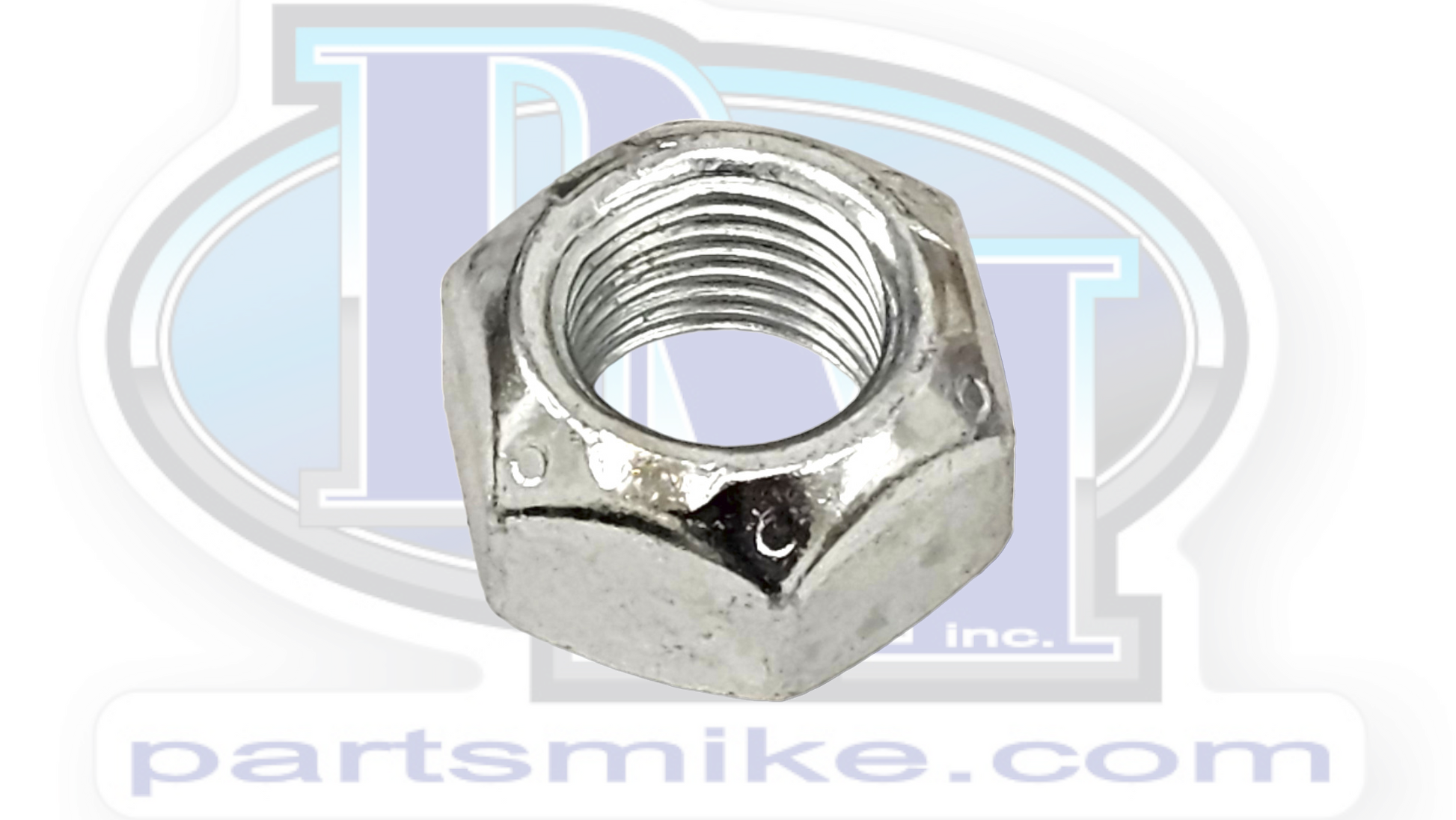

Lock nut

• Hole size:  9/16"-16
• Height:  0.48
• Locking mechanism:  Top lock (mechanical)
• Wrench size:  7/8"
