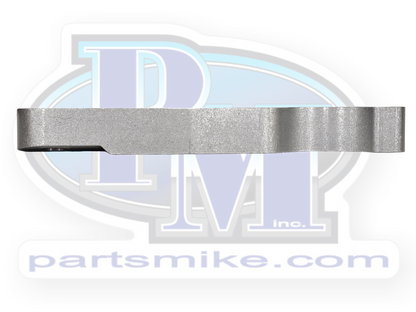

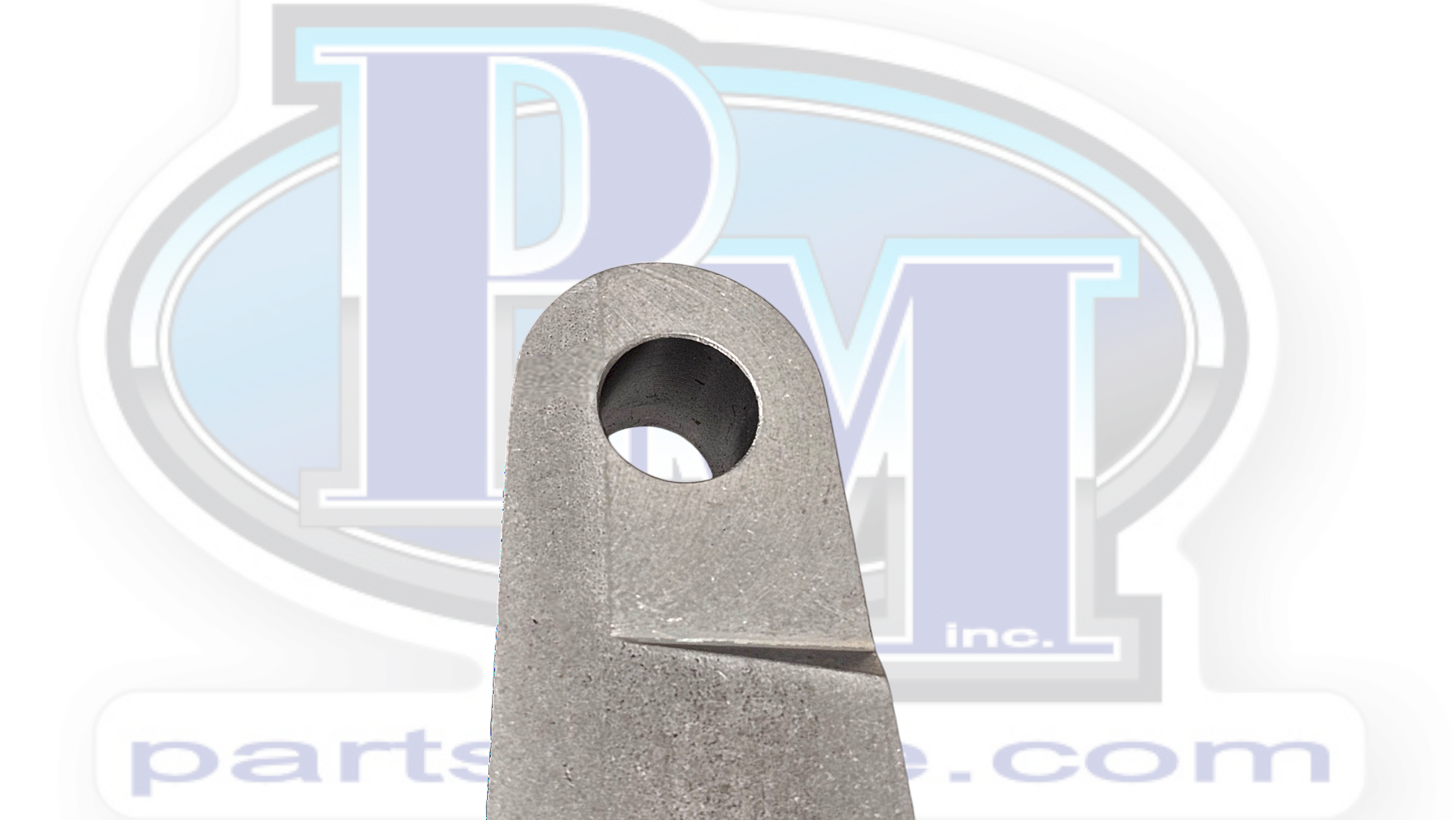

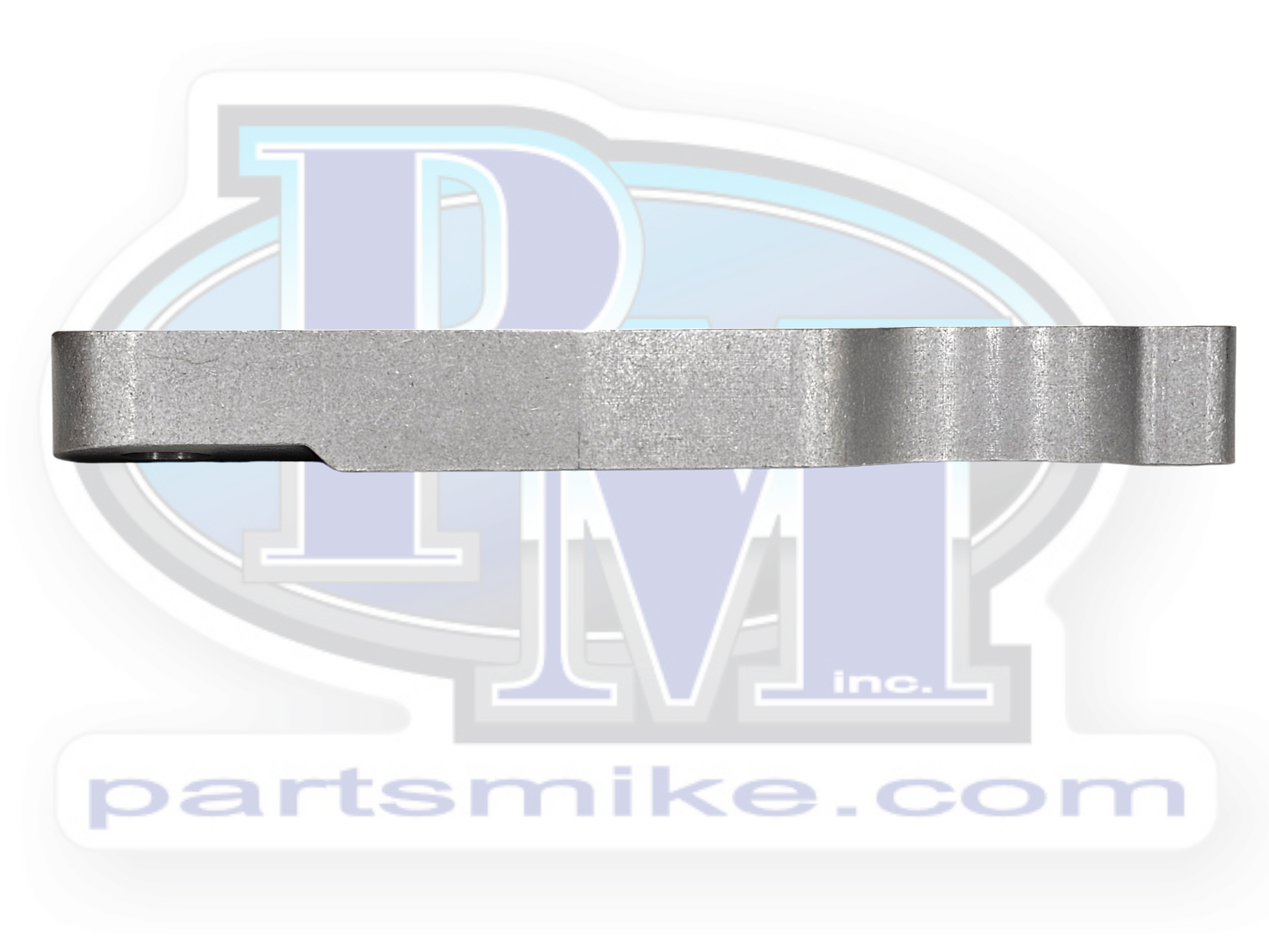

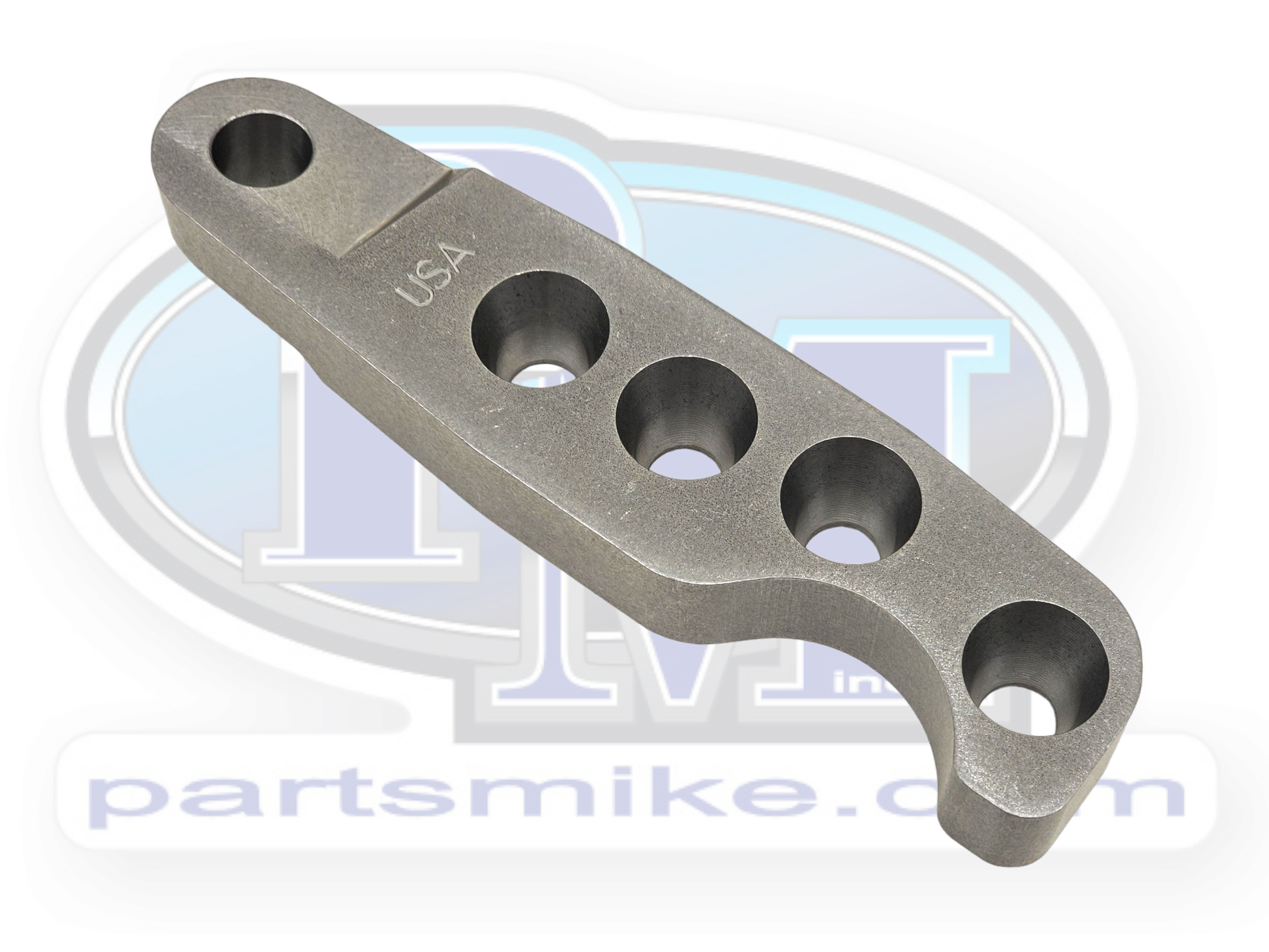

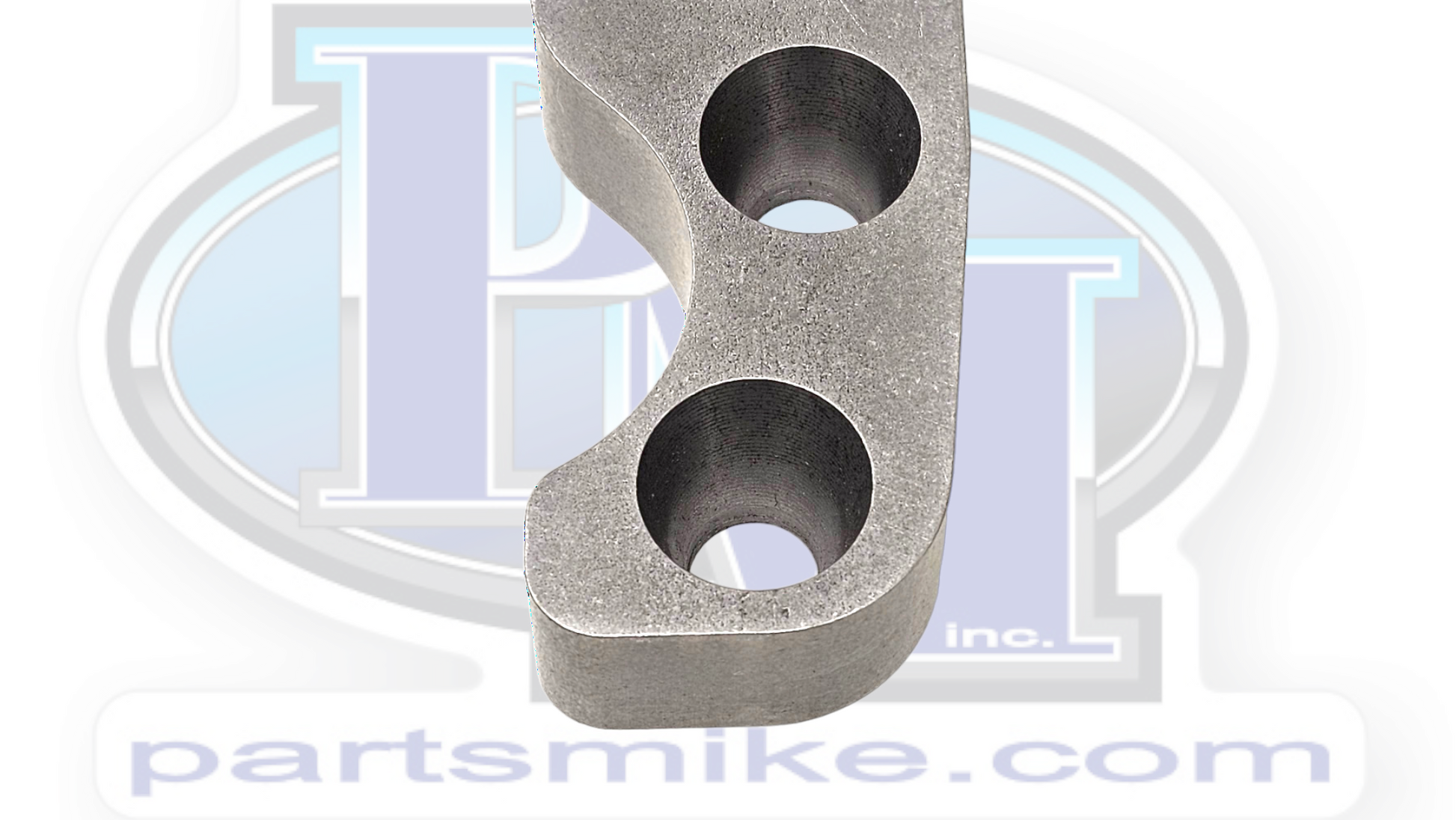

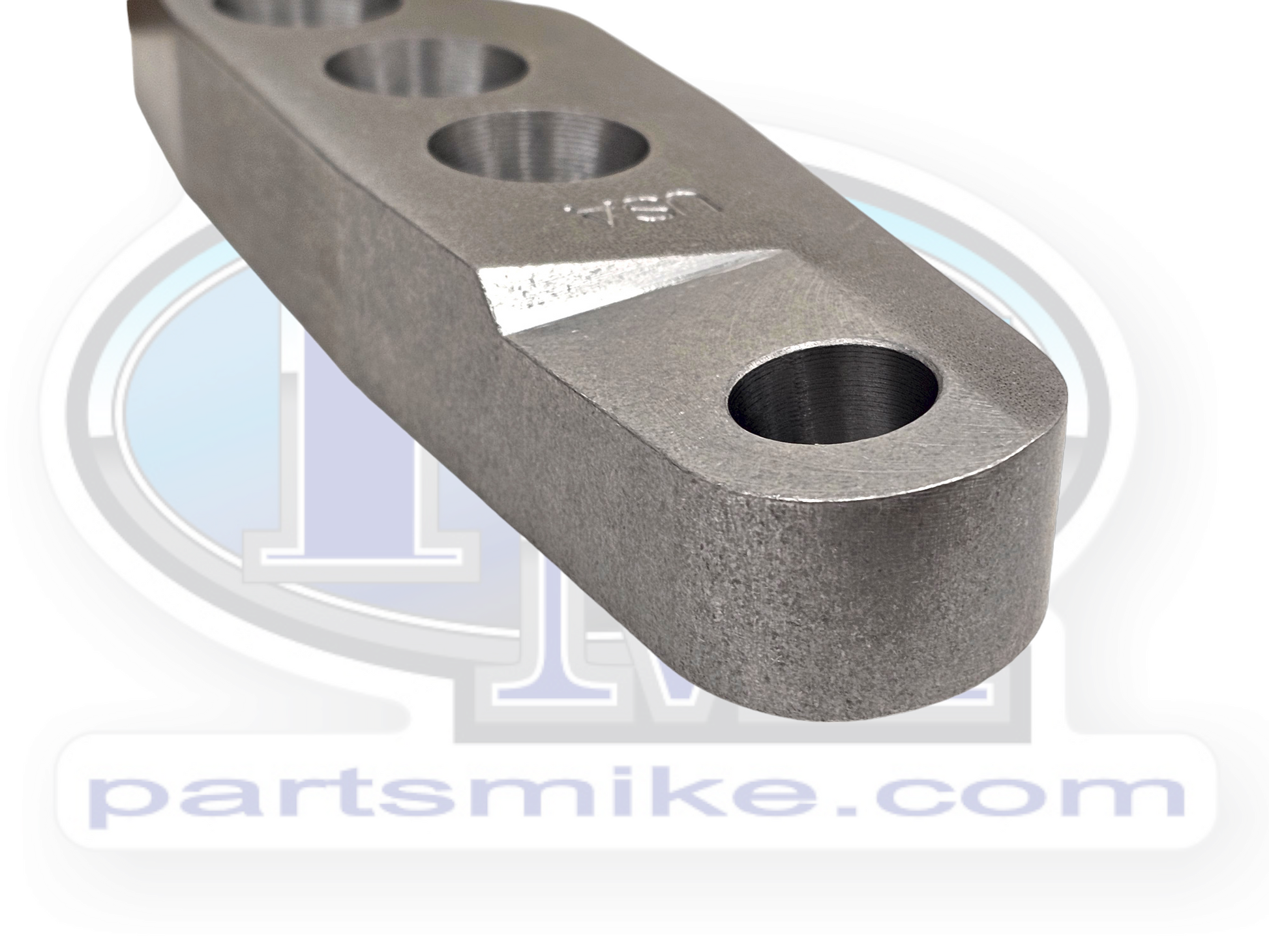

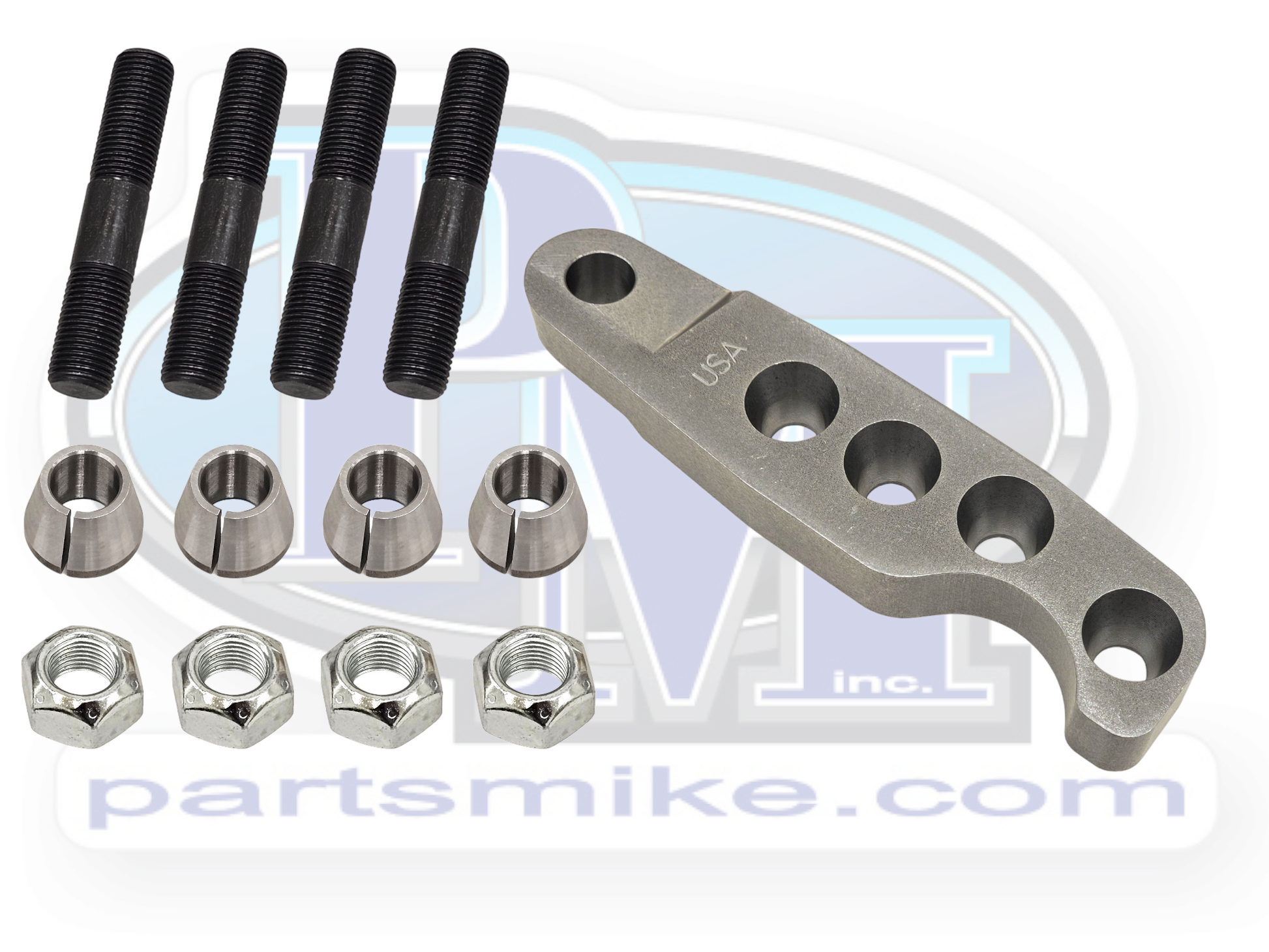

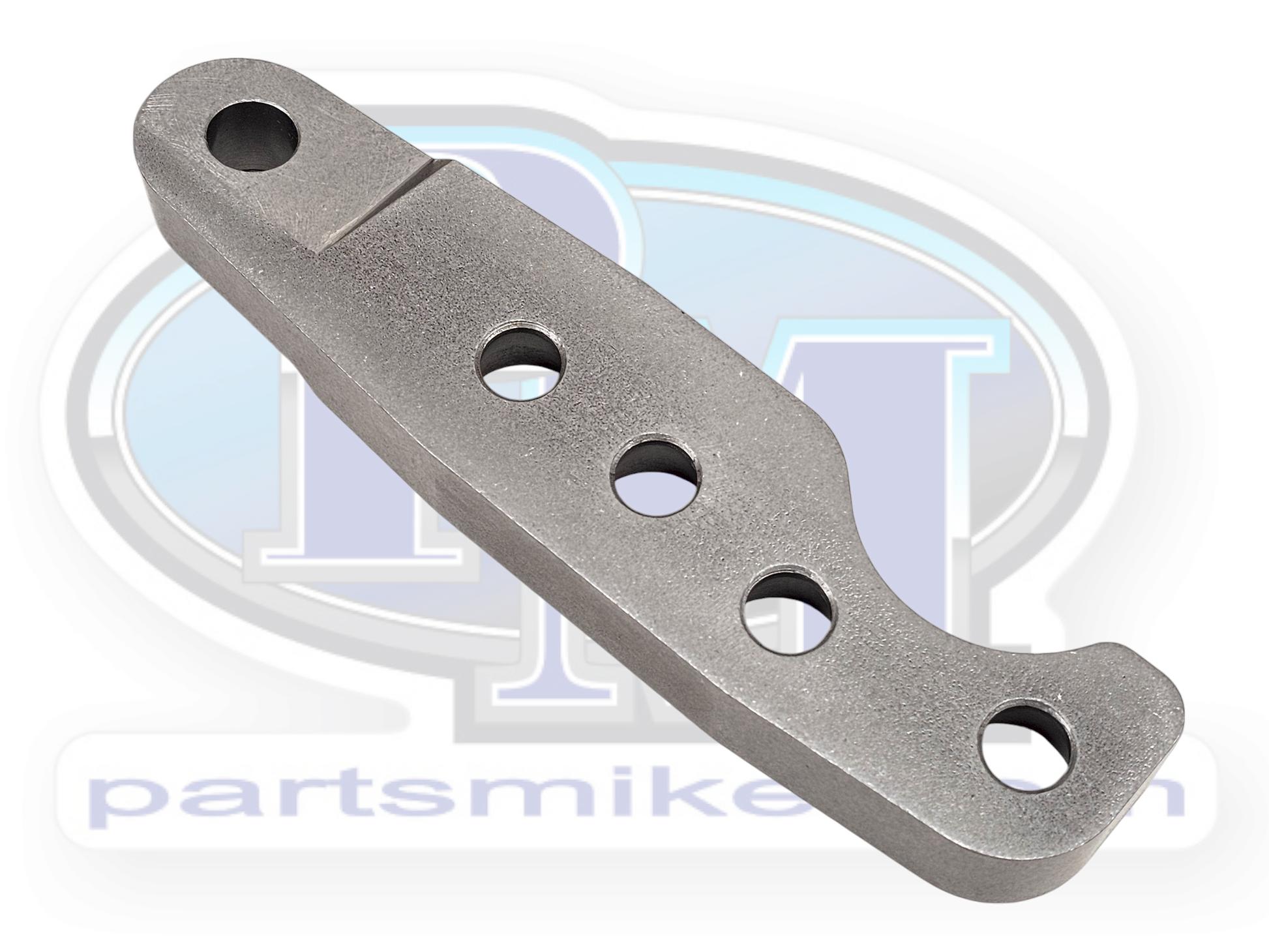

D44 cross over (passenger's side), 1" tall. This steering arm is 1" thick, and has 4 holes for HD knuckles. The 4th hole is designed to be used with knuckles that have the 4th hole. If your knuckle has 3 holes, get the steering arm with 3 holes (search PM008R). There's no reason to have a HOLE in your steering arm unless there's a stud to go in there! Works great in cross over applications on Jeeps. If you've got a GM/Chevy, the PM1011R is your best bet for a little extra height and length.
If you don't have knuckles, type "knuckle" into the search bar in the upper left of our website to find our D44 HD knuckles.
Specifications
Steering arm
Overall length (tip to tip): 8-1/2"
Pivot point to tie rod hole: 6"
Rise from top of the knuckle: 1"
Width (widest point): 2"
Tie rod hole taper: GM tie rod (ES2233/EX2234)

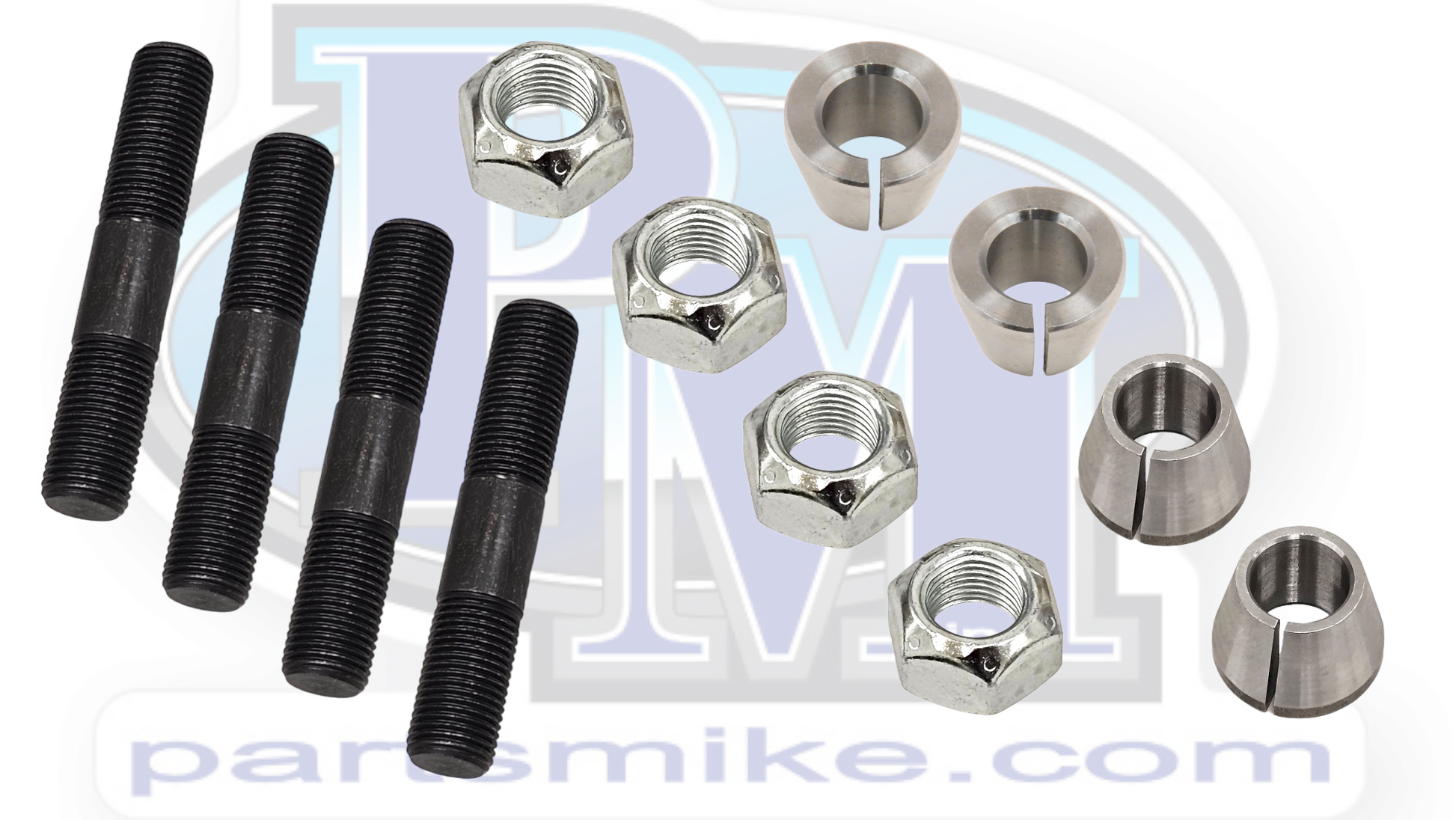

Stud
Overall dimensions: 3" length, 9/16"-18 threads
Thread lengths (approximate): short end = 0.90", long end 1.17"
