Parts Mike, Inc.

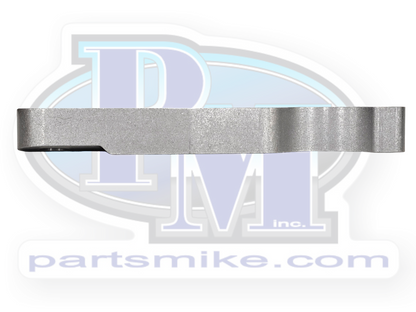

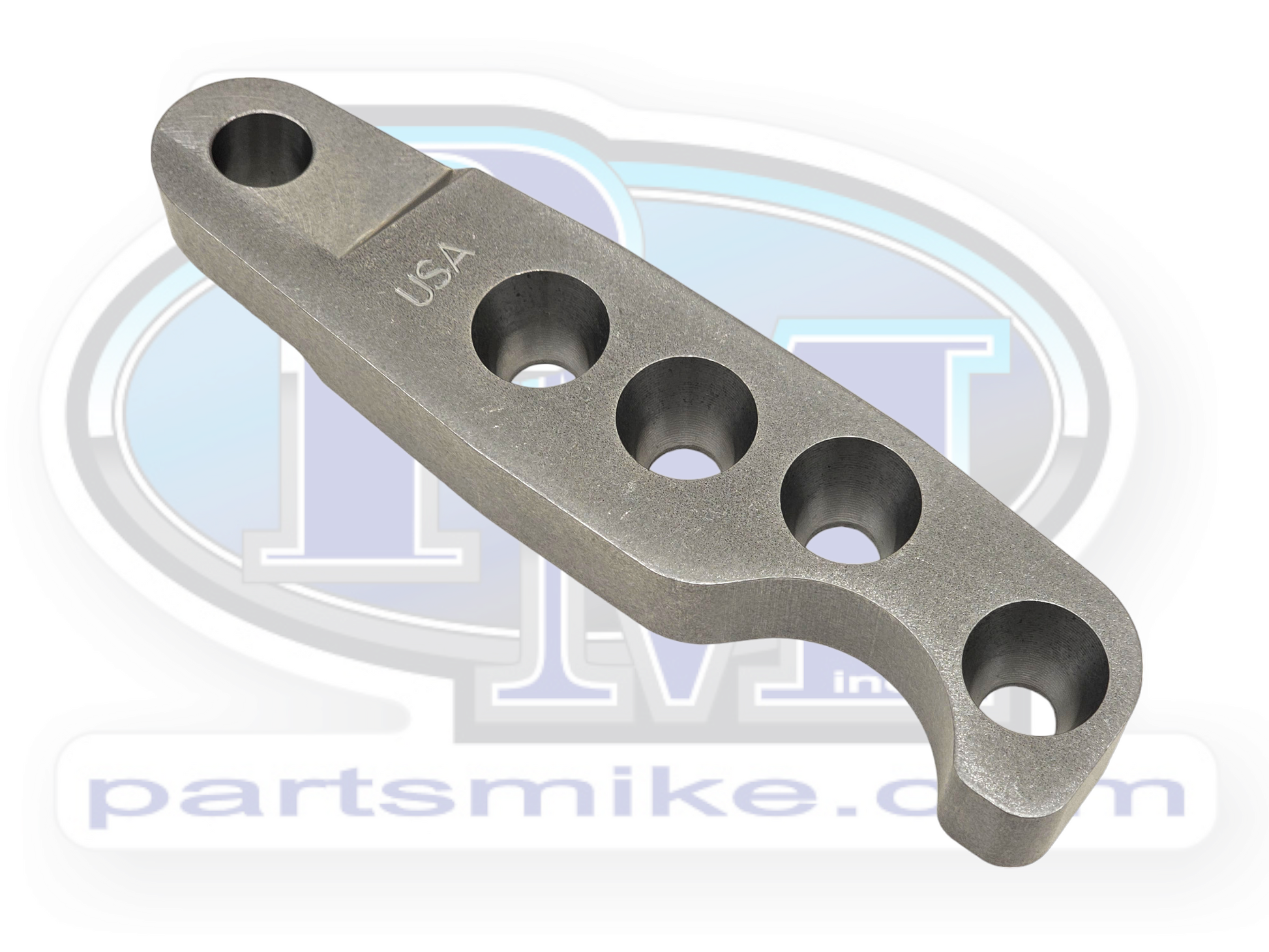

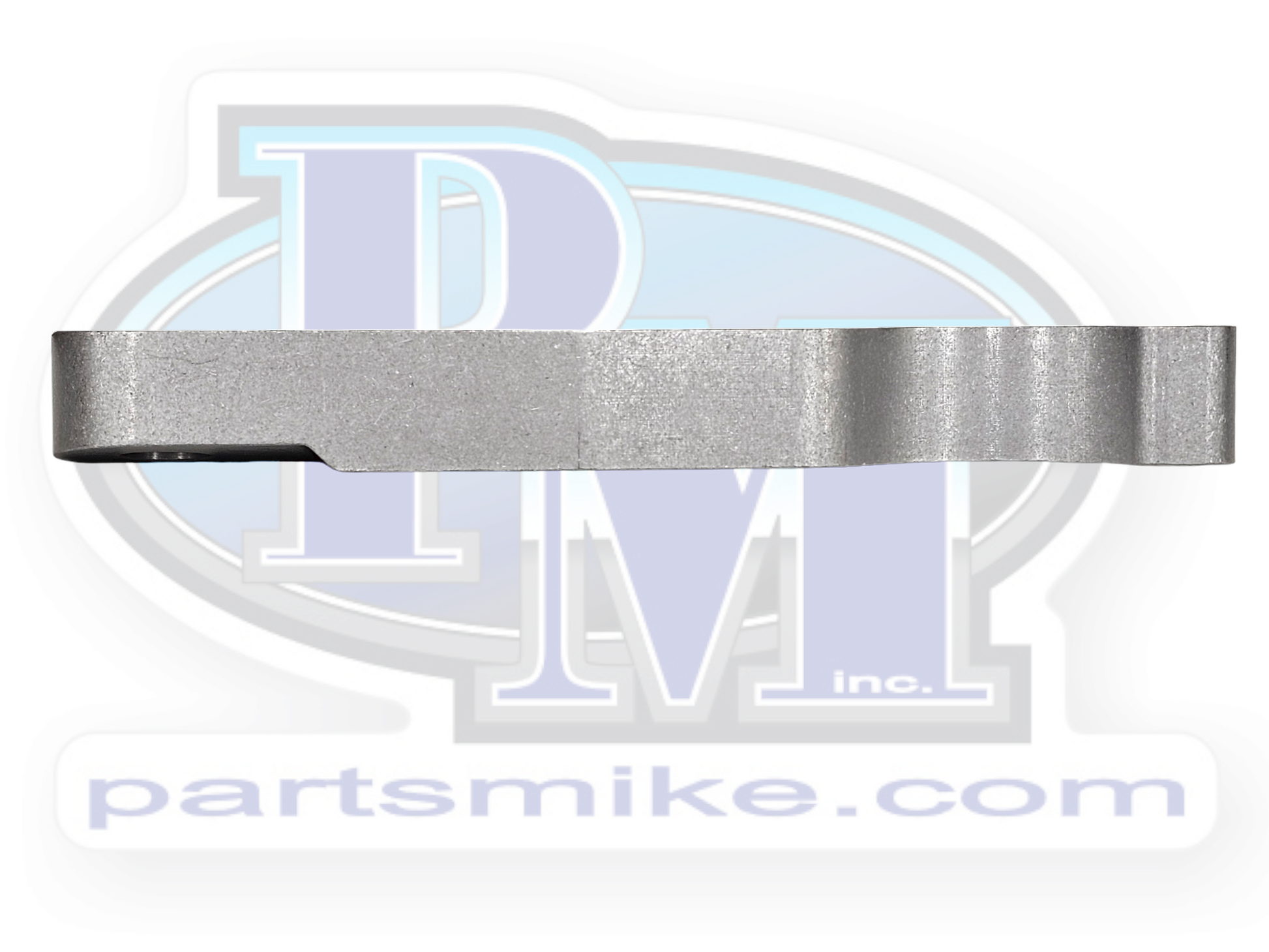

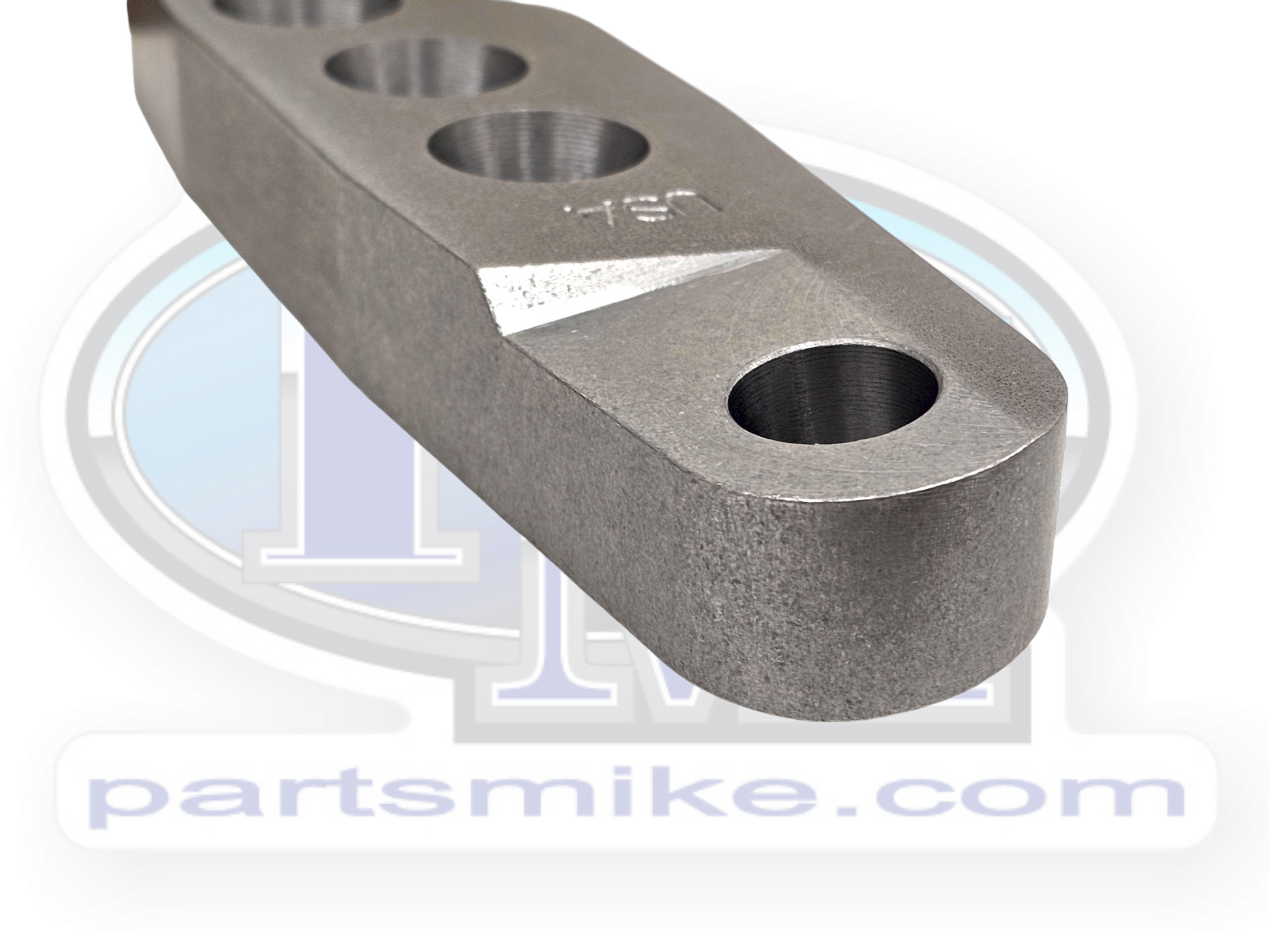

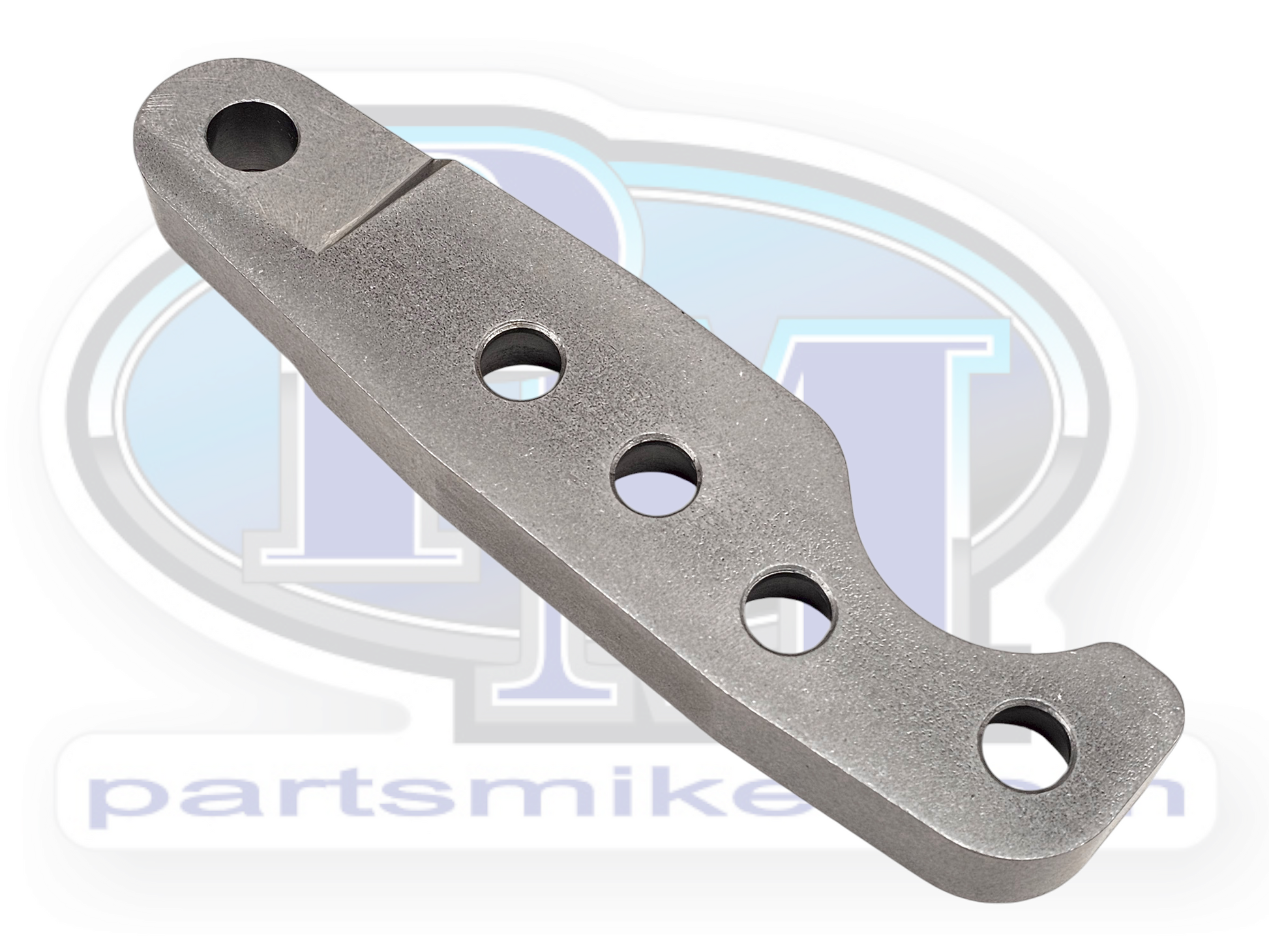

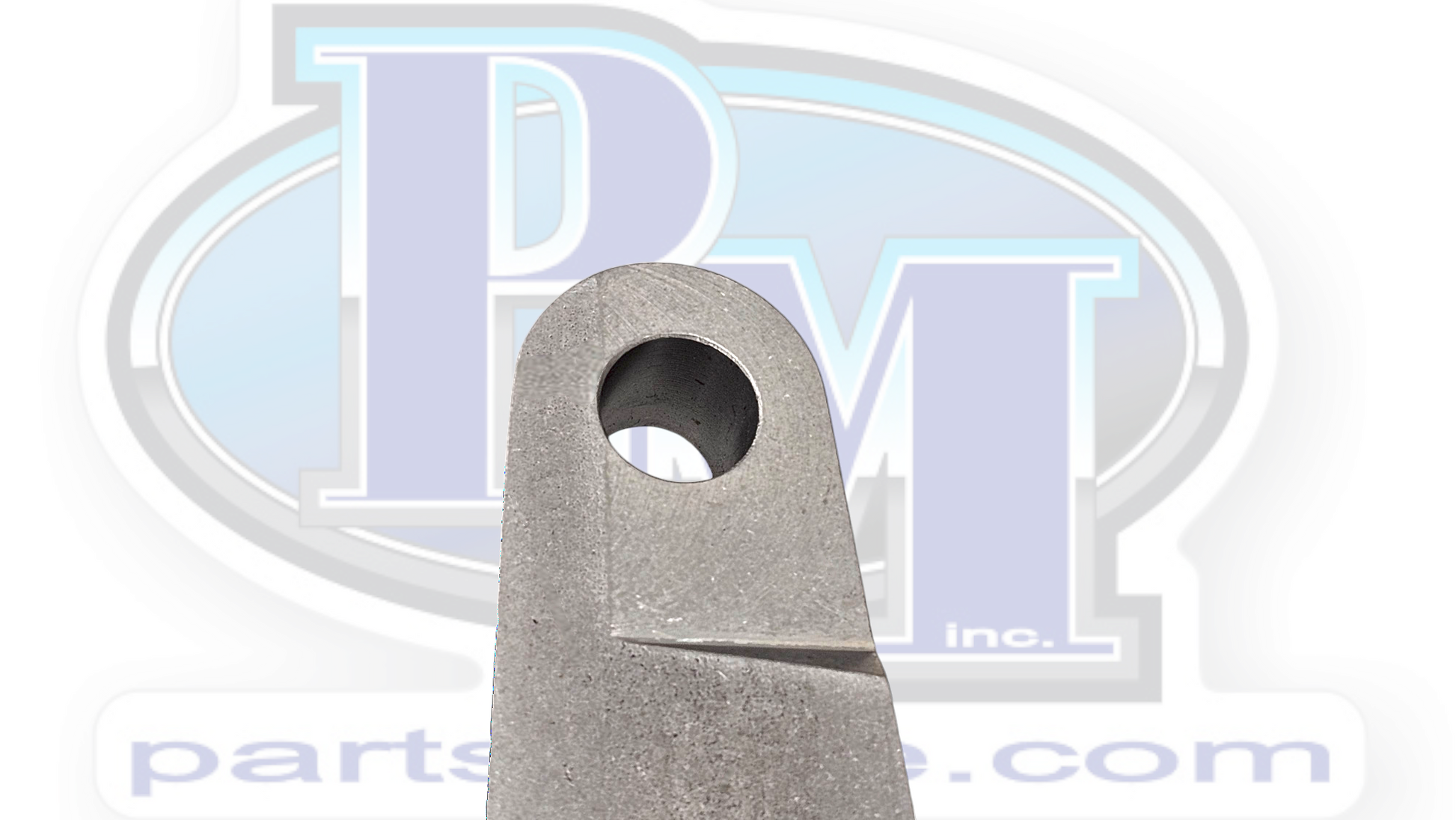

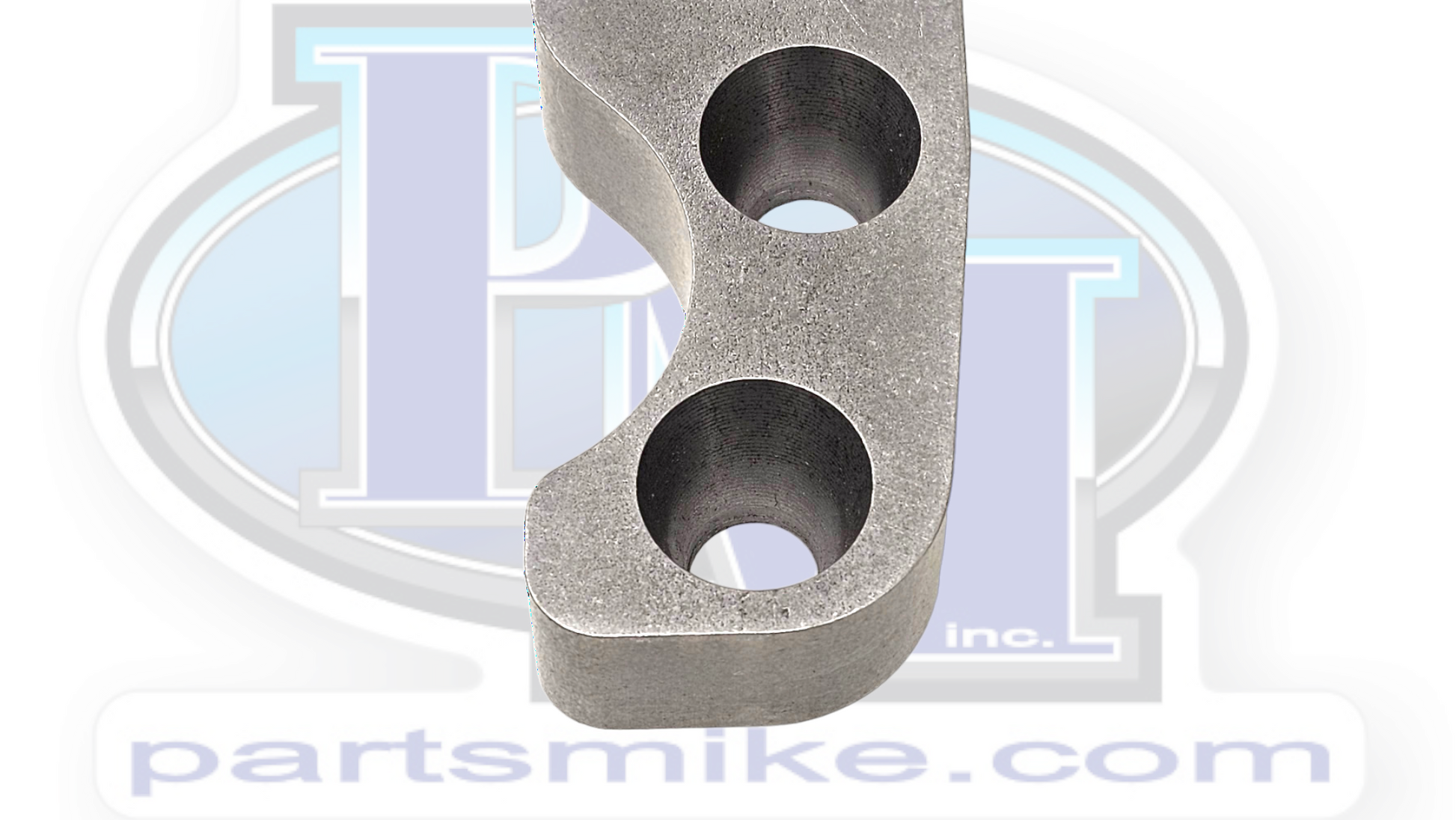

Dana 44, Steering Arm, 1", 4 Hole
Dana 44, Steering Arm, 1", 4 Hole
SKU:PM008RD
Regular price
$99.00 USD
Regular price
Sale price
$99.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
D44 cross over (passenger's side), 1" tall. This steering arm will lift the tie rod 1" from the top of the flat top knuckle, and has 4 holes for HD knuckles. The 4th hole is designed to be used with knuckles that have the 4th hole. If your knuckle has 3 holes, get the steering arm with 3 holes (search PM008R). There's no reason to have a HOLE in your steering arm unless there's a stud to go in there! Works great in cross over applications, or if you have a set knuckle set we offer both arms in our high steer section.
If you don't have knuckles, type "knuckle" into the search bar in the upper left of our website to find our D44 HD knuckle options.
Specifications
Steering arm
- Overall length (tip to tip): 8-1/2"
- Pivot point to tie rod hole: 6"
- Rise from top of the knuckle: 1"
- Width (widest point): 2"
- Tie rod hole taper: GM tie rod (ES2233/EX2234)
