Dana 44, Hardware Kit for 1 Steering Arm, 9/16"x3", 4 Hole

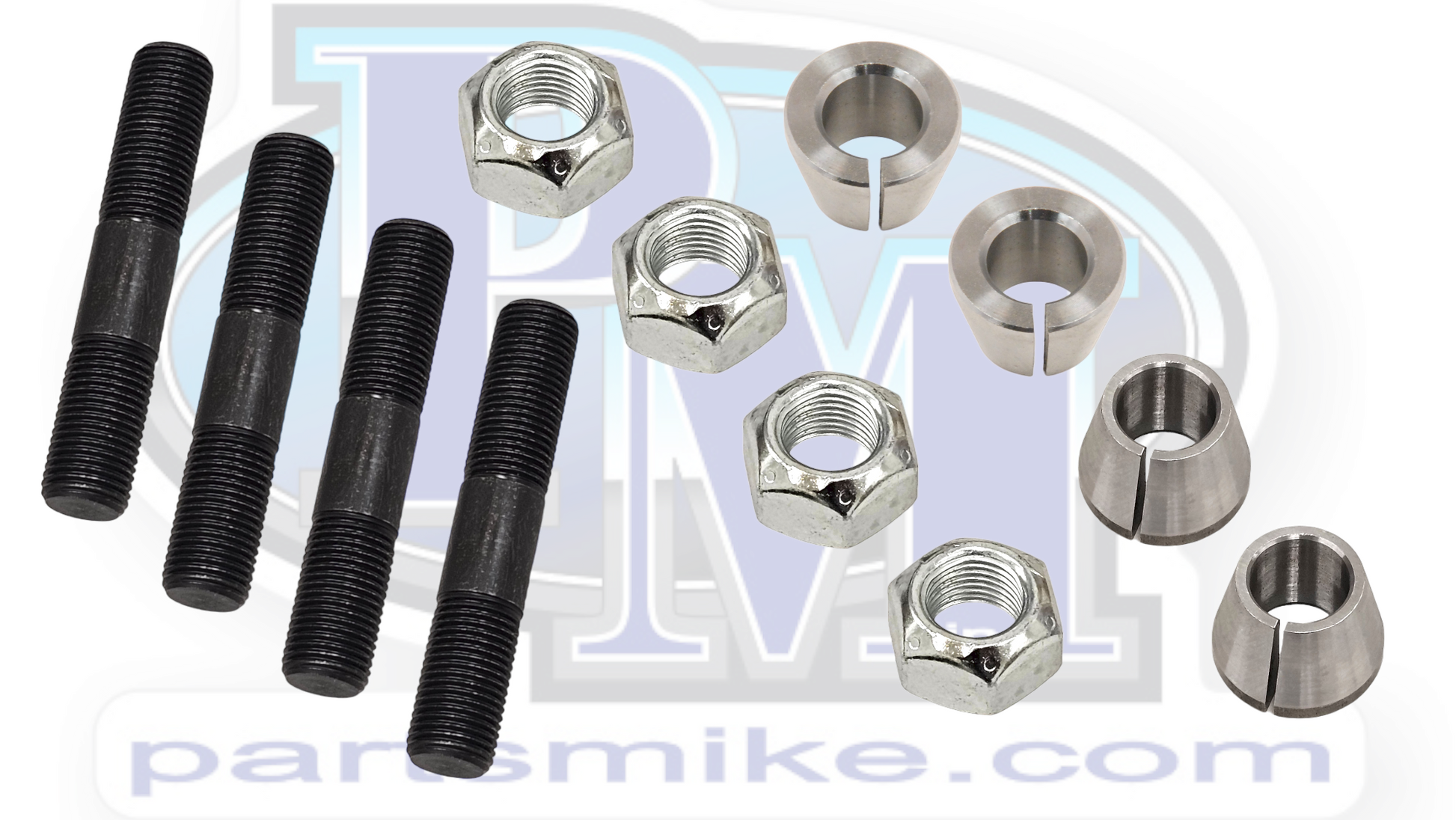

Dana 44 steering arm hardware kit for 4 hole steering arm.  The kit includes 4 studs, 4 conical washers, and 4 lock nuts. Each stud is 3" long, and 9-16"-18 on both ends (more specifications below).

WARNING:  If you are using a 1" spacer, or planning to, you'll need the longer studs (PM5137-4).  This kit requires that you have flat top knuckles on your axle already milled, drilled, and tapped for high steer.  Though this may seem like a given to most, a couple people will read this and it will be useful ; )

Specifications:

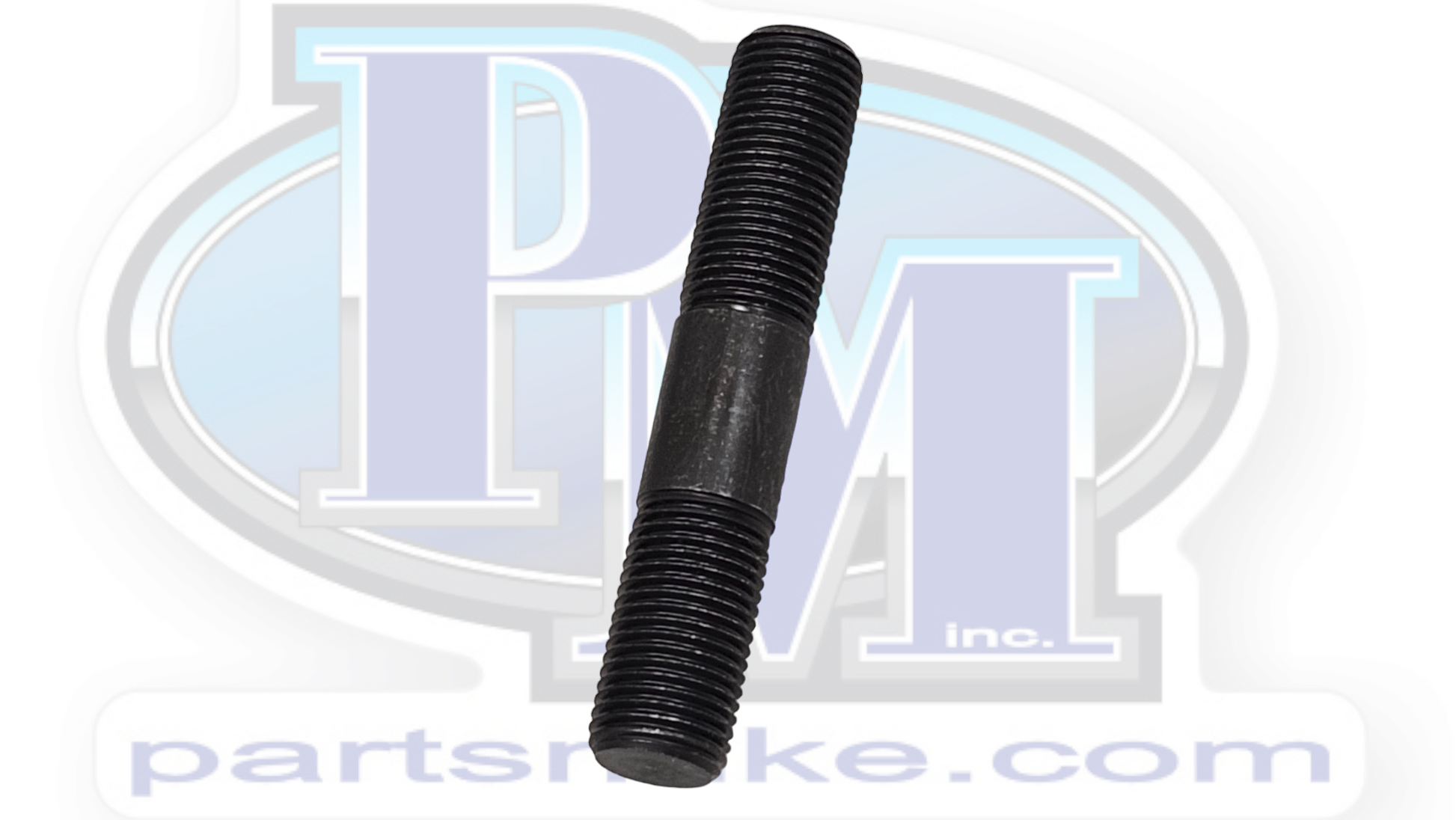

Stud

• Overall dimensions:  3" length, 9/16"-18 threads
• Thread lengths (approximate):  short end = 0.90", long end 1.17"
• Shank length:  0.93"

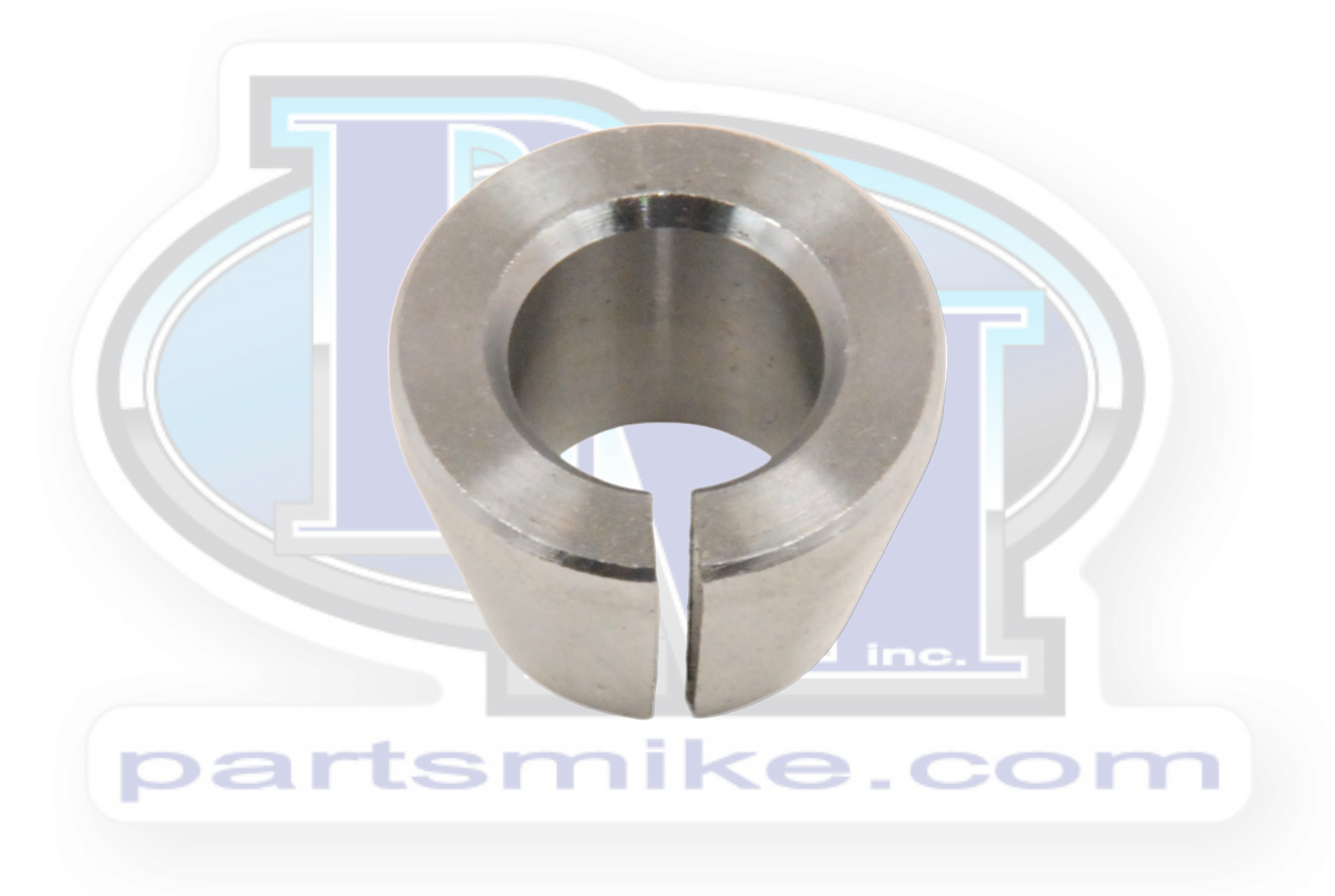

Conical washer

• Height:  0.69
• Hole ID:  9/16"

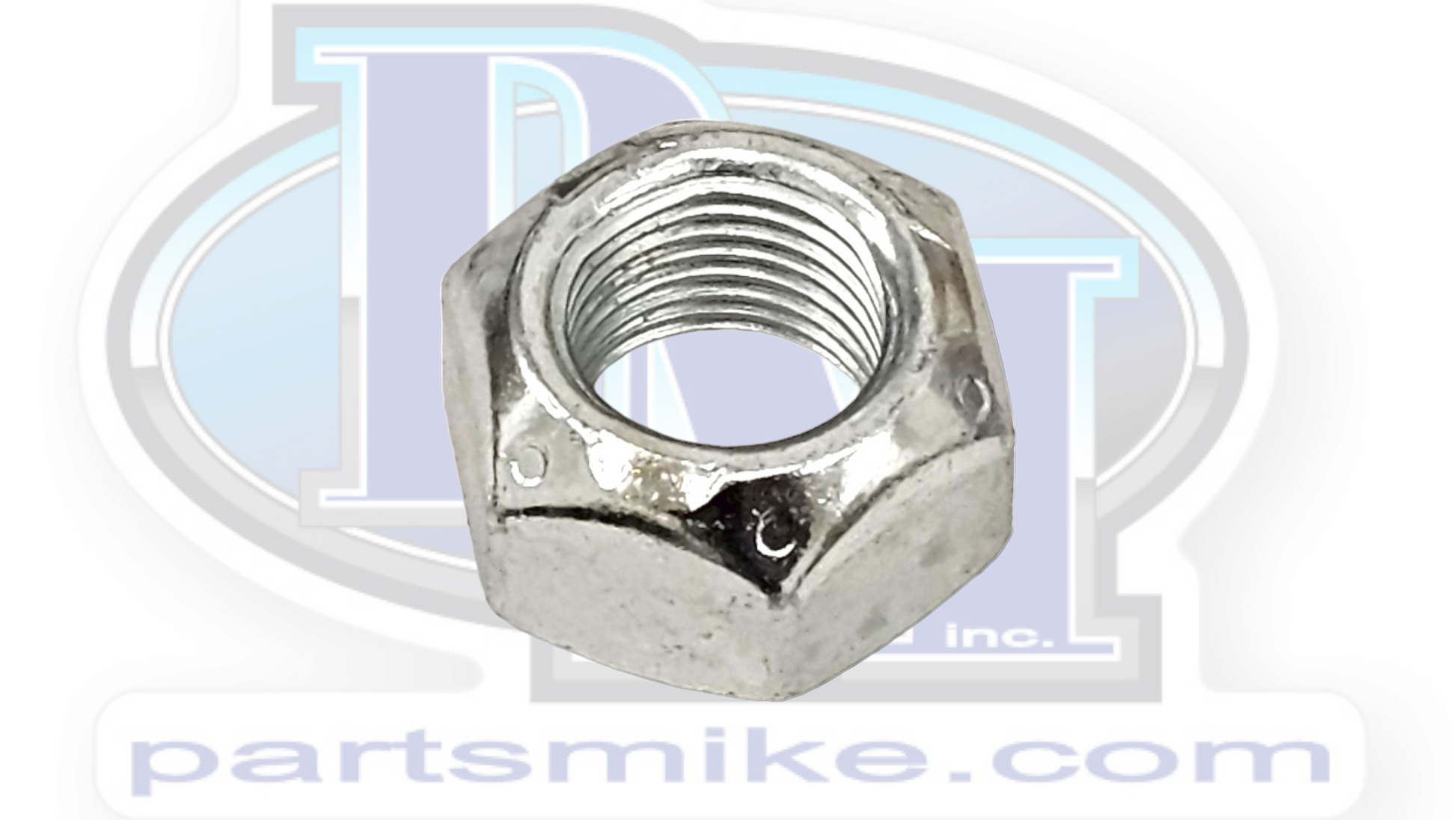

Lock nut

• Hole size:  9/16"-18
• Height:  0.48
• Locking mechanism:  Top lock (mechanical)
• Wrench size:  7/8"
