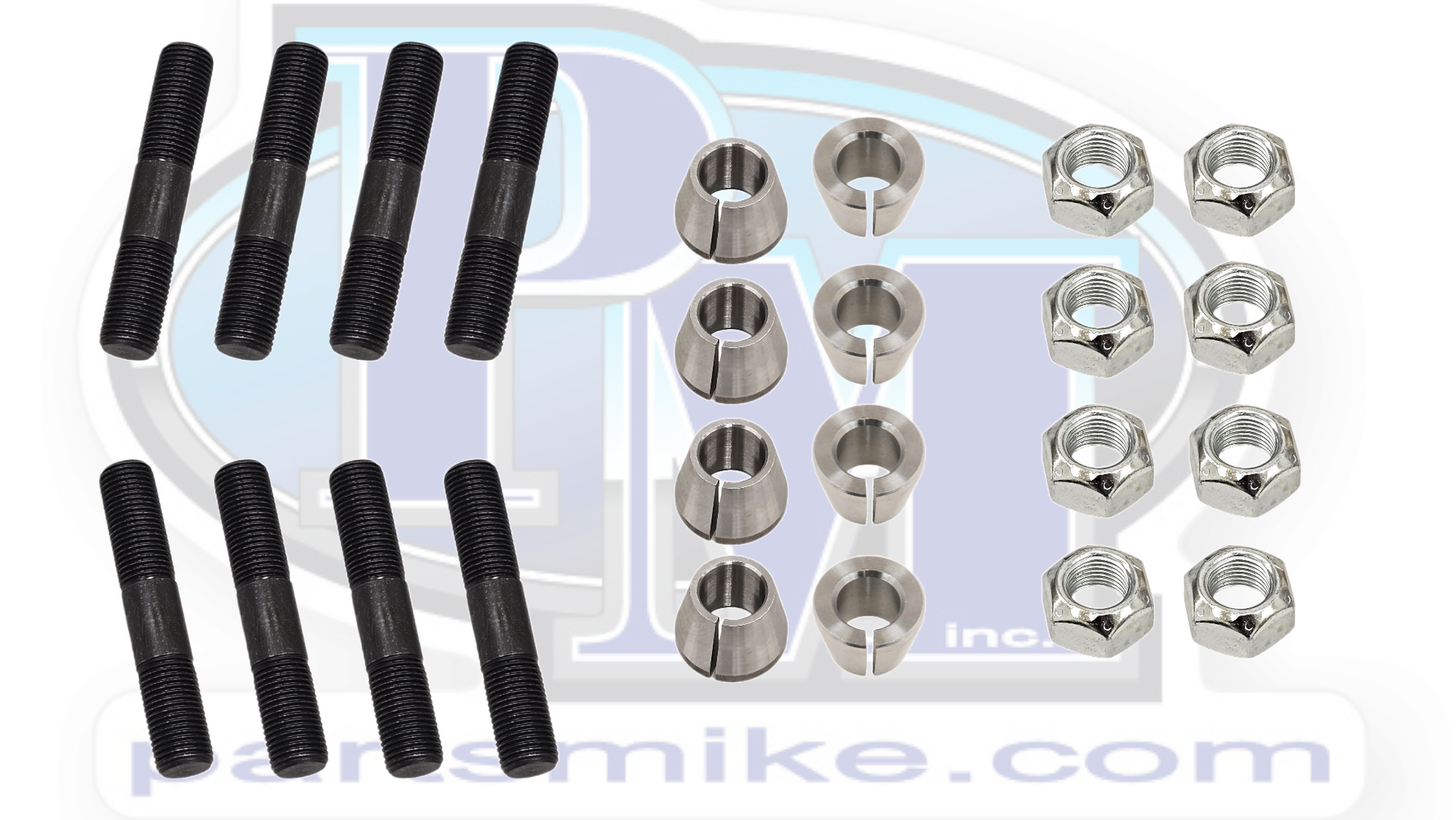

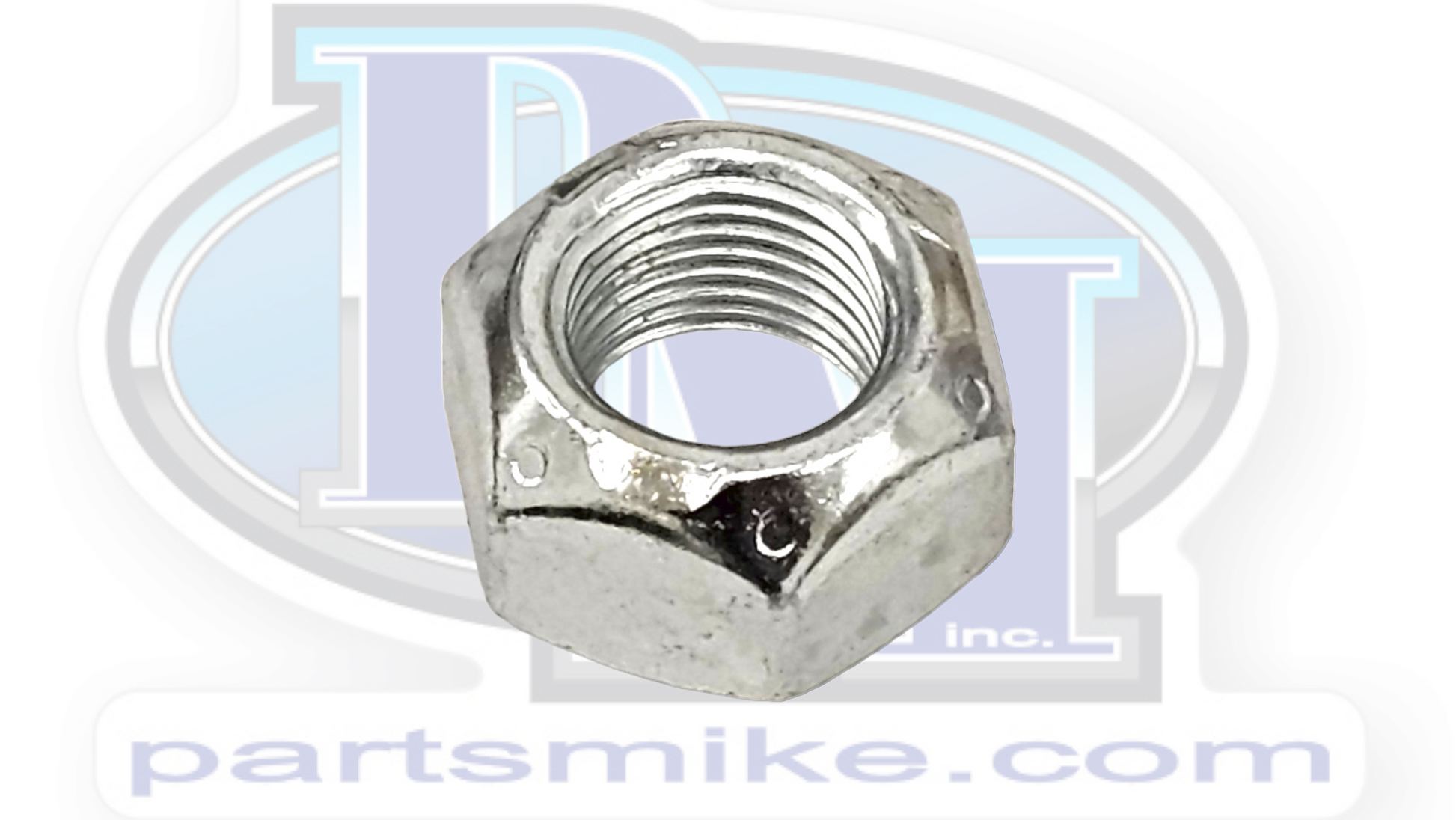

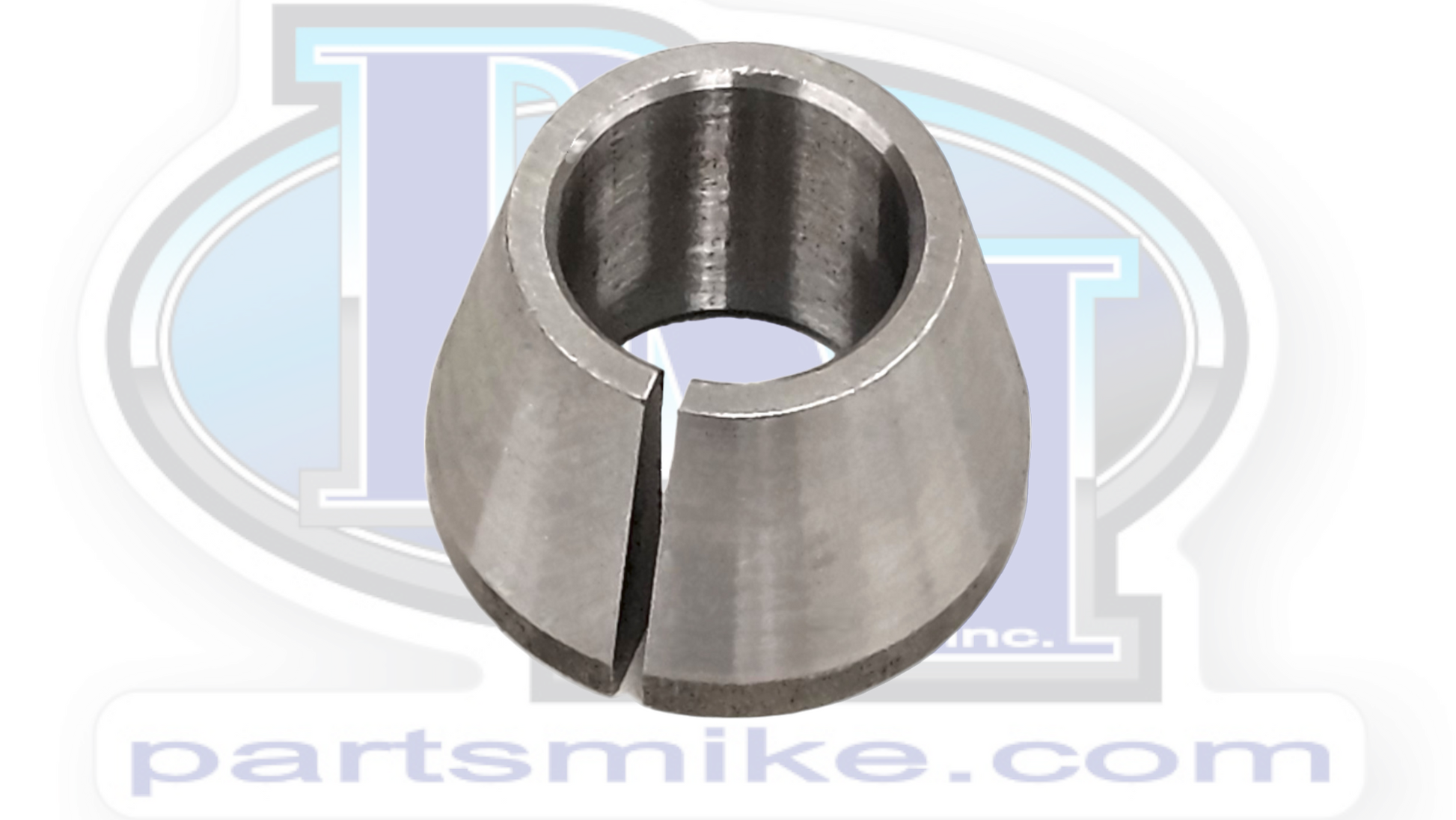

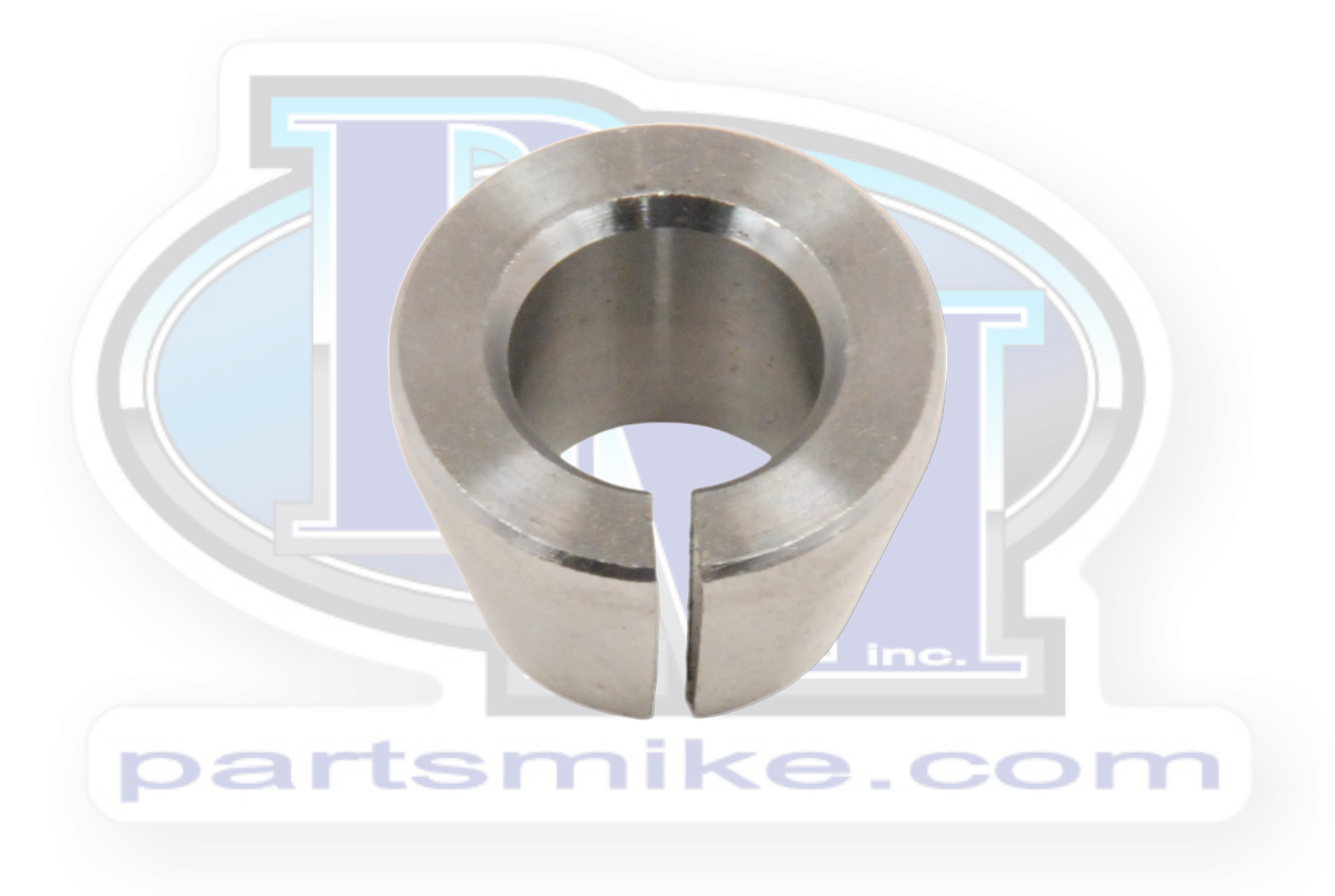

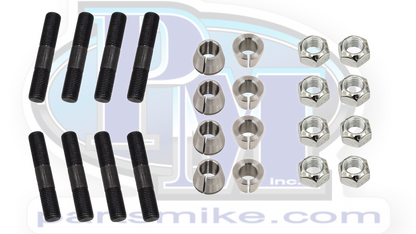

Dana 44 steering arm hardware kit for 4 hole steering arms. The kit includes 8 studs, 8 conical washers, and 8 lock nuts. Each stud is 3" long, and 9-16"-18 on both ends (more specifications below).
WARNING: If you are using a 1" spacer, or planning to, you'll need the longer studs (PM5137-4). This kit requires that you have flat top knuckles on your axle already milled, drilled, and tapped for high steer. Though this may seem like a given to most, a couple people will read this and it will be useful ; )
Specifications:

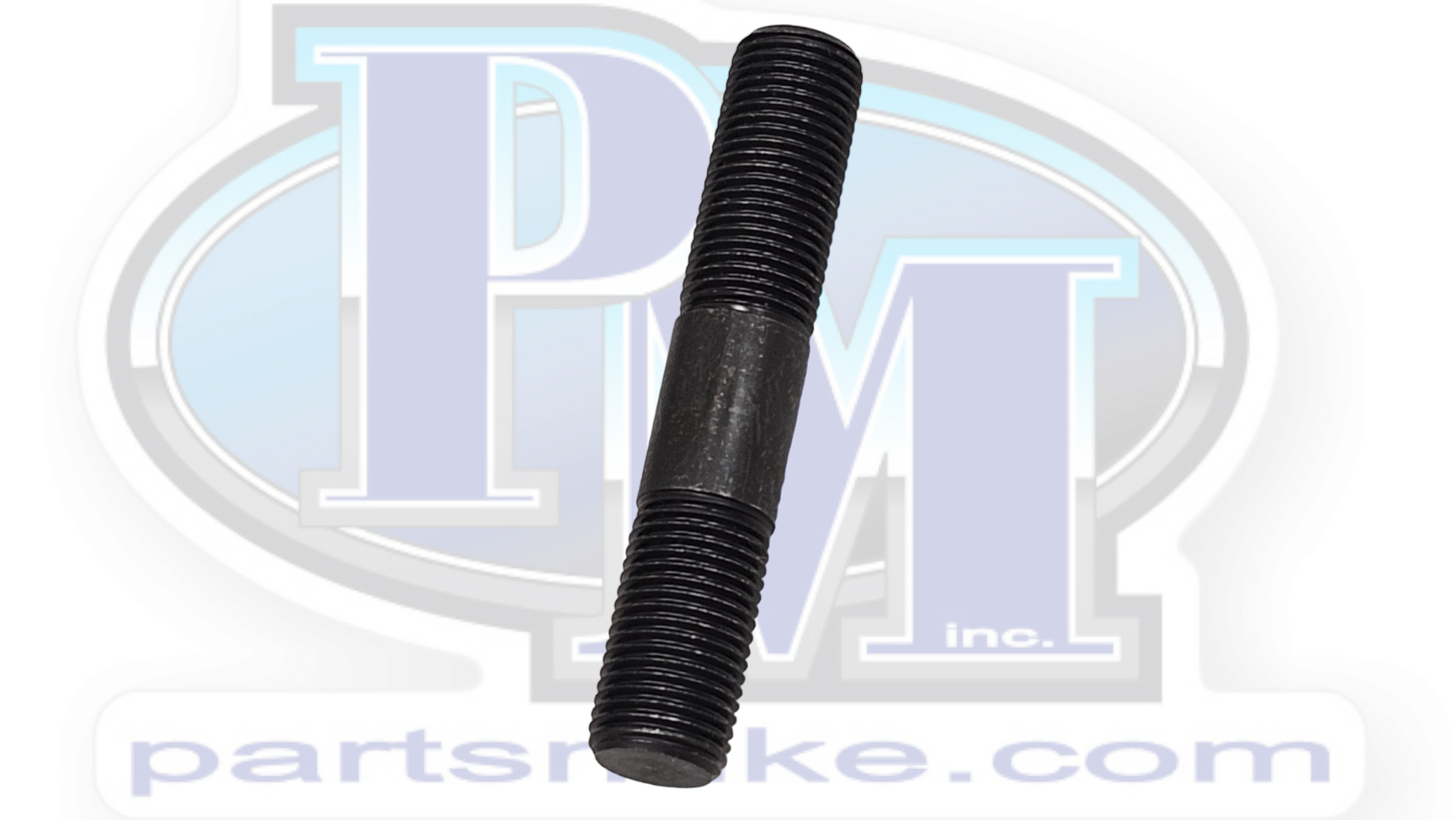

Stud
Overall dimensions: 3" length, 9/16"-18 threads
Thread lengths (approximate): short end = 0.90", long end 1.17"
