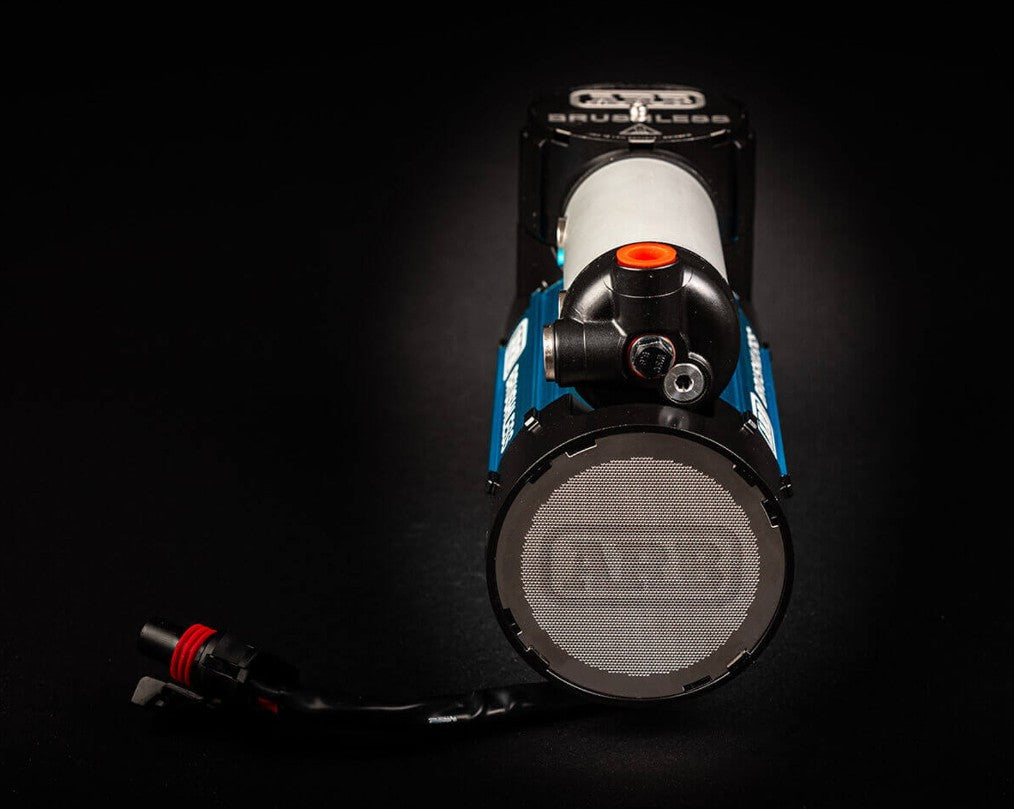

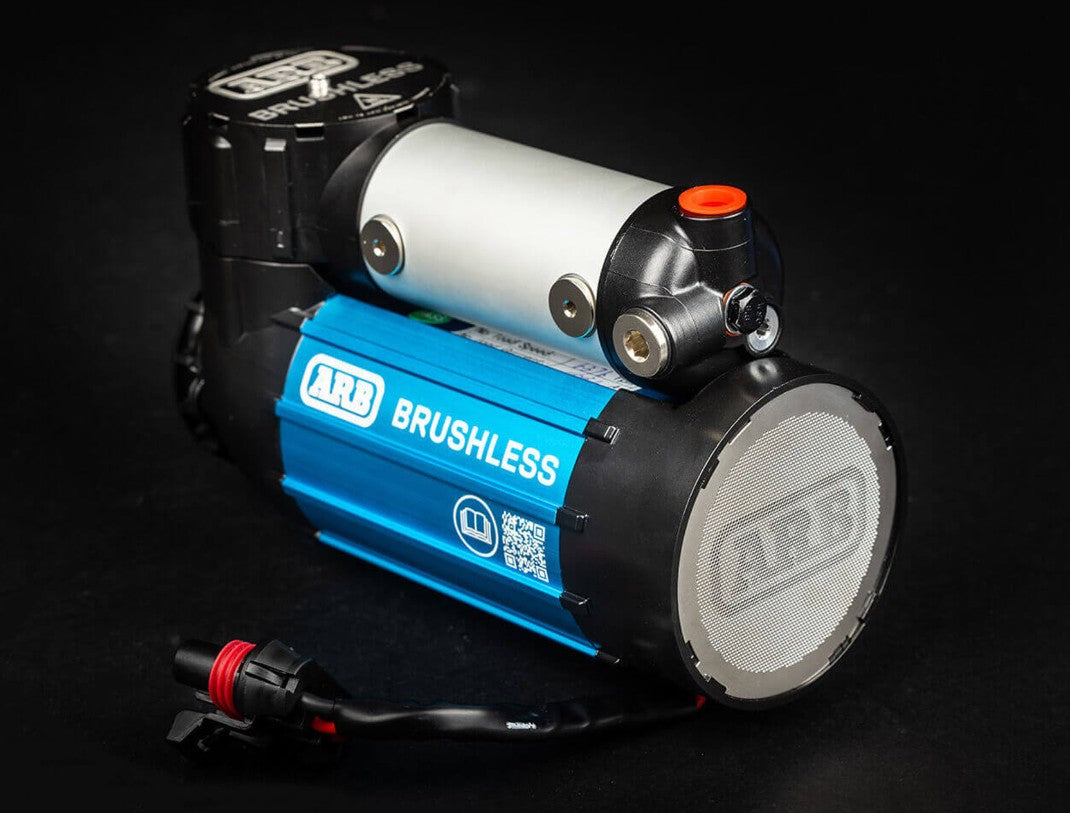

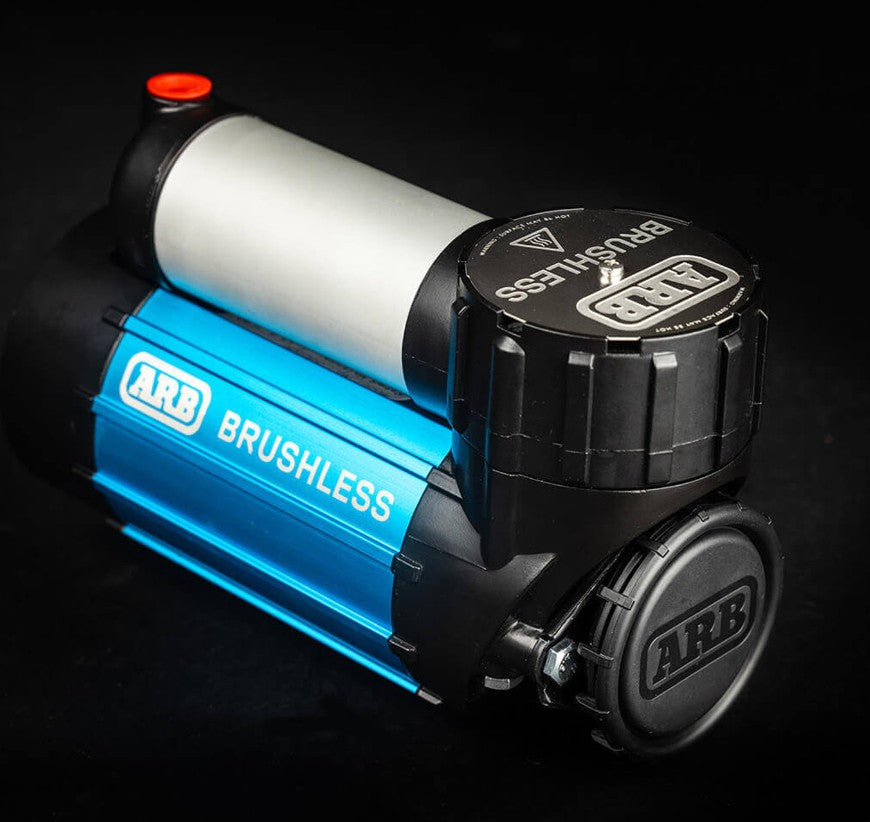

Air Compressor, Brushless, Single Motor, Onboard 12V, ARB

Air Compressor, Brushless, Single Motor, Onboard 12V, ARB

ARB 4x4

CKBLA12

$499.95 USD
$499.95 USD
Sale Sold out
Shipping calculated at checkout.

Listen up, gearheads. ARB just raised the bar with their new Brushless series of air compressors. These aren’t your run-of-the-mill compressors—they’re built for the tough stuff. With brushless electric motors, active cooling fans, and cutting-edge smart tech, this lineup delivers 50% more air output than ARB’s already top-of-the-line models. No more waiting around to inflate your tires or gear up your rig. And, they’re fully compatible with all ARB’s accessories, hose kits, and Air Lockers—so upgrading is as easy as swapping out your old setup. Less time spent inflating, more time for the real adventure. Quick air, more adventures. ARB’s got your back.

Product-only Dimensions

5.5" x 8.3" x 3.5" (6.8 Lbs)

Features & Benefits

  • 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring
  • Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
  • Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
  • Status Reporting – Live diagnostics via audio and visual alerts
  • Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
  • Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
  • Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
  • Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time

Specifications

  • Volts12V
  • Width 10.83 inch
  • Height 6.1 inch
  • Length 12.8 inch
  • Weight 9.5 lb
  • Prop 65No
  • Max Amp s45
  • IP Rating IP 67 Water Resistant
  • Duty Cycle100%
  • Air Flow 0PSI 4.59 CFM
  • Air Flow 29PSI 3.10 CFM
  • Design Brushless
  • Warranty3 YR
